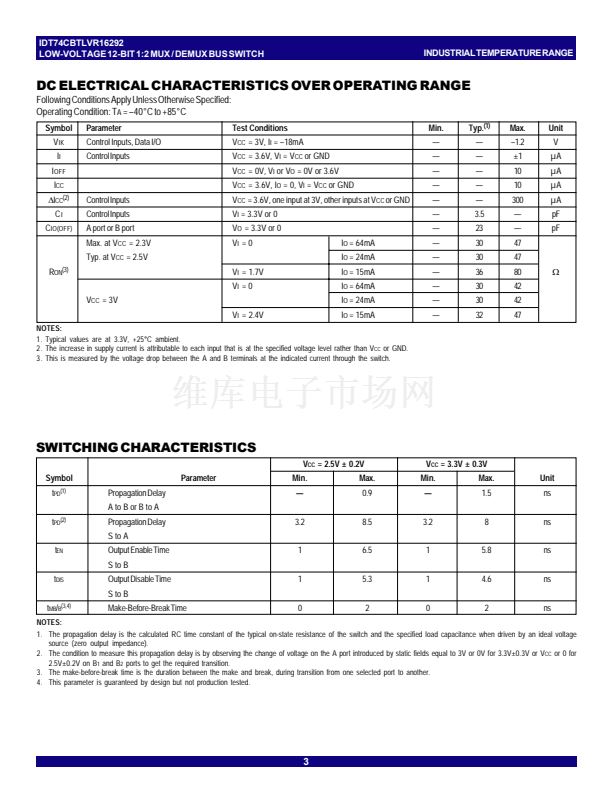

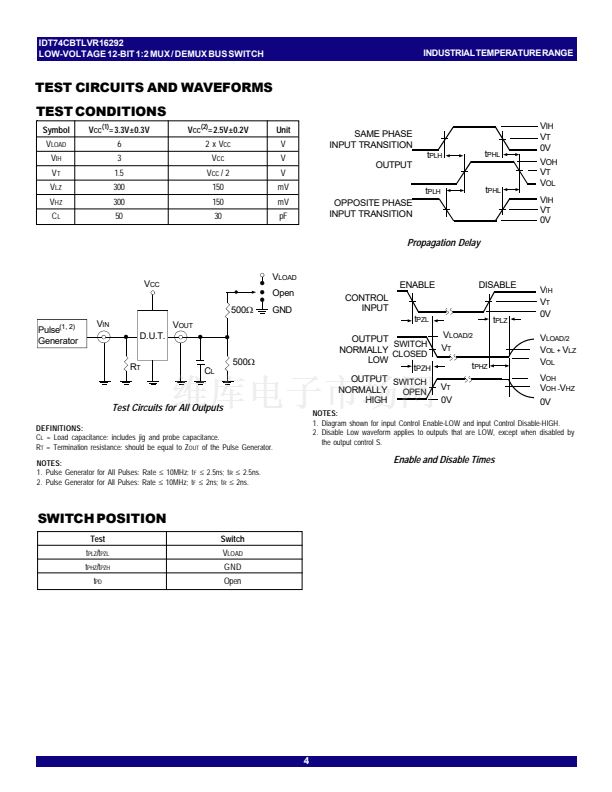

IDT74CBTLVR16292
LOW-VOLTAGE 12-BIT 1:2 MUX / DEMUX BUS SWITCH
INDUSTRIAL TEMPERATURE RANGE
LOW-VOLTAGE 12-BIT 1:2
MUX / DEMUX BUS SWITCH
WITH INTERNAL PULL DOWN
RESISTORS
FEATURES:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
IDT74CBTLVR16292
DESCRIPTION:
Isolation Under Power-Off Conditions
Make-before-break feature
Over-voltage tolerant
Internal 500鈩?pull-down resistor to GND
鈩?/div>
Both A and B ports have 25鈩?series dampening resistors
鈩?/div>
Latch-up performance exceeds 100mA
V
CC
= 2.3V - 3.6V, normal range
ESD >2000V per MIL-STD-883, Method 3015; >200V using
machine model (C = 200pF, R = 0)

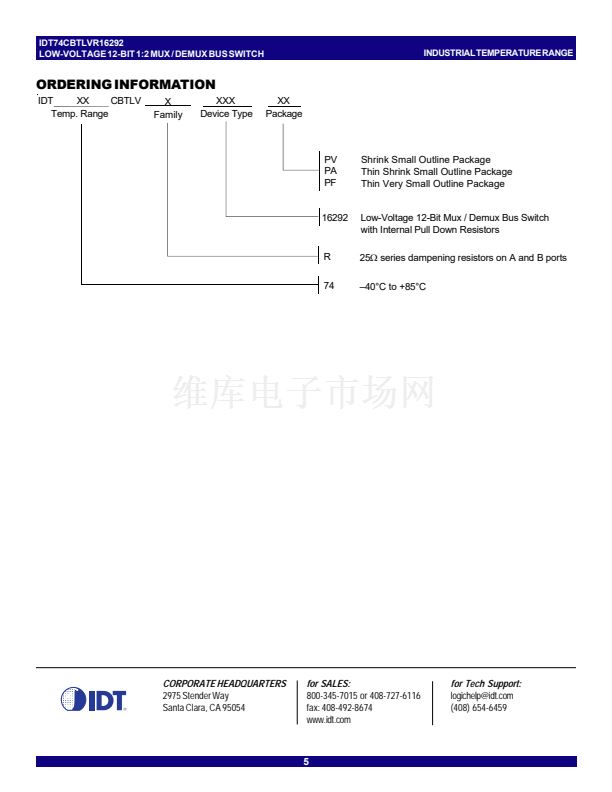

鈥?Available in SSOP, TSSOP, and TVSOP packages
The CBTLVR16292 is a single 12-bit multiplexing / demultiplexing bus
switch, which provides high speed switching. Both A and B ports have 25鈩?/div>
series dampening resistors to minimize undershoot, reflection noise, and
charge sharing effects. The demultiplexer side has a 500鈩?resistor
termination to GND to eliminate floating nodes.

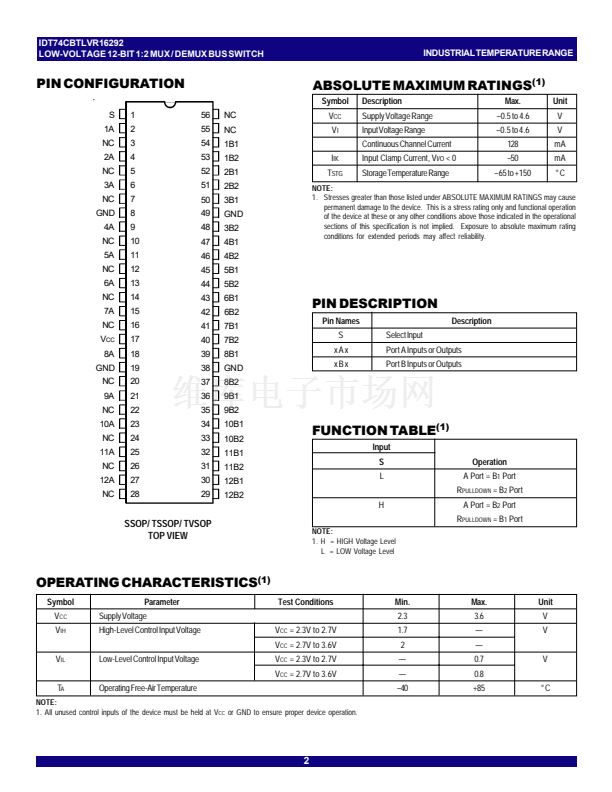

When the select (S) input is low, the A port is connected to the B1 port,
and the R pulldown is connected to the B2 port. Similarly, when the S input
is high, A port is connected to B2 port and the R pulldown is connected to
B1 port.
APPLICATIONS:
鈥?3.3V High Speed Bus Switching and Bus Isolation
鈥?Resource sharing

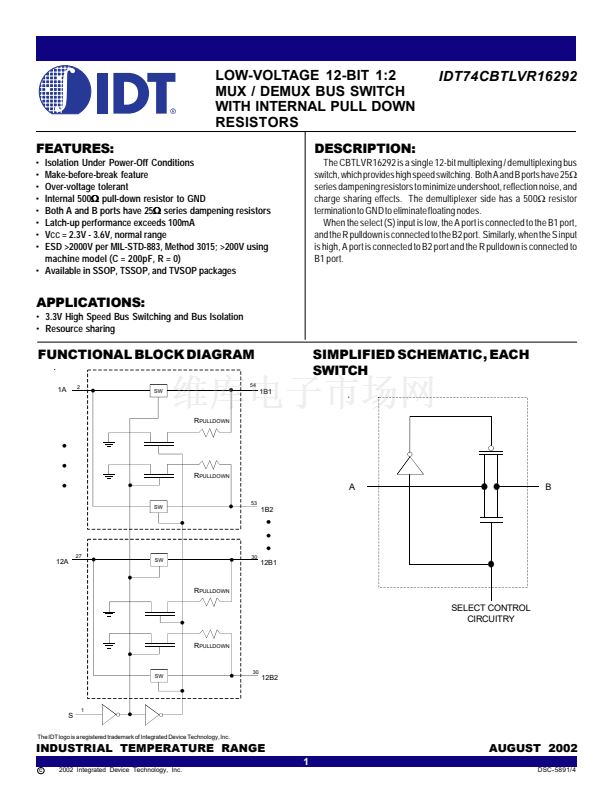

FUNCTIONAL BLOCK DIAGRAM
1A
2
54
SW
SIMPLIFIED SCHEMATIC, EACH
SWITCH
1B1
R
PULLDOWN
R
PULLDOWN
A
SW
53
B
1B2
12A
27
SW
30
12B1
R
PULLDOWN
SELECT CONTROL
CIRCUITRY
R
PULLDOWN
SW
30
12B2
S
1
INDUSTRIAL TEMPERATURE RANGE
1
c
2002 Integrated Device Technology, Inc.
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
AUGUST 2002
DSC-5891/4
