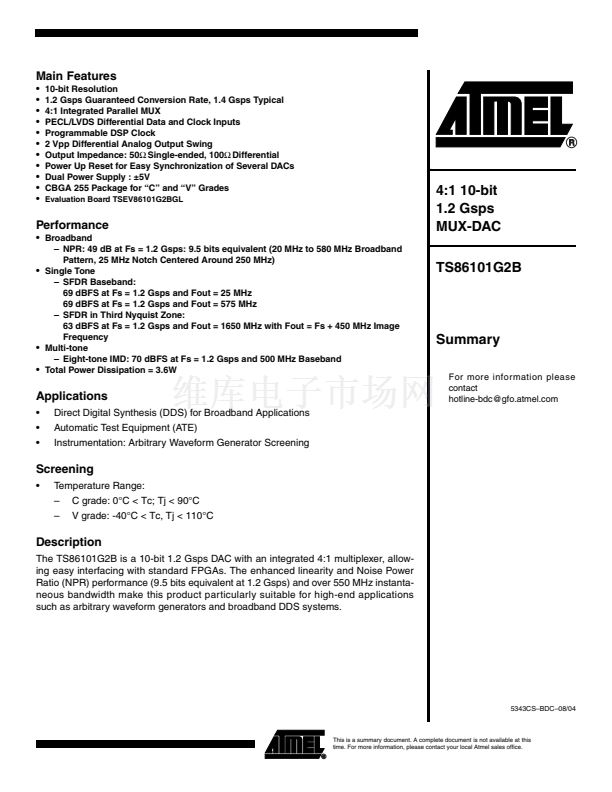

Main Features

鈥?/div>

10-bit Resolution

1.2 Gsps Guaranteed Conversion Rate, 1.4 Gsps Typical

4:1 Integrated Parallel MUX

PECL/LVDS Differential Data and Clock Inputs

Programmable DSP Clock

2 Vpp Differential Analog Output Swing

Output Impedance: 50鈩?Single-ended, 100鈩?Differential

Power Up Reset for Easy Synchronization of Several DACs

Dual Power Supply : 鹵5V

CBGA 255 Package for 鈥淐鈥?and 鈥淰鈥?Grades

Evaluation Board TSEV86101G2BGL

Performance

鈥?/div>

Broadband

鈥?NPR: 49 dB at Fs = 1.2 Gsps: 9.5 bits equivalent (20 MHz to 580 MHz Broadband

Pattern, 25 MHz Notch Centered Around 250 MHz)

鈥?/div>

Single Tone

鈥?SFDR Baseband:

69 dBFS at Fs = 1.2 Gsps and Fout = 25 MHz

69 dBFS at Fs = 1.2 Gsps and Fout = 575 MHz

鈥?SFDR in Third Nyquist Zone:

63 dBFS at Fs = 1.2 Gsps and Fout = 1650 MHz with Fout = Fs + 450 MHz Image

Frequency

鈥?/div>

Multi-tone

鈥?Eight-tone IMD: 70 dBFS at Fs = 1.2 Gsps and 500 MHz Baseband

鈥?/div>

Total Power Dissipation = 3.6W

4:1 10-bit

1.2 Gsps

MUX-DAC

TS86101G2B

Summary

For more information please

contact

hotline-bdc@gfo.atmel.com

Applications

鈥?/div>

Direct Digital Synthesis (DDS) for Broadband Applications

Automatic Test Equipment (ATE)

Instrumentation: Arbitrary Waveform Generator Screening

Screening

鈥?/div>

Temperature Range:

鈥?/div>

C grade: 0擄C < Tc; Tj < 90擄C

V grade: -40擄C < Tc, Tj < 110擄C

Description

The TS86101G2B is a 10-bit 1.2 Gsps DAC with an integrated 4:1 multiplexer, allow-

ing easy interfacing with standard FPGAs. The enhanced linearity and Noise Power

Ratio (NPR) performance (9.5 bits equivalent at 1.2 Gsps) and over 550 MHz instanta-

neous bandwidth make this product particularly suitable for high-end applications

such as arbitrary waveform generators and broadband DDS systems.

5343CS鈥揃DC鈥?8/04

This is a summary document. A complete document is not available at this

time. For more information, please contact your local Atmel sales office.
