TS861AILT Datasheet

  • TS861AILT

  • COMPARATOR, SGL, RAIL, TO, RAIL, SOT23-5; Comparator Type:Bi...

  • 15頁

  • STMicroelectronics   STMicroelectronics

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

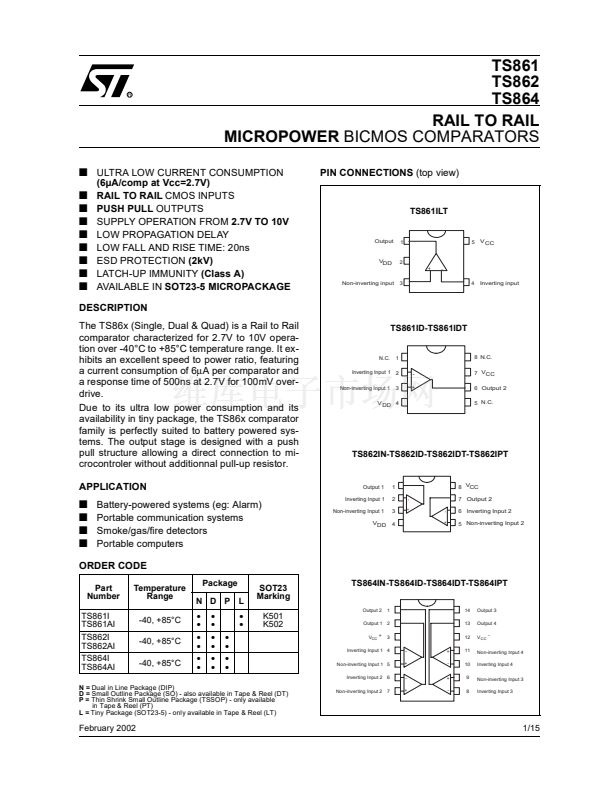

TS861
TS862
TS864
RAIL TO RAIL
MICROPOWER
BICMOS COMPARATORS
s
ULTRA LOW CURRENT CONSUMPTION
s
s
s
s
s
s
s
s
(6碌A(chǔ)/comp at Vcc=2.7V)
RAIL TO RAIL
CMOS INPUTS
PUSH PULL
OUTPUTS
SUPPLY OPERATION FROM
2.7V TO 10V
LOW PROPAGATION DELAY
LOW FALL AND RISE TIME: 20ns
ESD PROTECTION
(2kV)
LATCH-UP IMMUNITY
(Class A)
AVAILABLE IN
SOT23-5 MICROPACKAGE
PIN CONNECTIONS
(top view)
TS861ILT
Output
1
5
V CC
VDD
2
Non-inverting input
3
4
Inverting input
DESCRIPTION
The TS86x (Single, Dual & Quad) is a Rail to Rail
comparator characterized for 2.7V to 10V opera-
tion over -40擄C to +85擄C temperature range. It ex-
hibits an excellent speed to power ratio, featuring
a current consumption of 6碌A(chǔ) per comparator and
a response time of 500ns at 2.7V for 100mV over-
drive.
Due to its ultra low power consumption and its
availability in tiny package, the TS86x comparator
family is perfectly suited to battery powered sys-
tems. The output stage is designed with a push
pull structure allowing a direct connection to mi-
crocontroler without additionnal pull-up resistor.
APPLICATION
TS861ID-TS861IDT
N.C.
Inverting Input 1
Non-inverting Input 1
1
2
3
-
+
8 N.C.
7 VCC
6 Output 2
5 N.C.
V DD 4
TS862IN-TS862ID-TS862IDT-TS862IPT
Output 1
Inverting Input 1
Non-inverting Input 1
VDD
1
2
3
4
-
+
-
+
8 VCC
7 Output 2
6 Inverting Input 2
5 Non-inverting Input 2
s
s
s
s
Battery-powered systems (eg: Alarm)
Portable communication systems
Smoke/gas/fire detectors
Portable computers
ORDER CODE
Part
Number
TS861I
TS861AI
TS862I
TS862AI
TS864I
TS864AI
Temperature
Range
-40, +85擄C
-40, +85擄C
-40, +85擄C
Package
N D P
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
L
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
SOT23
Marking
K501
K502
TS864IN-TS864ID-TS864IDT-TS864IPT
Output 2
1
14
13
12
-
+
-
+
+
-
+
-
11
10
9
8
Output 3
Output 4
V
CC
-
Non-inverting Input 4
Inverting Input 4
Non-inverting Input 3
Inverting Input 3
Output 1 2
V
CC
+
3
Inverting Input 1 4
Non-inverting Input 1 5
Inverting Input 2 6
N =

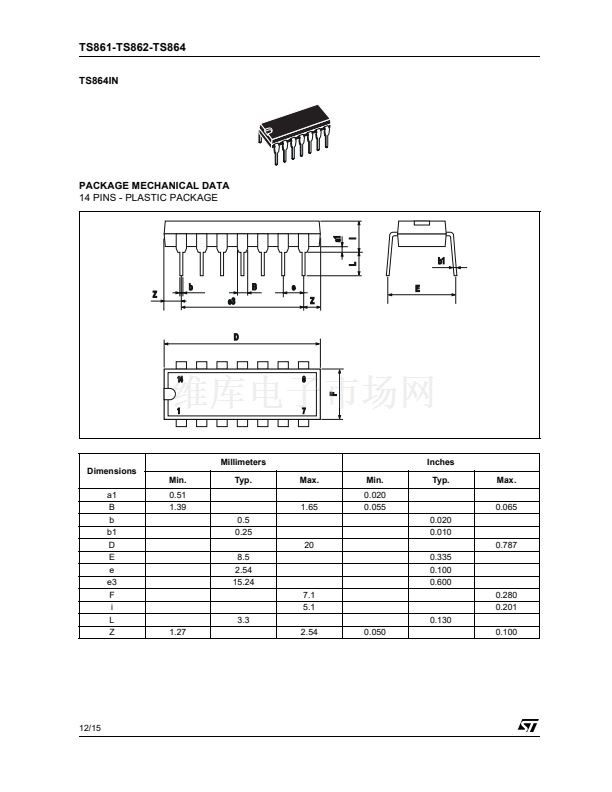

Dual in Line Package (DIP)
D =

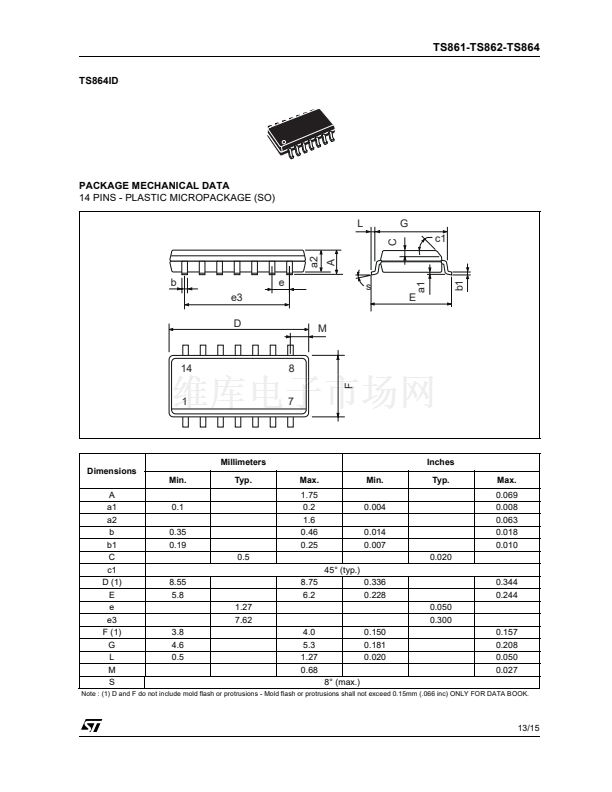

Small Outline Package (SO) - also available in Tape & Reel (DT)
P =

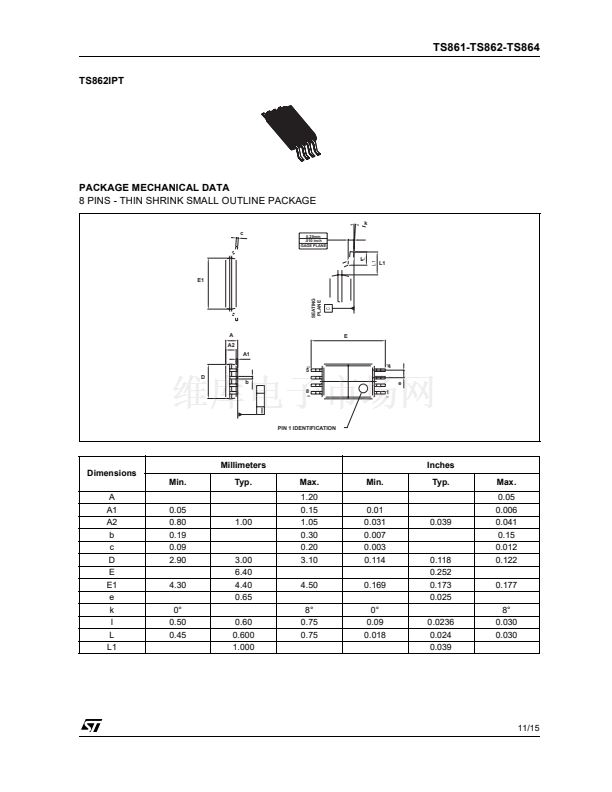

Thin Shrink Small Outline Package (TSSOP) - only available
in Tape & Reel (PT)
L =
Tiny Package (SOT23-5) - only available in Tape & Reel (LT)
Non-inverting Input 2 7
February 2002
1/15

TS861AILT 產品屬性

  • TS861 View All Specifications

  • 1

  • 集成電路 (IC)

  • 線性 - 比較器

  • -

  • 通用

  • 1

  • 推挽式

  • 2.7 V ~ 10 V

  • 7mV @ 5V

  • 300pA @ 5V

  • -

  • 16µA

  • 70dB CMRR

  • 2µs

  • -

  • -40°C ~ 85°C

  • SC-74A，SOT-753

  • 表面貼裝

  • Digi-Reel®

  • 497-2308-6
