STPC INDUSTRIAL

PC Compatible Embedded Microprocessor

s

s

s

s

s

s

s

s

s

s

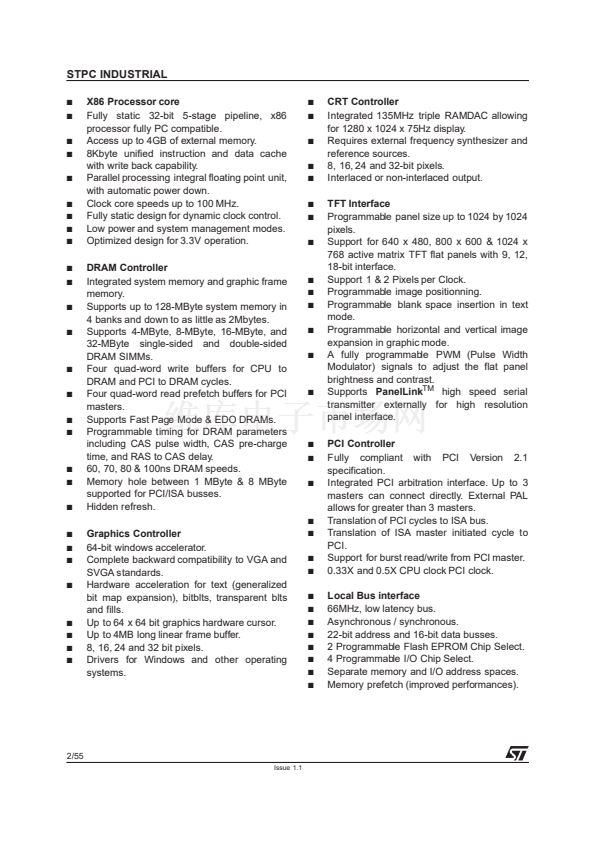

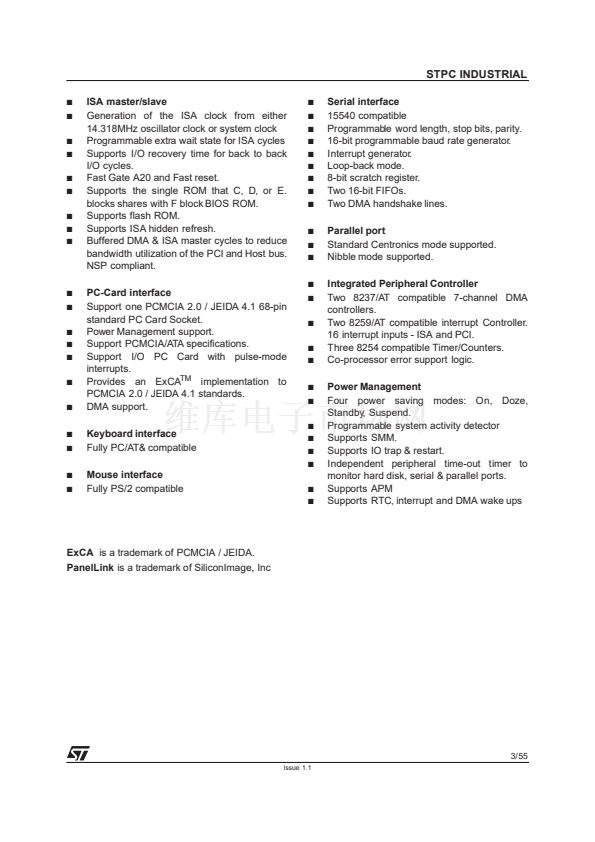

POWERFUL X86 PROCESSOR

64-BIT BUS ARCHITECTURE

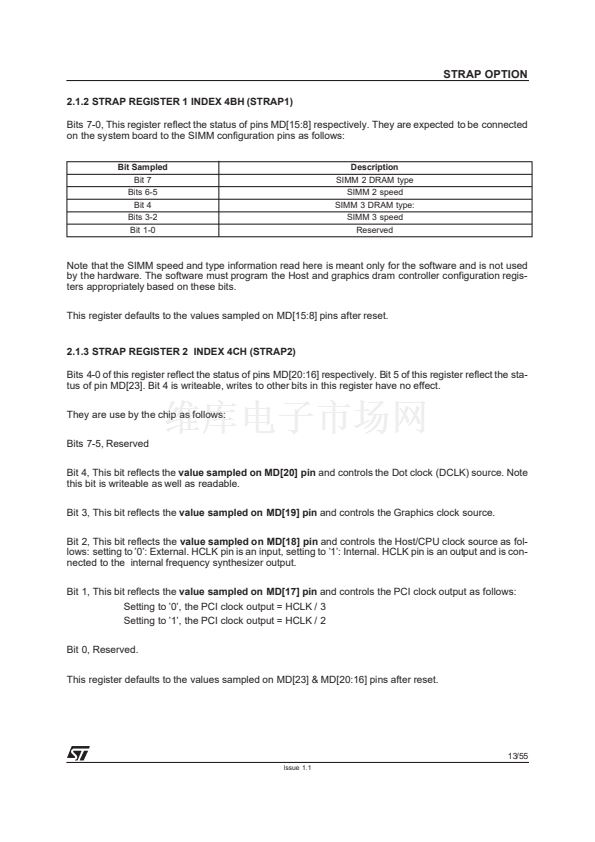

64-BIT 66MHz DRAM CONTROLLER

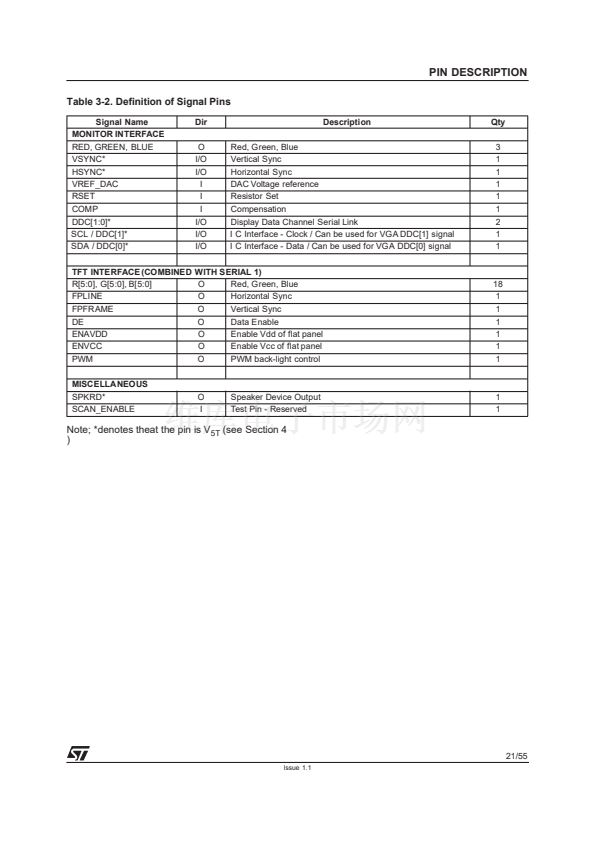

SVGA GRAPHICS CONTROLLER

135MHz RAMDAC

UMA ARCHITECTURE

TFT DISPLAY CONTROLLER

PCI MASTER / SLAVE / ARBITER

LOCAL BUS INTERFACE

ISA (MASTER/SLAVE) INTERFACE

-INCLUDING THE IPC

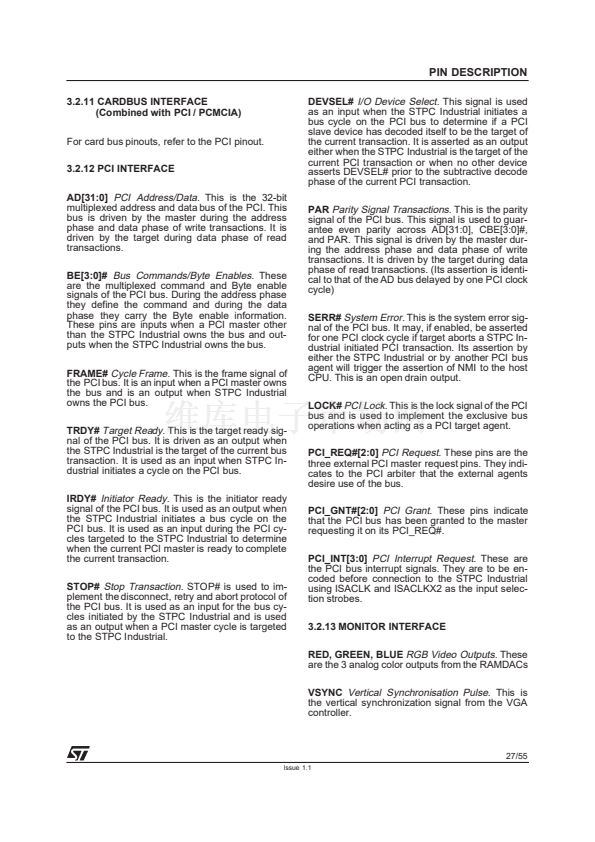

PC-CARD INTERFACE

- PCMCIA

- CARDBUS

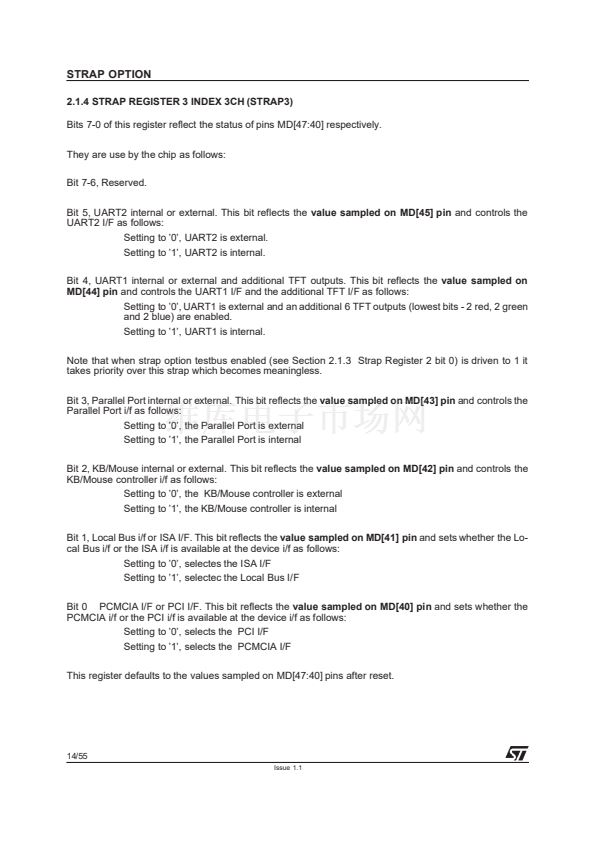

I/O FEATURES

- PC/AT+ KEYBOARD CONTROLLER

- PS/2 MOUSE CONTROLLER

- 2 SERIAL PORTS

- 1 PARALLEL PORT

IPC

- DMA CONTROLLER

- INTERRUPT CONTROLLER

- TIMER / COUNTERS

POWER MANAGEMENT

PCI

m/s

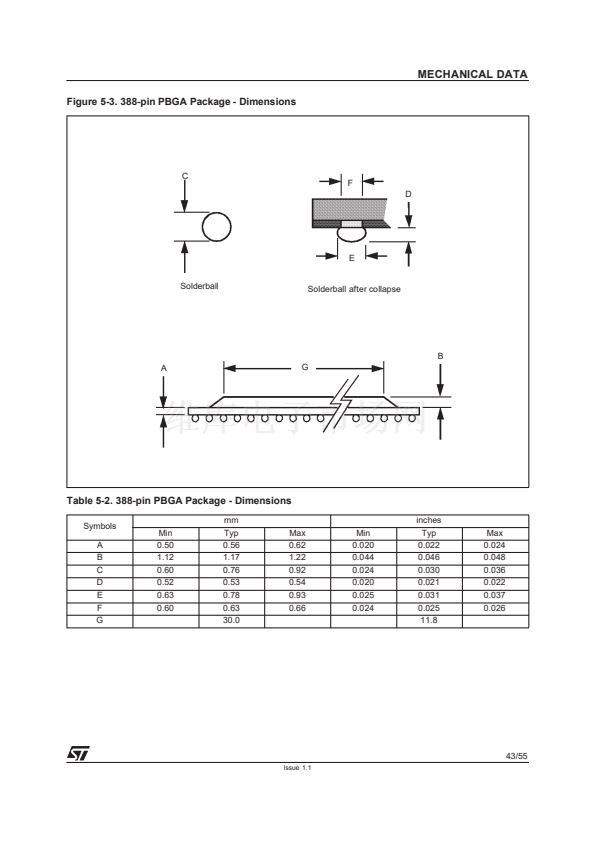

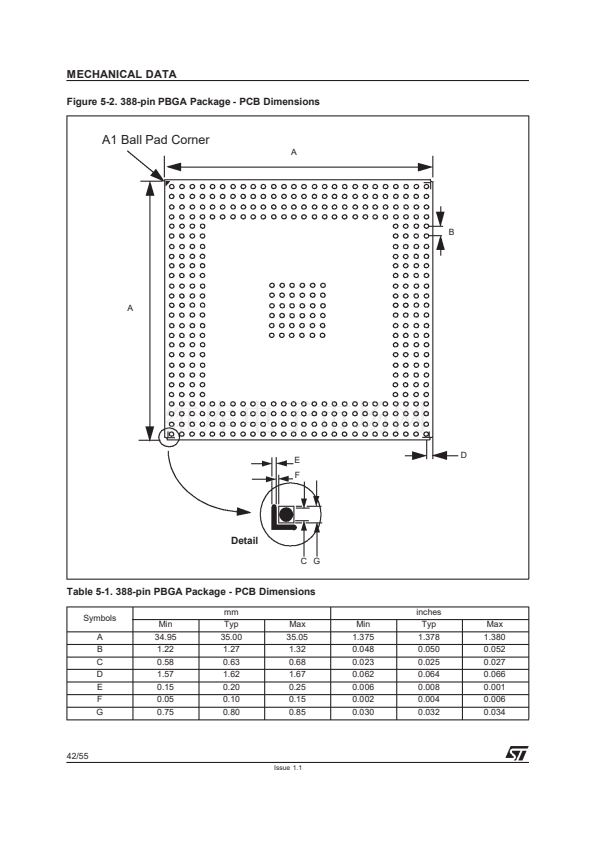

PBGA388

s

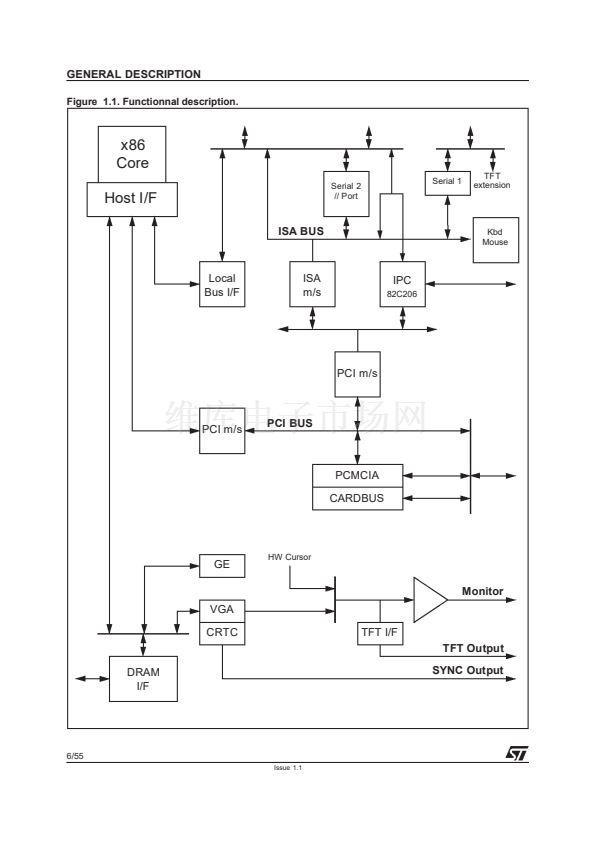

Figure 1. Logic Diagram

s

x86

Core

Host I/F

Serial2

// Port

Serial1

Kbd

Mouse

TFT

ext

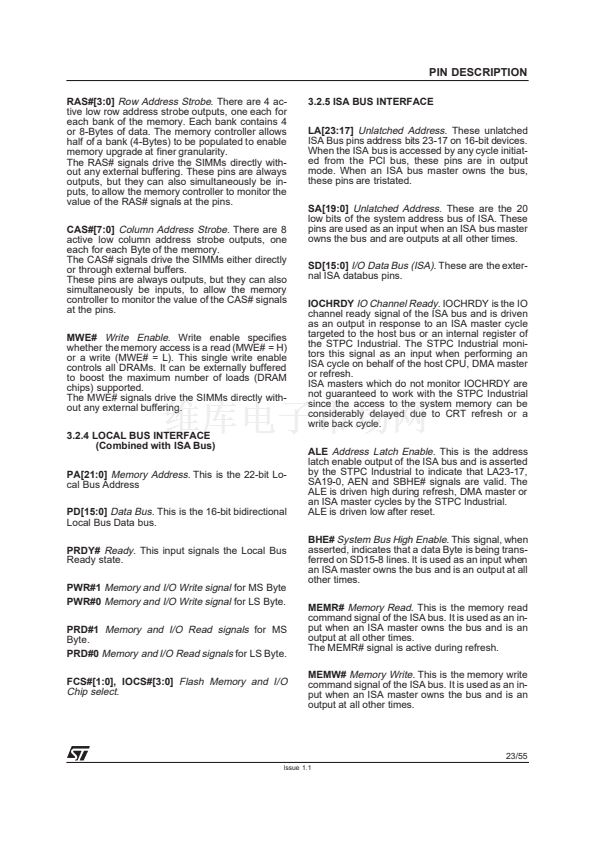

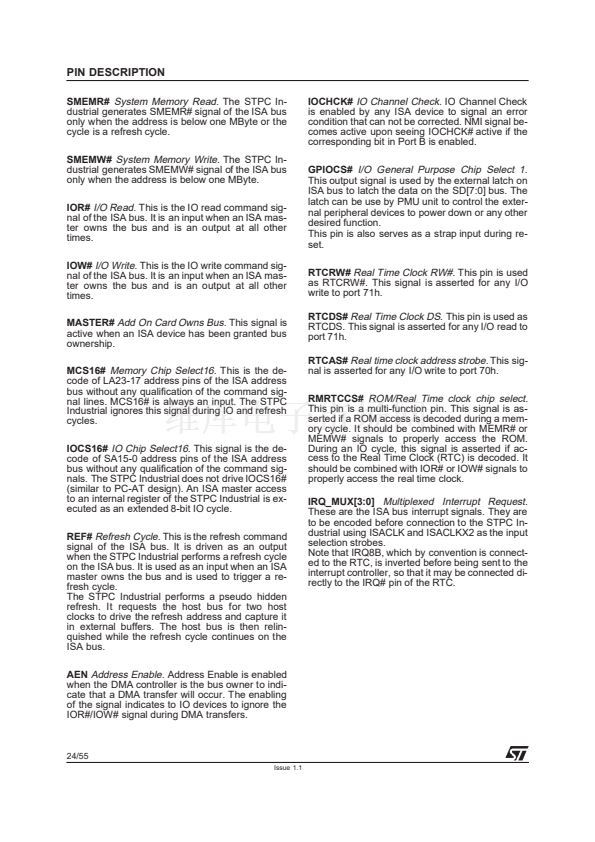

ISA BUS

Local

Bus I/F

ISA

I/F

IPC

82C206

s

s

PCI

CONTROLLE R

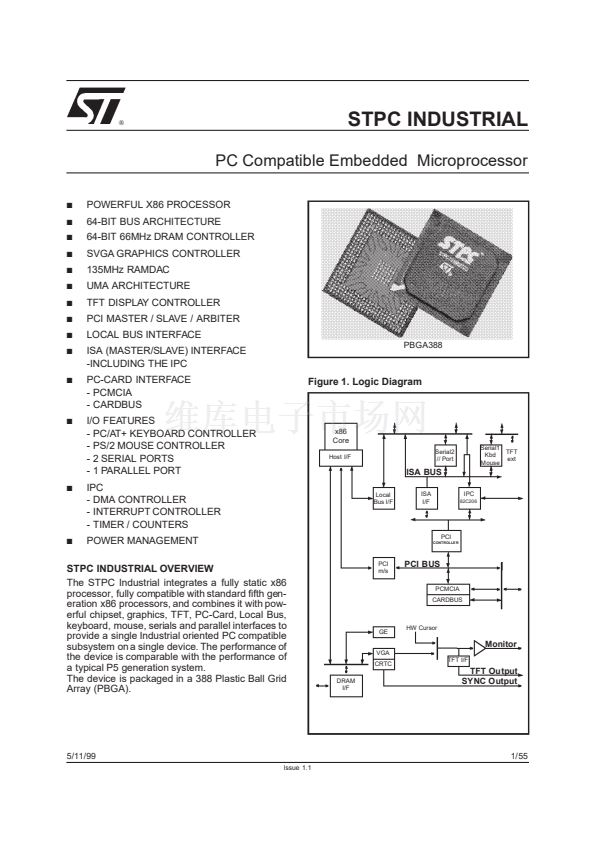

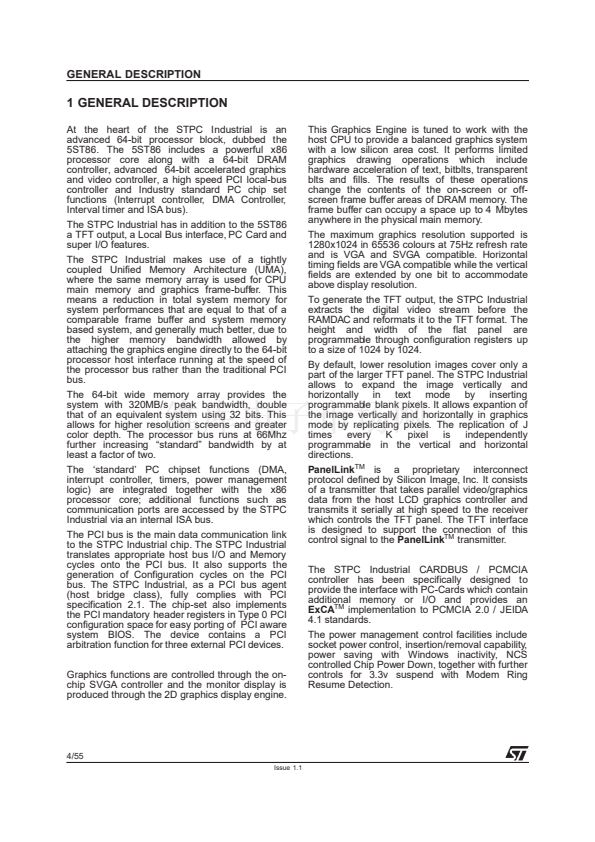

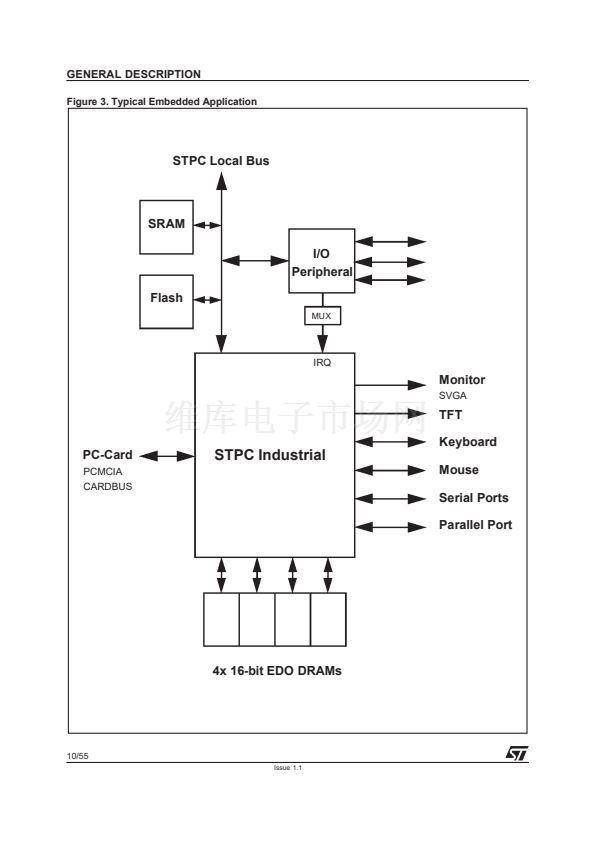

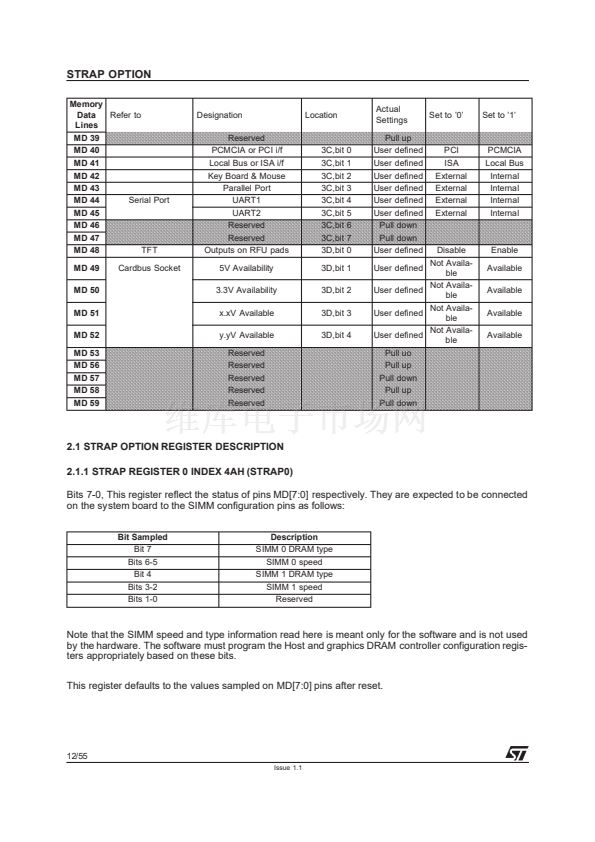

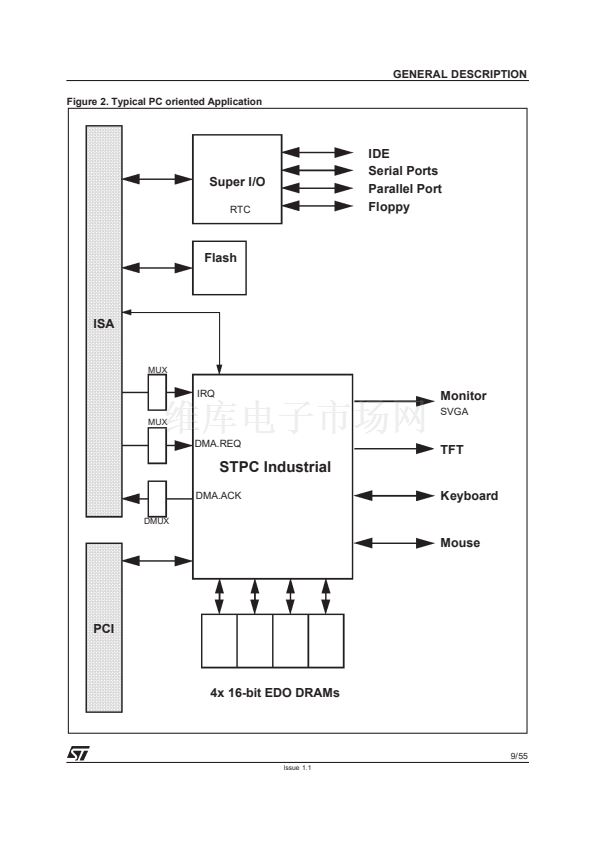

STPC INDUSTRIAL OVERVIEW

The STPC Industrial integrates a fully static x86

processor, fully compatible with standard fifth gen-

eration x86 processors, and combines it with pow-

erful chipset, graphics, TFT, PC-Card, Local Bus,

keyboard, mouse, serials and parallel interfaces to

provide a single Industrial oriented PC compatible

subsystem on a single device. The performance of

the device is comparable with the performance of

a typical P5 generation system.

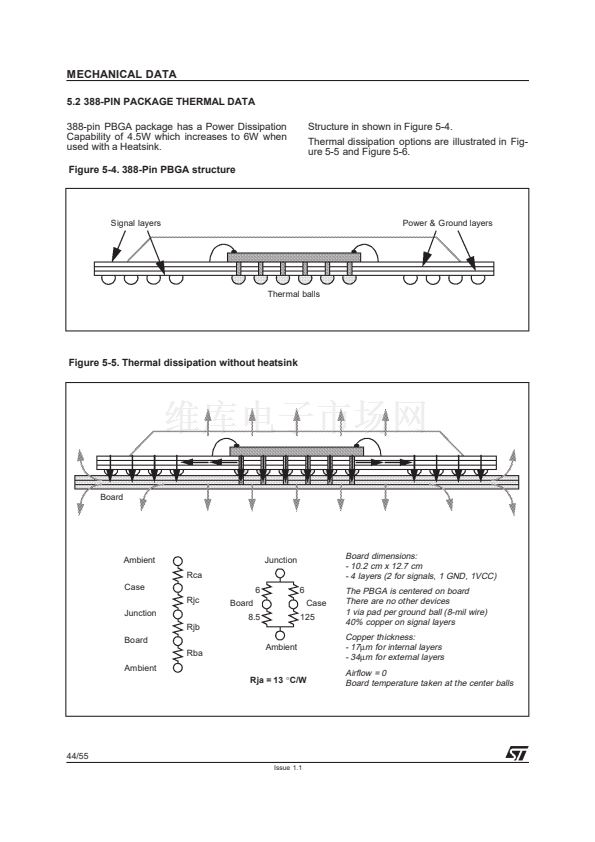

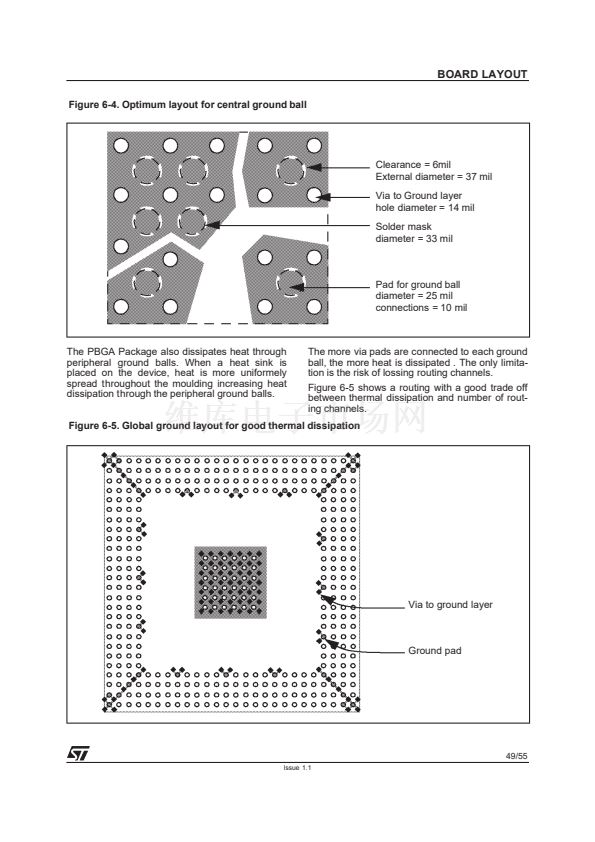

The device is packaged in a 388 Plastic Ball Grid

Array (PBGA).

PCI BUS

PCMCIA

CARDBUS

GE

HW Cursor

Monitor

VGA

CRTC

DRAM

I/F

TFT I/F

TFT Output

SYNC Output

5/11/99

Issue 1.1

1/55

next
