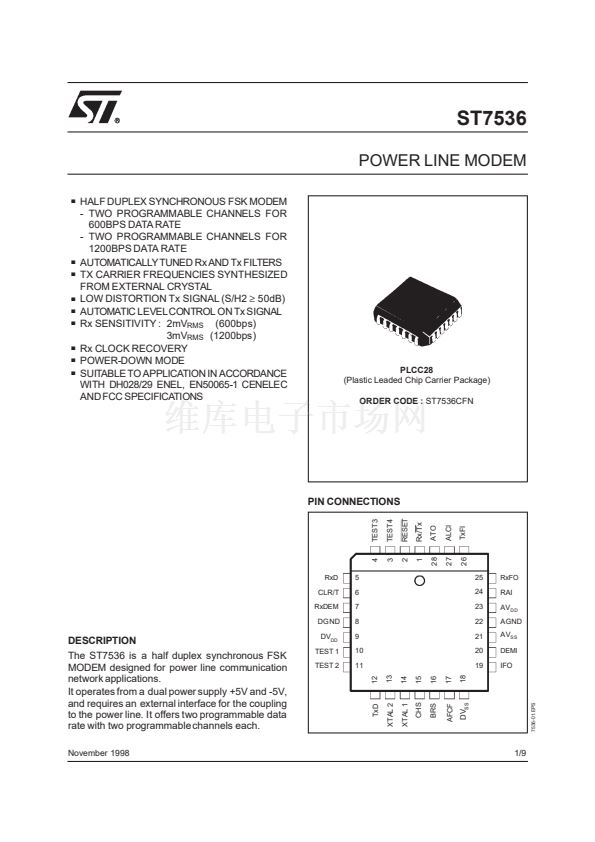

ST7536

POWER LINE MODEM

HALF DUPLEX SYNCHRONOUS FSK MODEM

- TWO PROGRAMMABLE CHANNELS FOR

600BPS DATA RATE

- TWO PROGRAMMABLE CHANNELS FOR

1200BPS DATA RATE

AUTOMATICALLYTUNED Rx AND Tx FILTERS

TX CARRIER FREQUENCIES SYNTHESIZED

FROM EXTERNAL CRYSTAL

LOW DISTORTION Tx SIGNAL (S/H2

鈮?/div>

50dB)

AUTOMATIC LEVELCONTROL ON Tx SIGNAL

Rx SENSITIVITY : 2mV

RMS

(600bps)

3mV

RMS

(1200bps)

Rx CLOCK RECOVERY

POWER-DOWN MODE

SUITABLE TO APPLICATION IN ACCORDANCE

WITH DH028/29 ENEL, EN50065-1 CENELEC

AND FCC SPECIFICATIONS

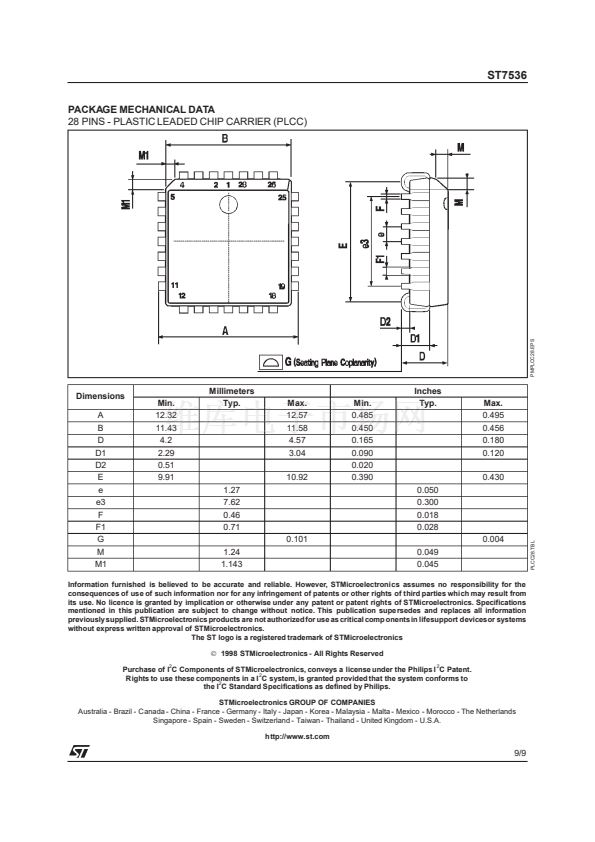

PLCC28

(Plastic Leaded Chip Carrier Package)

ORDER CODE :

ST7536CFN

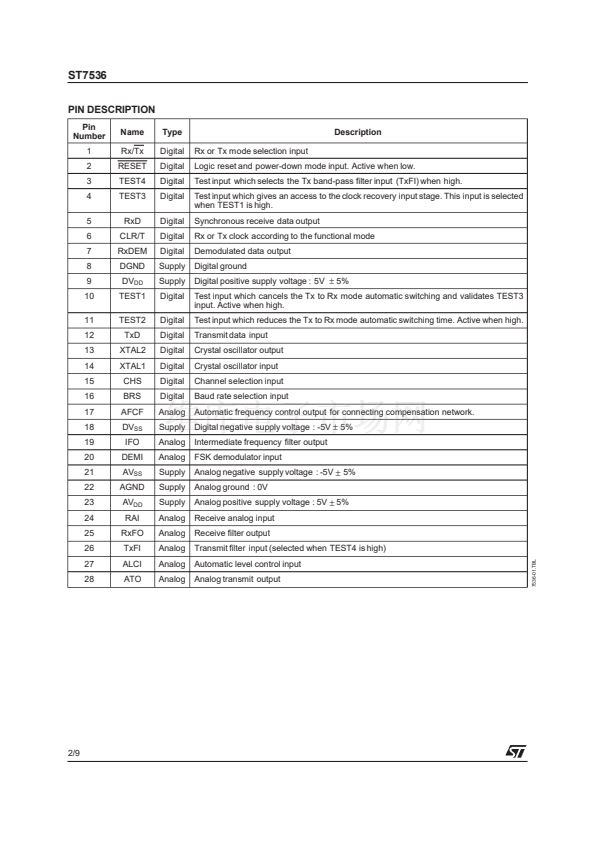

PIN CONNECTIONS

RESET

TEST 3

TEST 4

Rx/Tx

ALCI

ATO

RxD

TxFI

RxFO

CLR/T

RxDEM

RAI

D D

AGND

DEMI

DGND

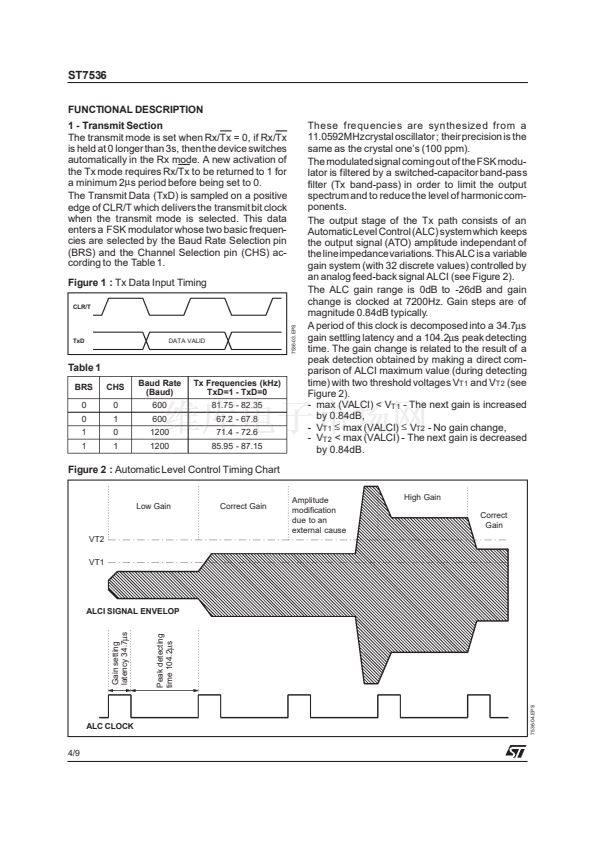

DESCRIPTION

The ST7536 is a half duplex synchronous FSK

MODEM designed for power line communication

network applications.

It operates from a dual power supply +5V and -5V,

and requires an external interface for the coupling

to the power line. It offers two programmable data

rate with two programmable channels each.

November 1998

TEST 1

TEST 2

IFO

CHS

1/9

7536-01.EPS

BRS

XTAL 2

XTAL 1

AFCF

TxD
