ST75185C Datasheet

  • ST75185C

  • MULTIPLE RS-232 DRIVERS AND RECEIVERS

  • STMicroelectronics   STMicroelectronics

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
ST75185
MULTIPLE RS-232 DRIVERS AND RECEIVERS
s
s
s
s
MEETS AND EXCEEDS THE
REQUIREMENTS OF EIA/TIA-232-E AND
ITUV.28 STANDARD
SINGLE CHIP WITH EASY INTERFACE
BETWEEN UART AND SERIAL PORT
CONNECTOR OF IBM PC/AT鈩?AND
COMPATIBLES
DESIGNED TO SUPPORT DATA RATES UP
TO 120 Kbps
PINOUT COMPATIBLE WITH ST75C185
N
D
(Plastic Package)
(Micro Package)

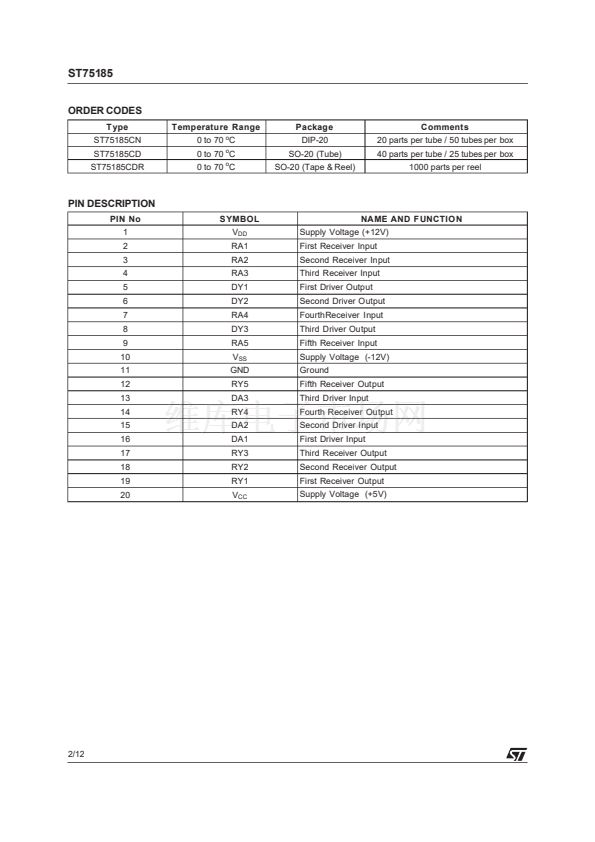

ORDER CODES :
ST75185CN
ST75185CD
standards. These standards are for data
interchange between a host computer and
peripheral at signalling rates up to 20k-bits/s. The

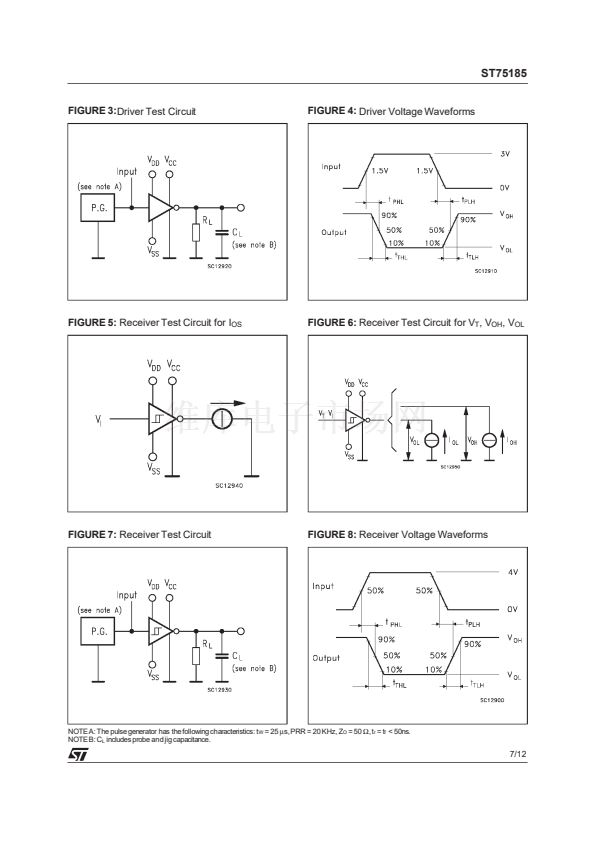

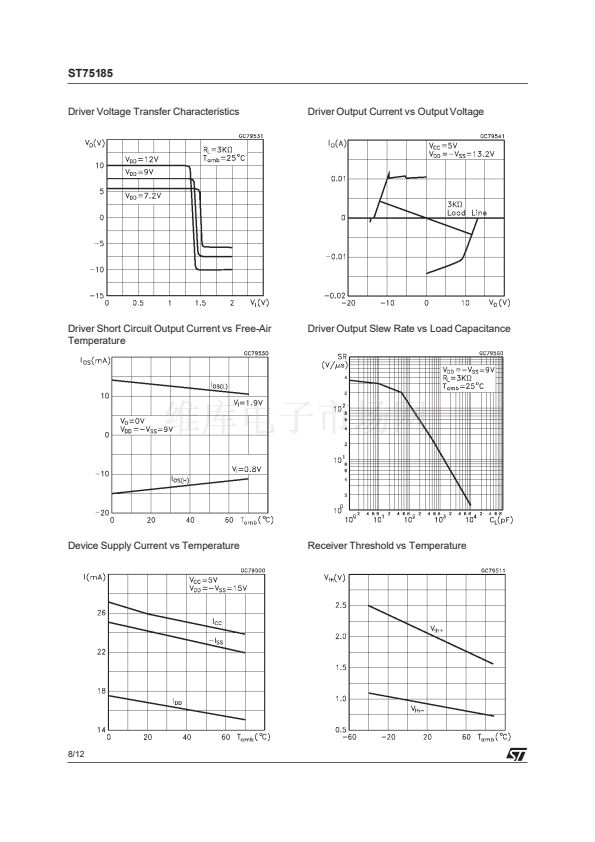

switching speeds of the ST75185 are fast enough
to support rates up to 120K-bits/s with lower
capacitive loads (shorter cables). Interoperability
at the higher signalling rates cannot be assured
unless the designer has design control of the
cable and the interface circuits at the both ends.
For interoperability at signalling rates to 120
K-bits/s, use of EIA/ITA-423-B (ITU v.10) and
EIA/ITA-422-B (ITU v.11) standards are
recommended.

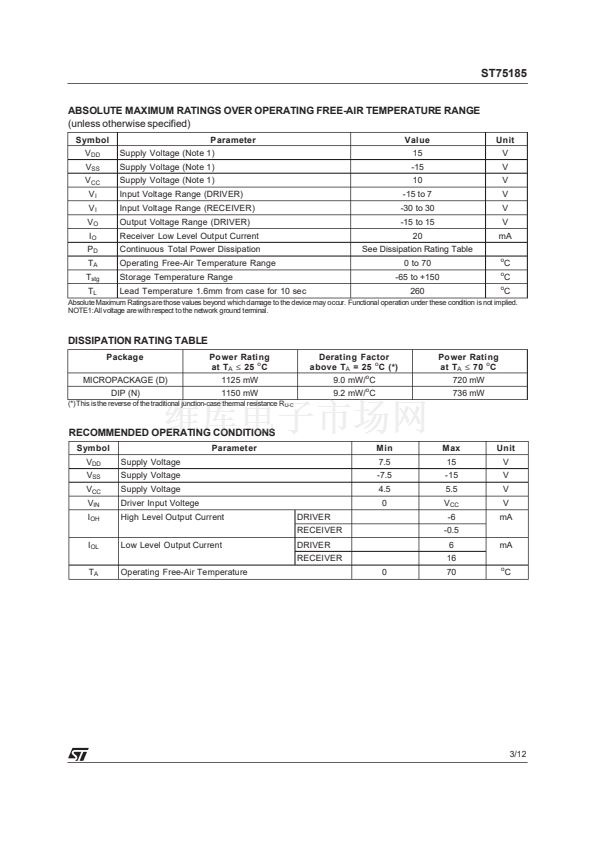

The ST75185 is characterized for operation over
the range of 0
o
C to 70
o
C.
DESCRIPTION

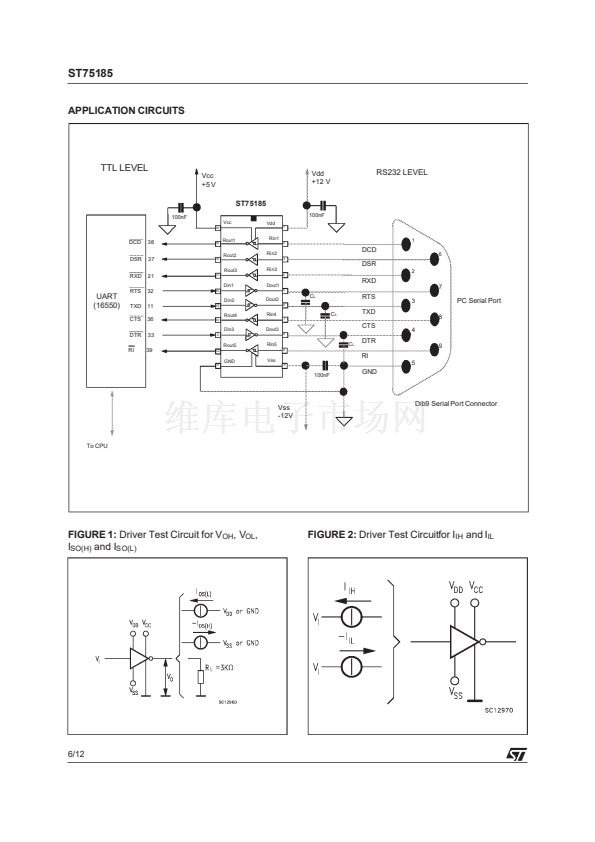

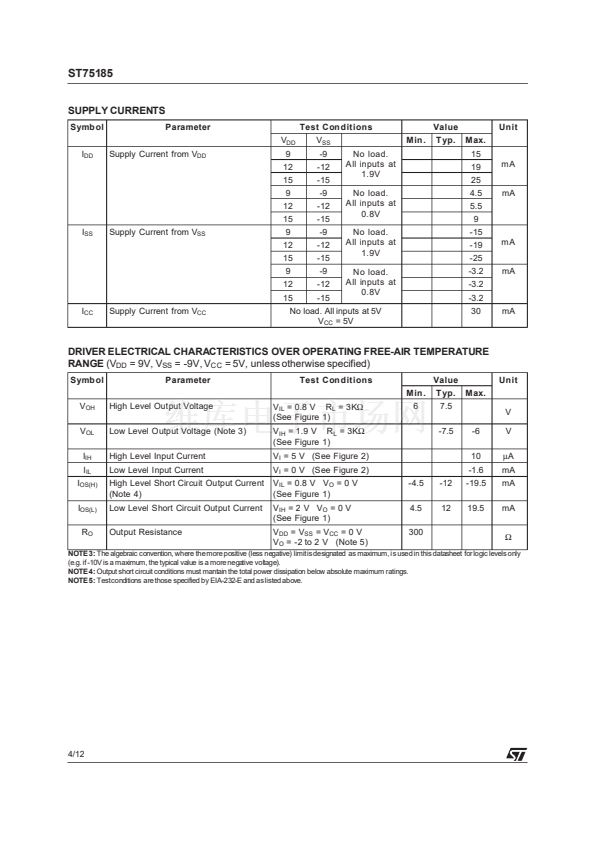

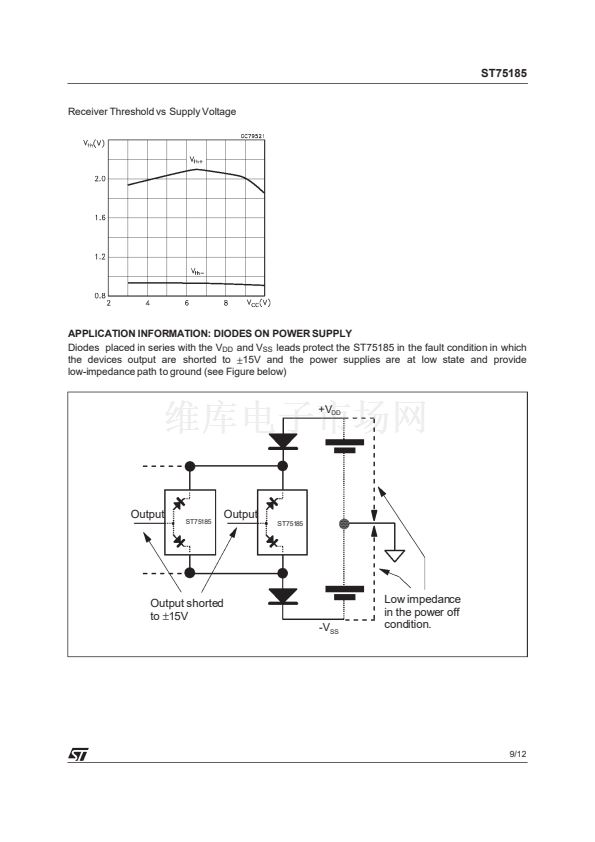

The ST75185 contains three drivers and five
receivers. The pinout matches the DB9S
connector design in order to decrease the part
count, reduce the board space required and allow
easy interconnection of the UART and serial port
connector of IBM PC/AT鈩?and compatibles. The
bipolar circuits and processing of the ST75185
provides a rugged low-cost solution for this
function at the expense of quiescent power and
external passive components relative to the
ST75C185.
The ST75185 complies with the requirements of
the EIA/TIA 232-E and ITU (formally CCITT) v.28

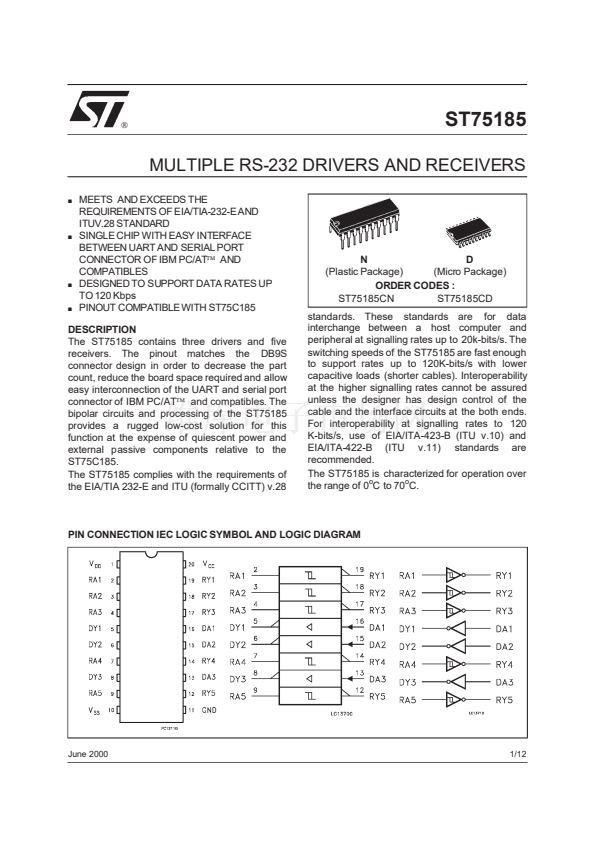

PIN CONNECTION IEC LOGIC SYMBOL AND LOGIC DIAGRAM
June 2000
1/12
