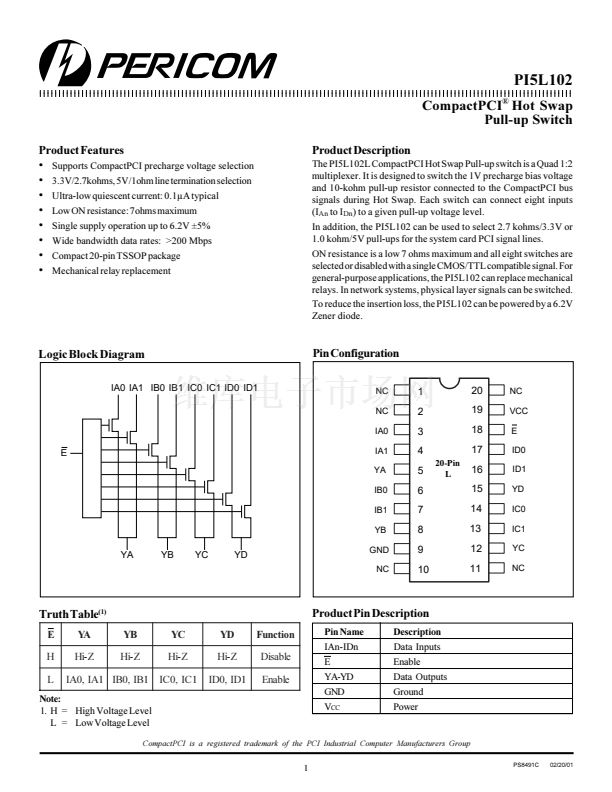

PI5L102
CompactPCI
廬
Hot Swap
Pull-up Switch
Product Features
聲
Supports CompactPCI precharge voltage selection
聲
3.3V/2.7kohms, 5V/1ohm line termination selection
聲
Ultra-low quiescent current: 0.1碌A typical
聲
Low ON resistance: 7ohms maximum
聲
Single supply operation up to 6.2V 鹵5%
聲
Wide bandwidth data rates: >200 Mbps
聲
Compact 20-pin TSSOP package
聲
Mechanical relay replacement
Product Description
The PI5L102L CompactPCI Hot Swap Pull-up switch is a Quad 1:2
multiplexer. It is designed to switch the 1V precharge bias voltage
and 10-kohm pull-up resistor connected to the CompactPCI bus
signals during Hot Swap. Each switch can connect eight inputs
(I
An
to I
Dn
) to a given pull-up voltage level.
In addition, the PI5L102 can be used to select 2.7 kohms/3.3V or
1.0 kohm/5V pull-ups for the system card PCI signal lines.
ON resistance is a low 7 ohms maximum and all eight switches are
selected or disabled with a single CMOS/TTL compatible signal. For
general-purpose applications, the PI5L102 can replace mechanical
relays. In network systems, physical layer signals can be switched.
To reduce the insertion loss, the PI5L102 can be powered by a 6.2V
Zener diode.
Logic Block Diagram
IA0 IA1 IB0 IB1 IC0 IC1 ID0 ID1
Pin Configuration
NC
NC
IA0
1
2
3
4
5
6
7
8
9
10
20-Pin
L
20
19
18
17
16
15
14
13
12
11
NC
VCC
E
ID0
ID1
YD
IC0
IC1
YC
NC
E
IA1
YA
IB0
IB1
YB
YA
YB
YC
YD
GND
NC
Truth Table
(1)
E
H
L
YA
Hi- Z
YB
Hi- Z
YC
Hi- Z
YD
Hi- Z
ID0, ID1
Function
Disable
Enable
Product Pin Description
Pin Name
IAn-IDn
E
YA-YD
GND
V
CC
Description
Data Inputs
Enable
Data Outputs
Ground
Power
IA0, IA1 IB0, IB1 IC0, IC1
Note:
1. H = High Voltage Level
L = Low Voltage Level
CompactPCI is a registered trademark of the PCI Industrial Computer Manufacturers Group
1
PS8491C
02/20/01
