Product Features:
聲 Near zero propagation delay
聲 5ohm switches connect inputs to outputs
聲 Direct bus connection when switches are ON
聲
Ultra Low Quiescent Power (0.2 碌A Typical) 聳 Ideally
suited for notebook applications
聲 Packages available:
聳 24-pin 150 mil wide plastic QSOP (Q24)
聳 24-pin 300 mil wide plastic SOIC (S24)
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI5C3861
10-Bit, 2-Port Bus Switch
Product Description:
Pioneer Semiconductor聮s PI5C series of logic circuits are pro-duced
in the Company聮s advanced submicron CMOS technology,
achieving industry leading performance.
The PI5C3861 is a 10-bit, 2-port bus switch designed with a low ON
resistance (5ohm) allowing inputs to be connected directly to
outputs. The bus switch creates no additional propagational delay
or additional ground bounce noise. The switches are turned ON by
the Bus Enable (BE) input signal.
Logic Block Diagram
Product Pin Configuration
A
0
B
0
A
9
B
9
BE
C
0
A
0
B
0
D
0
C
1
A
1
B
1
D
1
BX
0
BX
1
GND
24
1
23
2
22
3
21
4
24-Pin
20
5
6
Q,S
19
18
7
17
8
16
9
15
10
14
11
13
12
Vcc
D
3
B
3
A
3
C
3
D
2
B
2
A
2
C
2
NC
BX
3
BX
2
BE
Product Pin Description
Pin Name
BE
A
0
聳
9
B
0
聳
9
GND
V
CC
Description
Bus Enable Input (Active LOW)
Bus A
Bus B
Ground
Power
Truth Table
(1)
Function
Disconnect
Connect
BE
H
L
A
0聳9
Hi-Z
B
0聳9
NOTE: 1. H = High Voltage Level
L = Low Voltage Level
Hi-Z = High Impedance
1
PS7021A
12/27/00
1

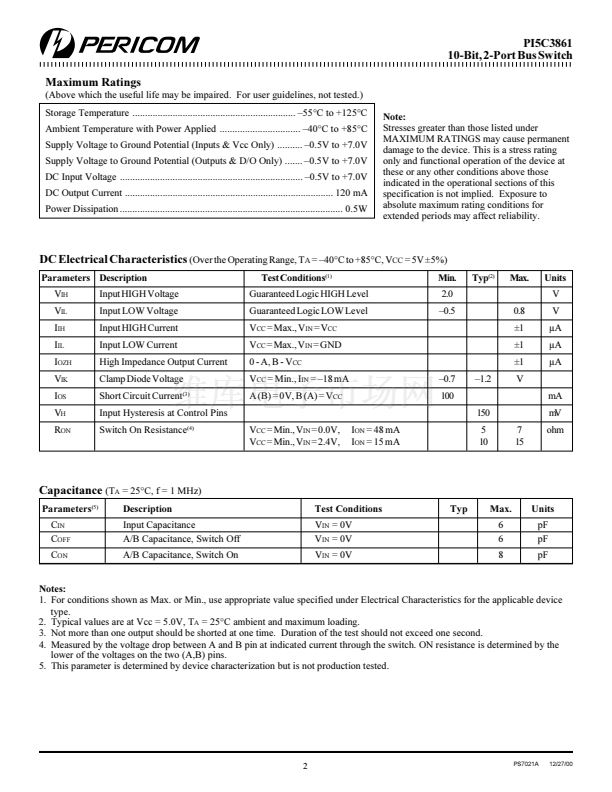

2

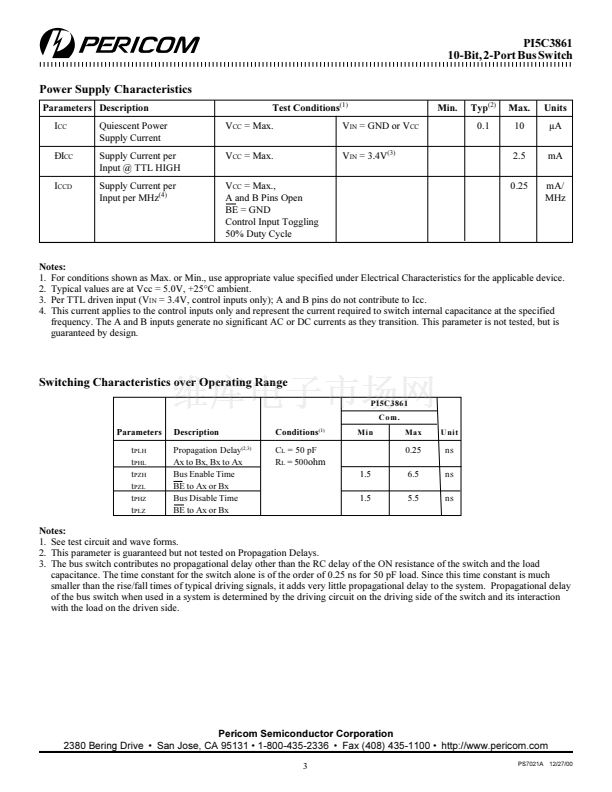

3
