PI3L301D Datasheet

  • PI3L301D

  • ASSP | 3.3V. 16-Bit to 8-Bit. Mux / DeMux Gigabit Ethernet L...

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

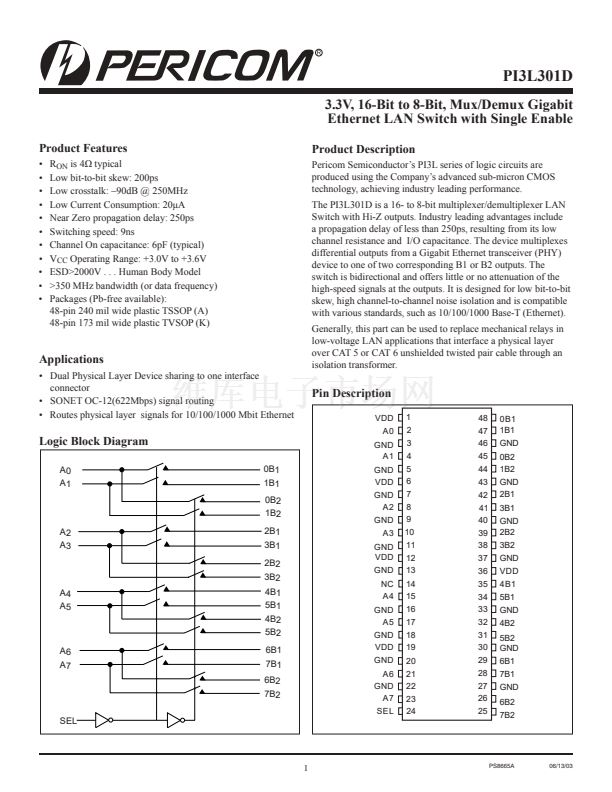

PI3L301D
3.3V, 16-Bit to 8-Bit, Mux/Demux Gigabit
Ethernet LAN Switch with Single Enable
Product Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
R
ON
is 4鈩?typical
Low bit-to-bit skew: 200ps
Low crosstalk: 鈥?0dB @ 250MHz
Low Current Consumption: 20碌A(chǔ)
Near Zero propagation delay: 250ps
Switching speed: 9ns
Channel On capacitance: 6pF (typical)
V
CC
Operating Range: +3.0V to +3.6V
ESD>2000V . . . Human Body Model
>350 MHz bandwidth (or data frequency)

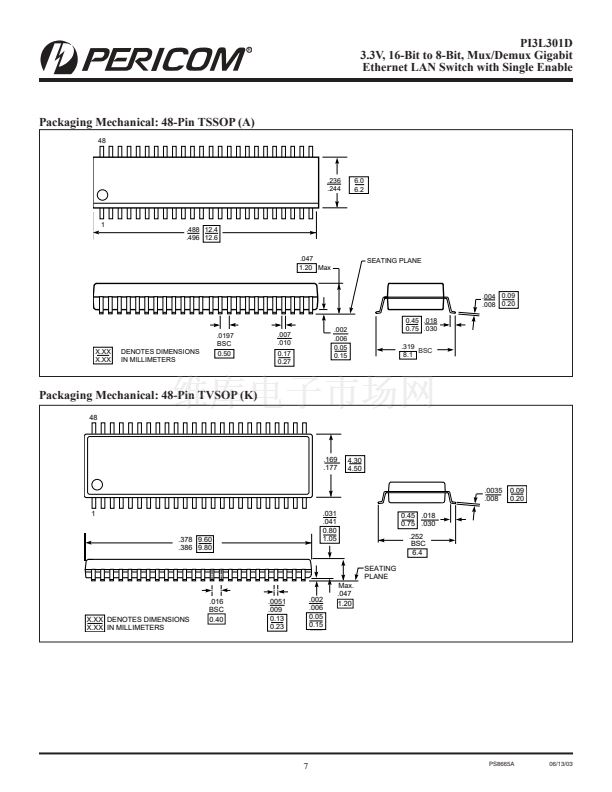

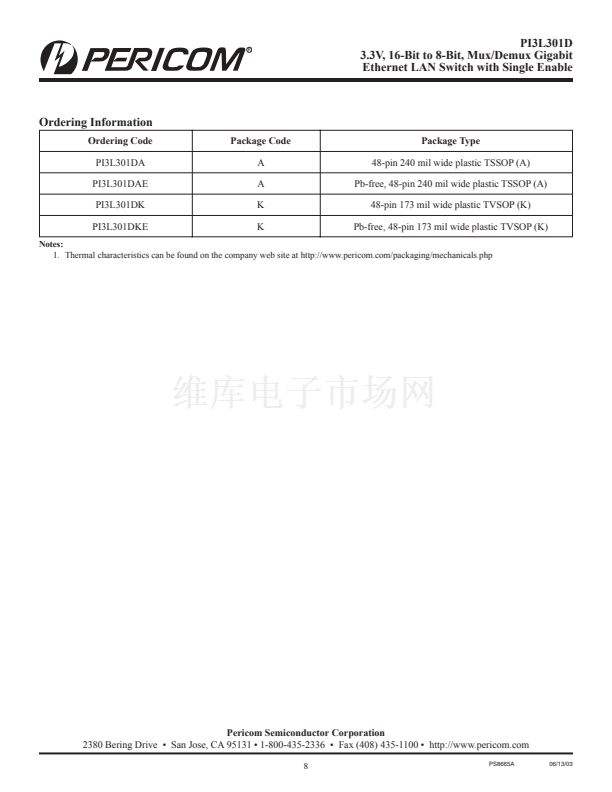

Packages (Pb-free available):
48-pin 240 mil wide plastic TSSOP (A)
48-pin 173 mil wide plastic TVSOP (K)
Product Description
Pericom Semiconductor鈥檚 PI3L series of logic circuits are
produced using the Company鈥檚 advanced sub-micron CMOS
technology, achieving industry leading performance.
The PI3L301D is a 16- to 8-bit multiplexer/demultiplexer LAN
Switch with Hi-Z outputs. Industry leading advantages include
a propagation delay of less than 250ps, resulting from its low
channel resistance and I/O capacitance. The device multiplexes
differential outputs from a Gigabit Ethernet transceiver (PHY)
device to one of two corresponding B1 or B2 outputs. The
switch is bidirectional and offers little or no attenuation of the
high-speed signals at the outputs. It is designed for low bit-to-bit
skew, high channel-to-channel noise isolation and is compatible
with various standards, such as 10/100/1000 Base-T (Ethernet).
Generally, this part can be used to replace mechanical relays in
low-voltage LAN applications that interface a physical layer
over CAT 5 or CAT 6 unshielded twisted pair cable through an
isolation transformer.
Applications
鈥?Dual Physical Layer Device sharing to one interface
connector
鈥?SONET OC-12(622Mbps) signal routing
鈥?Routes physical layer signals for 10/100/1000 Mbit Ethernet
Pin Description
VDD
A0
GND
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
Logic Block Diagram
A0
A1
0B1
1B1
0B2
1B2
A2
A3
2B1
3B1
2B2
3B2
A4
A5
4B1
5B1
4B2
5B2
6B1
7B1
6B2
7B2
SEL
0B1
1B1
GND
0B2
1B2
GND
2B1
3B1
GND
2B2
3B2
GND
VDD
4B1
5B1
GND
4B2
5B2
GND
6B1
7B1
GND
6B2
7B2
GND
VDD
GND
A2
GND
A3
GND
VDD
GND
NC
A4
GND
A5
GND
VDD
GND
A6
GND
A7
SEL
A6
A7
1
PS8665A
06/13/03
