NTP75N03-06/D Datasheet

  • NTP75N03-06/D

  • Power MOSFET 75 Amps， 30 Volts

  • 61.60KB

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

NTP75N03-06,
NTB75N03-06
Power MOSFET
75 Amps, 30 Volts
N鈥揅hannel TO鈥?20 and D2PAK
This 10 VGS gate drive vertical Power MOSFET is a general
purpose part that provides the 鈥渂est of design鈥?available today in a low
cost power package. Avalanche energy issues make this part an ideal
design in. The drain鈥搕o鈥搒ource diode has a ideal fast but soft recovery.
Features
http://onsemi.com
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Ultra鈥揕ow RDS(on), Single Base, Advanced Technology
SPICE Parameters Available
Diode is Characterized for Use in Bridge Circuits
IDSS and VDS(on) Specified at Elevated Temperatures
High Avalanche Energy Specified
ESD JEDAC Rated HBM Class 1, MM Class B, CDM Class 0
Power Supplies
Inductive Loads
PWM Motor Controls
Replaces MTP1306 and MTB1306 in Many Applications
75 AMPERES
30 VOLTS
RDS(on) = 6.5 m鈩?/div>
N鈥揅hannel
D
Typical Applications
G
S
4
1

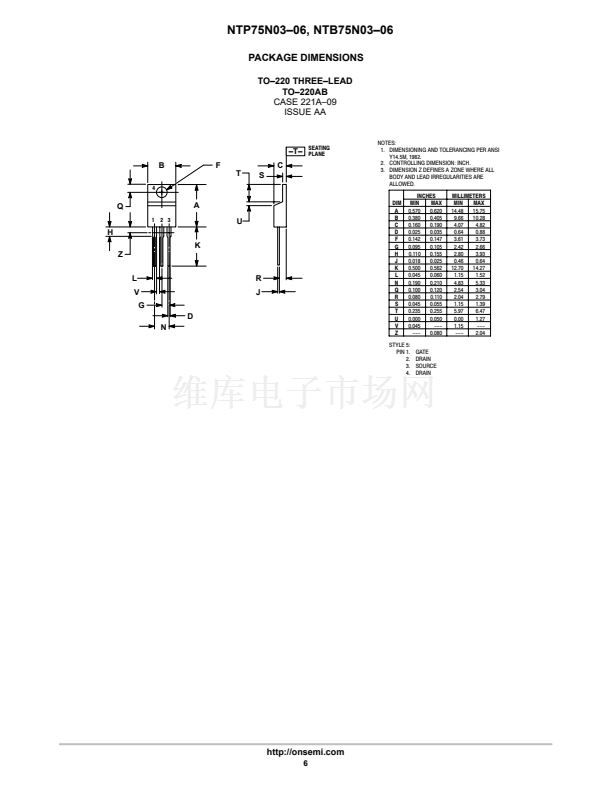

TO鈥?20AB
CASE 221A
STYLE 5
2
3
2
3

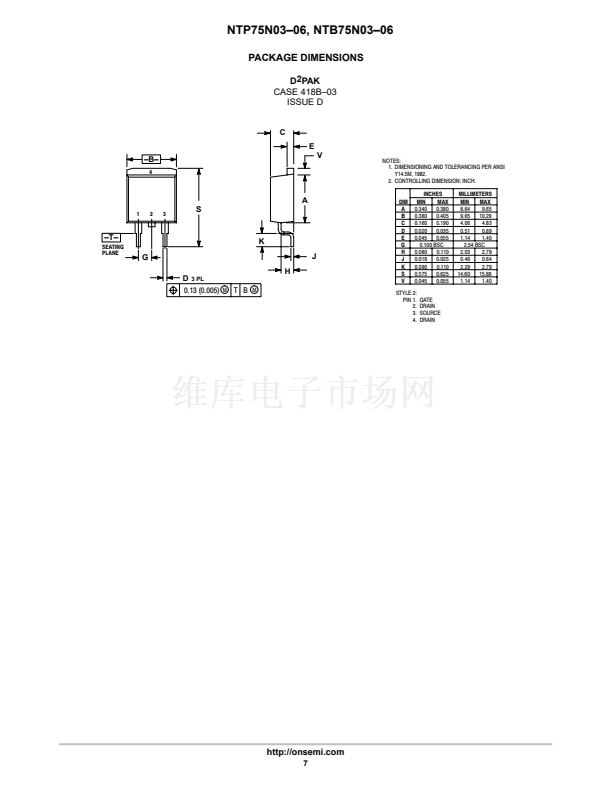

D2PAK
CASE 418B
STYLE 2
4
1
MARKING DIAGRAMS
& PIN ASSIGNMENTS
4
Drain
4
Drain
E75
N03鈥?6
YWW
1
Gate
3
Source
E75
N03鈥?6
YWW
1
Gate
2
Drain
3
Source
2
Drain
N03鈥?6
Y
WW
= Device Code
= Year
= Work Week
ORDERING INFORMATION
Device
NTP75N03鈥?6
NTB75N03鈥?6
NTB75N03鈥?6T4
Package
TO鈥?20
D2PAK
D2PAK
Shipping
50 Units/Rail
50 Units/Rail
800 Tape & Reel
漏
Semiconductor Components Industries, LLC, 2000
1
December, 2000 鈥?Rev. 0
Publication Order Number:
NTP75N03鈥?6/D
