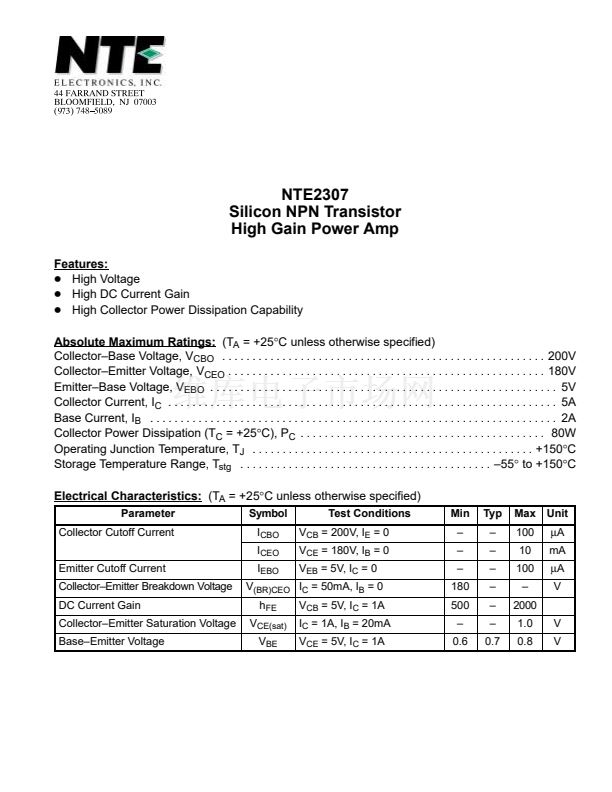

NTE2307
Silicon NPN Transistor
High Gain Power Amp
Features:
D
High Voltage
D
High DC Current Gain
D
High Collector Power Dissipation Capability
Absolute Maximum Ratings:
(T
A
= +25擄C unless otherwise specified)
Collector鈥揃ase Voltage, V
CBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V
Collector鈥揈mitter Voltage, V
CEO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180V
Emitter鈥揃ase Voltage, V
EBO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Collector Current, I
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5A
Base Current, I
B
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2A
Collector Power Dissipation (T
C
= +25擄C), P
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80W
Operating Junction Temperature, T
J
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150擄C
Storage Temperature Range, T
stg
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 鈥?5擄 to +150擄C
Electrical Characteristics:
(T
A
= +25擄C unless otherwise specified)
Parameter
Collector Cutoff Current
Emitter Cutoff Current
Collector鈥揈mitter Breakdown Voltage
DC Current Gain
Collector鈥揈mitter Saturation Voltage
Base鈥揈mitter Voltage
Symbol
I
CBO
I
CEO
I
EBO
h
FE
V
CE(sat)
V
BE
Test Conditions
V
CB
= 200V, I
E
= 0
V
CE
= 180V, I
B
= 0
V
EB
= 5V, I
C
= 0
V
CB
= 5V, I
C
= 1A
I
C
= 1A, I
B
= 20mA
V
CE
= 5V, I
C
= 1A
Min
鈥?/div>
鈥?/div>
鈥?/div>
180
500
鈥?/div>
0.6
Typ
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
0.7
Max
100
10
100
鈥?/div>
2000
1.0
0.8
V
V
Unit
碌A(chǔ)
mA
碌A(chǔ)
V
V
(BR)CEO
I
C
= 50mA, I
B
= 0
