LMH0044 SMPTE 292M / 259M Adaptive Cable Equalizer
August 5, 2008

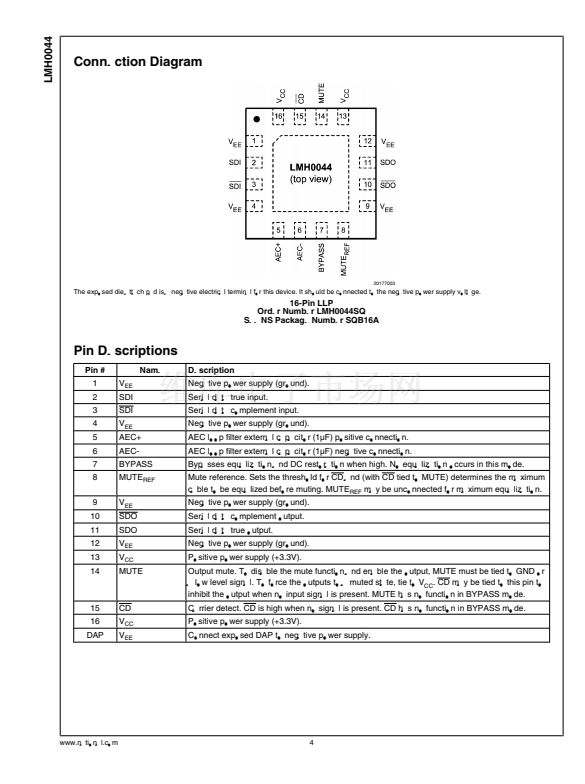

LMH0044
SMPTE 292M / 259M Adaptive Cable Equalizer
General Description
The LMH0044 SMPTE 292M / 259M adaptive cable equalizer
is a monolithic integrated circuit for equalizing data transmit-
ted over cable (or any media with similar dispersive loss
characteristics). The equalizer operates over a wide range of
data rates from 143 Mbps to 1.485 Gbps and supports
SMPTE 292M, SMPTE 344M and SMPTE 259M.
The LMH0044 implements DC restoration to correctly handle
pathological data conditions (DC restoration may be by-
passed for low data rate applications). The equalizer may be
driven in either a single ended or differential configuration.
Additional features include separate carrier detect and output
mute pins which may be tied together to mute the output when
no signal is present. A programmable mute reference is pro-
vided to mute the output at a selectable level of signal degra-
dation.
Features
鈻?/div>
SMPTE 292M, SMPTE 344M and SMPTE 259M
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
compliant
Supports DVB-ASI at 270 Mbps
High data rates: 143 Mbps to 1.485 Gbps
Equalizes up to 200 meters of Belden 1694A at 1.485
Gbps or up to 400 meters of Belden 1694A at 270 Mbps
Manual bypass and output mute with a programmable
threshold
Single-ended or differential input
50鈩?/div>
differential outputs

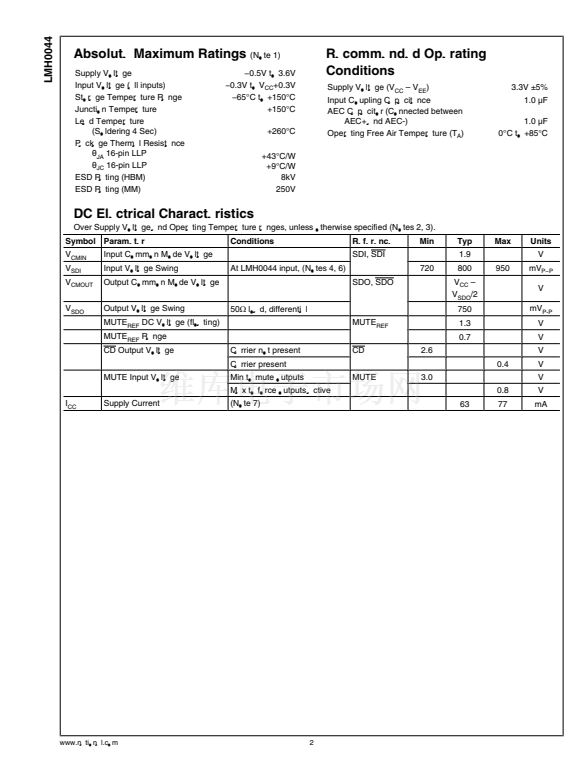

Single 3.3V supply operation
208 mW typical power consumption with 3.3V supply
Replaces the GS1574 and GS1574A
Applications
鈻?/div>
SMPTE 292M, SMPTE 344M, and SMPTE 259M serial
digital interfaces
鈻?/div>
Serial digital data equalization and reception
鈻?/div>
Data recovery equalization
Typical Application
20177001
漏 2008 National Semiconductor Corporation
201770
www.national.com
