LMH0341, LMH0041, LMH0071, LMH0051 3G, HD, SD, DVB-ASI SDI Deserializer with
Loopthrough and LVDS Interface
ADVANCE INFORMATION
April 2007
LMH0341, LMH0041, LMH0071, LMH0051
3G, HD, SD, DVB-ASI SDI Deserializer with Loopthrough
and LVDS Interface
General Description
The LMH0041 family of products provide a very simple 1:5
deserializer and receiver function. The device is intended to
be paired with an FPGA host which will receive the raw 5 bit
data words and will decode the data appropriately such that
a SMPTE standard signal may be recovered. The devices are
designed to receive data compliant with DVB-ASI, SMPTE
259M, SMPTE 292M and/or SMPTE 424M. The interface be-
tween the LMH0041 and the FPGA consists of a 5 bit wide
LVDS bus, an LVDS clock and an SMBus interface. All de-
vices except for the LMH0051 includes a reclocked
feedthrough output with a SMPTE compliant cable driver. The
LMH0341 includes support for SMPTE424M, and the
LMH0071 is a Stadard Definition (SD) only variant. The prod-
uct is packaged in a physically small 48 pin LLP package.
Key Specifications
鈻?/div>
Output compliant with SMPTE 259M-C, SMPTE 292M,
SMPTE 424M and DVB-ASI
鈻?/div>
Typical power dissipation: 410 mW (loopthrough disabled)
鈻?/div>
0.6 UI Input Jitter Tolerance
Features
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
LVDS Interface
Dual multiplexed inputs
No external VCO or clock required
Loopthrough with Cable Driver
SMBus configuration interface
48 pin LLP package
Applications
鈻?/div>
SDI interfaces for:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Video Cameras
DVRs
Video Switchers
Video Editing Systems

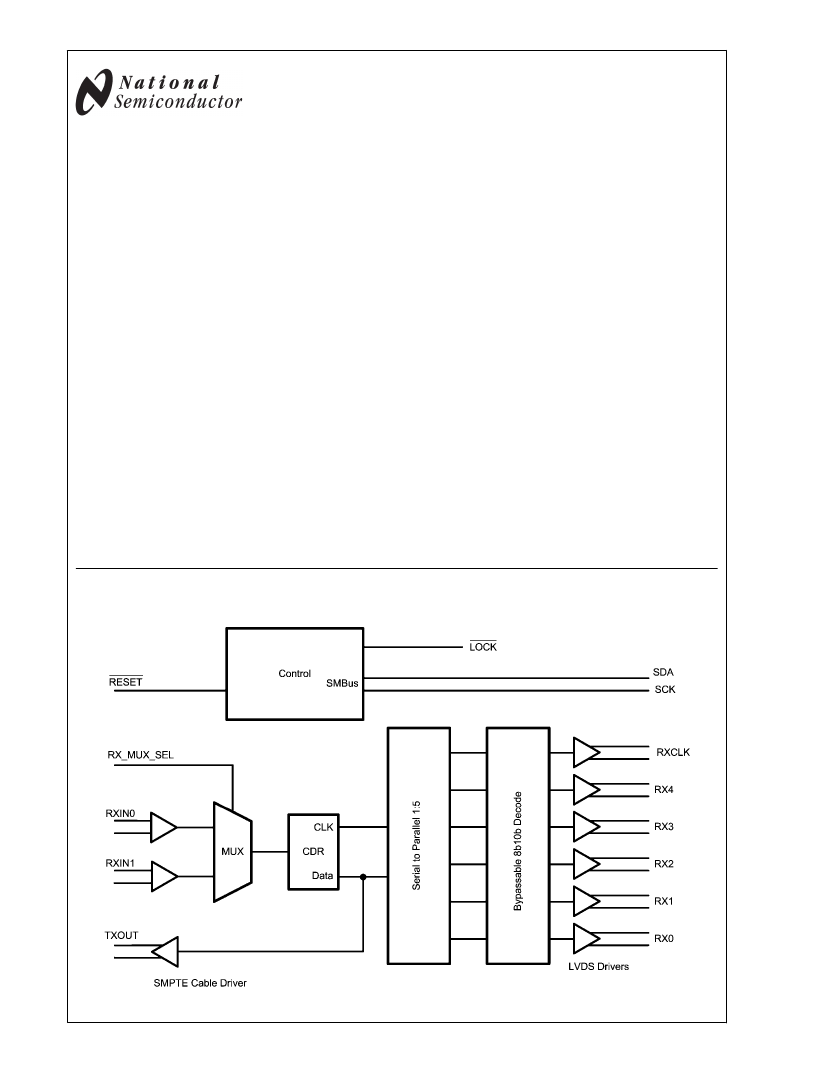

Block Diagram
30017201
漏 2007 National Semiconductor Corporation
300172
www.national.com
