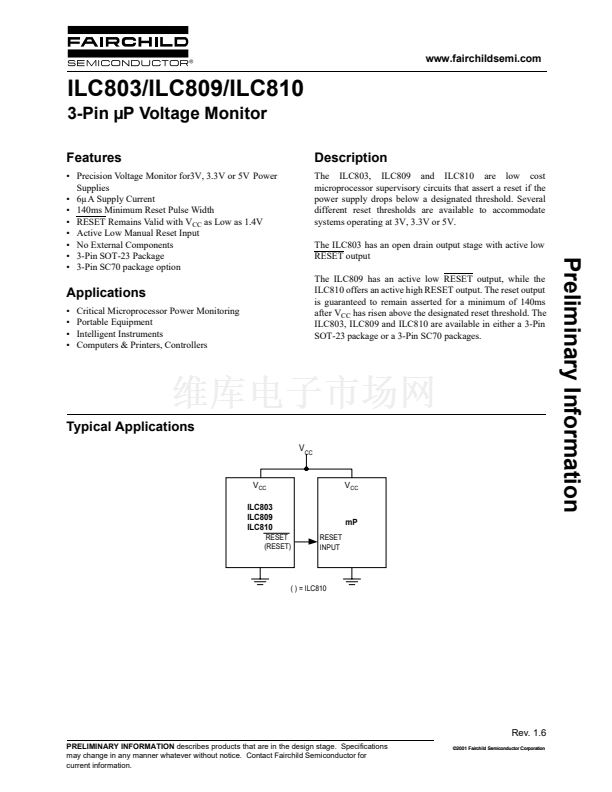

www.fairchildsemi.com
ILC803/ILC809/ILC810
3-Pin 碌P Voltage Monitor
Features
鈥?Precision Voltage Monitor for3V, 3.3V or 5V Power
Supplies
鈥?6碌A(chǔ) Supply Current
鈥?140ms Minimum Reset Pulse Width
鈥?RESET Remains Valid with V
CC
as Low as 1.4V
鈥?Active Low Manual Reset Input
鈥?No External Components
鈥?3-Pin SOT-23 Package
鈥?3-Pin SC70 package option
Description
The ILC803, ILC809 and ILC810 are low cost
microprocessor supervisory circuits that assert a reset if the
power supply drops below a designated threshold. Several
different reset thresholds are available to accommodate
systems operating at 3V, 3.3V or 5V.
The ILC803 has an open drain output stage with active low
RESET output
The ILC809 has an active low RESET output, while the
ILC810 offers an active high RESET output. The reset output
is guaranteed to remain asserted for a minimum of 140ms
after V
CC
has risen above the designated reset threshold. The
ILC803, ILC809 and ILC810 are available in either a 3-Pin
SOT-23 package or a 3-Pin SC70 packages.
Preliminary Information
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Critical Microprocessor Power Monitoring
Portable Equipment
Intelligent Instruments
Computers & Printers, Controllers
Typical Applications
V
CC
V
CC
ILC803
ILC809
ILC810
RESET
(RESET)
RESET
INPUT
V
CC
mP
( ) = ILC810
Rev. 1.6
PRELIMINARY INFORMATION
describes products that are in the design stage. Specifications
may change in any manner whatever without notice. Contact Fairchild Semiconductor for
current information.
漏2001 Fairchild Semiconductor Corporation
