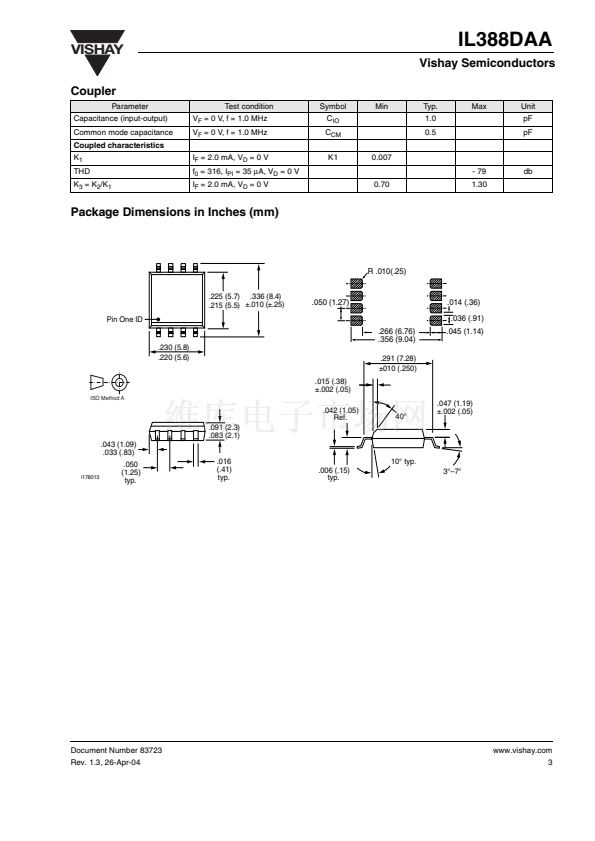

2.3 mm High SMD package
High sensitivity (K1) at low operating LED current
Couples AC and DC signals
Low input-output capacitance
Isolation test voltage, 2500 V
RMS
Low distortion, below - 80 db (typical)
0.4 mm internal insulation thickness
i179085
K 1
A 2
B1 3
C1 4
K1
K2
8 C2
7 B2
6 N.C
5 N.C
Agency Approvals
鈥?CSA 93751
Applications
Optical DAA for V.90 FAX/Modem
PCMCIA cards
Digital telephone line isolation
Description
The IL388DAA Linear Optocoupler consist of an
IRLED optically coupled to two photodiodes. The
emitter is located such that both photodiodes receive
approximately an equal amount of infrared light. The
diodes produce a proportional amount of photocur-
rent. The ratio of the photocurrent stays constant with
high accuracy when either the LED current or the
ambient temperature changes. Thus one can control
the output diode current optically by controlling the
input photodiode current.
The IL388DAA is designed to be part of the DAA2000
kit which consists of one DL207DAA, one
DM207DAA, and two IL388DAAs.
The DL207DAA and DM207DAA ICs provide the driv-
ers and receivers for the IL388DAA as well as all
other telephone termination functions.
Order Information
Part
IL388DAA
Remarks
Couples AC and DC signals, SMD-8
For additional information on the available options refer to
Option Information.
Absolute Maximum Ratings
T
amb
= 25 擄C, unless otherwise specified
Stresses in excess of the absolute Maximum Ratings can cause permanent damage to the device. Functional operation of the device is
not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute
Maximum Rating for extended periods of the time can adversely affect reliability.
Input
Parameter
Reverse voltage
Forward current
Surge current pulse width < 10
碌s
Power dissipation
Derate linearly from 25 擄C
Junction temperature
T
j
Test condition
Symbol
V
R
I
F
I
PK
P
diss
Value
鈮?/div>
3.0
鈮?/div>
30
鈮?/div>
150
鈮?/div>
150
鈮?/div>
2.0
鈮?/div>
100
Unit
V
mA
mA
mW
mW/擄C
擄C
Document Number 83723
Rev. 1.3, 26-Apr-04
www.vishay.com
1
