The IF-E93 is a high-output, high-speed, green LED housed in a 鈥渃onnector-less鈥?/div>
style plastic fiber optic package. The output spectrum of the green LED is pro-
duced by a Gallium Nitride die which peaks at a wavelength of 530 nm, ideally
mapping to the lowest attenuation window of PMMA plastic core optical fiber.
The device package features an internal LED micro-lens, and the PBT plastic
housing ensures efficient optical coupling into standard 1000 碌m core plastic
fiber cable.
A
P P L I C AT I O N
H
I G H L I G H T S
The high output and fast transition times of the IF-E93 make it suitable for low-
cost digital data links. When coupled to PMMA plastic optical fiber, attenuation
is less than .1 dB/m, as compared to .16 dB/m with commonly used 650 nm
LEDs. Using standard 1 mm core plastic fiber, the IF-E93 LED is capable of
distances in excess of 150 meters at data rates of 5 Mbps. The fast rise and fall
times of the IF-E93 permit data rates up to 30 Mbps. The drive circuit design
is simpler than required for laser diodes, making the IF-E93 a good, low-cost
alternative in a variety of analog and digital applications.
T
Y P I C A L
A
P P L I CAT I O N S
鉃?/div>
鉃?/div>
鉃?/div>
鉃?/div>
鉃?/div>
鉃?/div>
鉃?/div>
鉃?/div>
鉃?/div>
鉃?/div>
Local Area Networks (LANs)
Optical Sensors
Medical Instruments
Automotive Displays
Audio Systems
Electronic Games
Robotics Communications
Fiber Optic Modems
Fluorescent Instruments
Wavelength Multiplexing
F
E AT U R E S
x
x
x
x
x
x
x
x
x
Ultra-Low Loss in Plastic Optical Fiber
No Optical Design Required
Mates with Standard 1000 碌m Core Jacketed Plastic Fiber Cable
Internal Micro-Lens for Efficient Coupling
Inexpensive Plastic Connector Housing
Connector-Less Fiber Termination and Connection
Interference-Free Transmission from Light-Tight Housing
Visible Light Output
Fast Rise and Fall Times
M
A X I M U M
R
AT I N G S
(T
A
=25擄C)
Operating and Storage
Temperature Range
(T
OP
,T
STG
) .....................-40擄 to 60擄C
Junction Temperature (T
J
) .............85擄C
Soldering Temperature
(2 mm from case bottom)
(T
S
) t
鈮?/div>
5s .................................240擄C
Reverse Voltage (V
R
).........................5 V
Power Dissipation
(P
TOT
) T
A
=25擄C .....................60 mW
De-rate Above 25擄C ............1.1 mW/擄C
Forward Current, DC (I
F
) ...........35 mA
Surge Current (I
FSM
)
t
鈮?/div>
10 碌s ..................................150 mA
C
HA R A C T E R I S T I C S
(T
A
=25擄C)
Parameter
Peak Wavelength
Spectral Bandwidth (50% of I
MAX
)
Output Power Coupled into Plastic Fiber
(1 mm core diameter). Distance Lens to Fiber
鈮?.1
mm, 1 m polished fiber, IF=20 mA
Switching Times (10% to 90% and 90% to 10%)
(F =33 MHz, I
F
=10 mA)

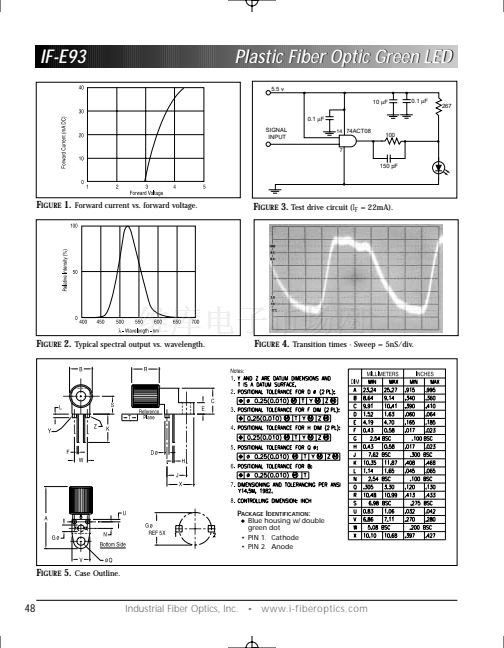

See Figure 3
Capacitance (VF =0, F=1 MHz)
Forward Voltage (IF=20 mA)
Temperature Coefficient,
位
PEAK
Symbol Min.
位
PEAK
鈭單?/div>
桅
min
鈥?/div>
95
-10.2
鈥?/div>
鈥?/div>
鈥?/div>
Typ.
530
50
115
-9.4
3.5, 16
100
3.5
.17
Max.
鈥?/div>
135
-.87
鈥?/div>
鈥?/div>
鈥?/div>
Unit
nm
nm
碌W
dBm
ns
pF
V
nm/K
tr, tf
C0
Vf
TC
位
Industrial Fiber Optics, Inc.
鈥?/div>
www.i-fiberoptics.com
47
