IDT74CBTLV6800Q Datasheet

  • IDT74CBTLV6800Q

  • BUS SWITCH|CMOS|SSOP|24PIN|PLASTIC

  • 126.65KB

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

IDT74CBTLV6800
LOW-VOLTAGE 10-BIT BUS SWITCH WITH PRECHARGED OUTPUTS
INDUSTRIAL TEMPERATURE RANGE
LOW-VOLTAGE 10-BIT
BUS SWITCH WITH
PRECHARGED OUTPUTS
FEATURES:
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
Functionally equivalent to QS3800
5鈩?A/B bi-directional switch
Isolation Under Power-Off Conditions
Over-voltage tolerant
Latch-up performance exceeds 100mA
V
CC
= 2.3V - 3.6V, normal range
ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
Available in SSOP, QSOP, and TSSOP packages
IDT74CBTLV6800
DESCRIPTION:
The CBTLV6800 provides 10-bits of high-speed bus switching with low
on-state resistance of the switch allowing connections to be made with
minimal propagation delay. The device also precharges the B port to a
user-selectable bias voltage (BIASV) to minimize live-insertion noise.
The CBTLV6800 is organized as a single 10-bit bus switch with a single
output-enable (OE) input. When
OE
is low, the 10-bit bus switch is on and
port A is connected to port B. When
OE
is high, the switch is open, and a
high impedance state exists between the two ports, and port B is precharged
to BIASV through the equivalent of a 10-k鈩?resistor.
To ensure the high-impedance state during power up or power down,
OE
should be tied to V
CC
through a pullup resistor; the minimum value of
the resistor is determined by the current-sinking capability of the driver.
APPLICATIONS:
鈭?/div>
3.3V High Speed Bus Switching and Bus Isolation
FUNCTIONAL BLOCK DIAGRAM
SIMPLIFIED SCHEMATIC, EACH
SWITCH
13
A1
2
23
SW
BIA SV
B1
A
B
A10
11
SW
14
B10
OE
1
OE
INDUSTRIAL TEMPERATURE RANGE
1
c
2001 Integrated Device Technology, Inc.
APRIL 2001

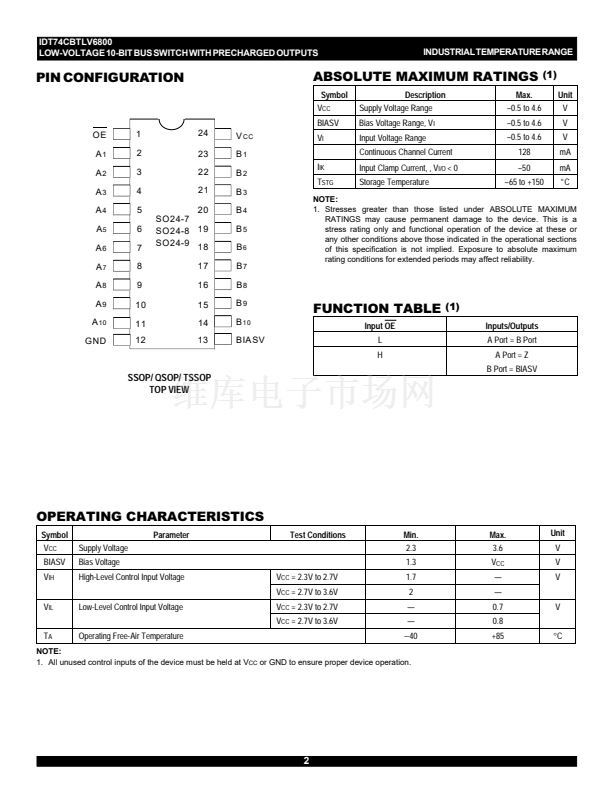

DSC-5739/-
