ICP-S Datasheet

  • ICP-S

  • Overcurrent Protection Elements

  • 14頁

  • ROHM

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

ICP-S Technical Manual
Overcurrent Protection Elements
ICP-S Technical Manual
ICP-S
1. Overview
The ICP-S is an IC protector of surface mounting type developed as an element for the protection of ICs from output
short-circuiting damage. The internal resistance of this lightweight, compact overcurrent protection element is low, as long
as the steady-state current of the element does not exceed the rated DC or AC current. The ICP-S, however, turns off ICs
instantly if the steady-state current reaches or exceeds the breaking current of the ICP-S.
2. External Dimensions (Unit: mm)
3.0鹵0.1
蠁1.5
+0.1
鈭?
4.0鹵0.1
4.0鹵0.1
2.0鹵0.05
3.5鹵0.05
1.75鹵0.1
0.4鹵0.1
3.2鹵0.2
2.0鹵0.1
1.55鹵0.1
3.5鹵0.2
5.3鹵0.2
蠁1.15鹵0.1
2.5鹵0.1
0~0.5
8.0鹵0.2
0~0.1
0.6
1.0
1.8鹵0.1
TN direction
2.8鹵0.2
2.3鹵0.2
(Mark: TN)
3. Features

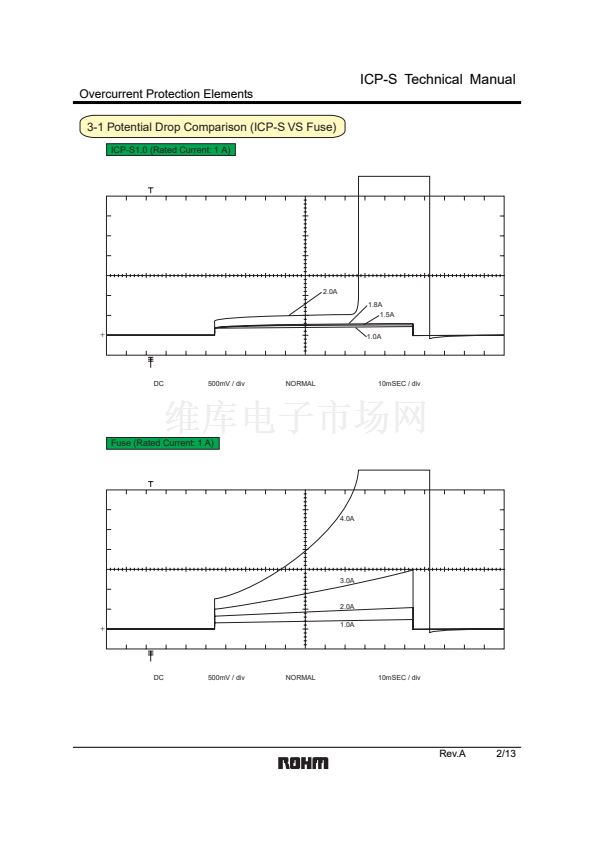

1) Instantly breaks currents with a low potential drop.
(See 3-1 Potential Drop Comparison)
2) Compact surface-mounting model.
(See 2. External Dimensions)
3) Unlike fuses, there is no steady-state current reduction with the rated current applied. No derating is necessary.
4) Minimal breaking point dispersion.

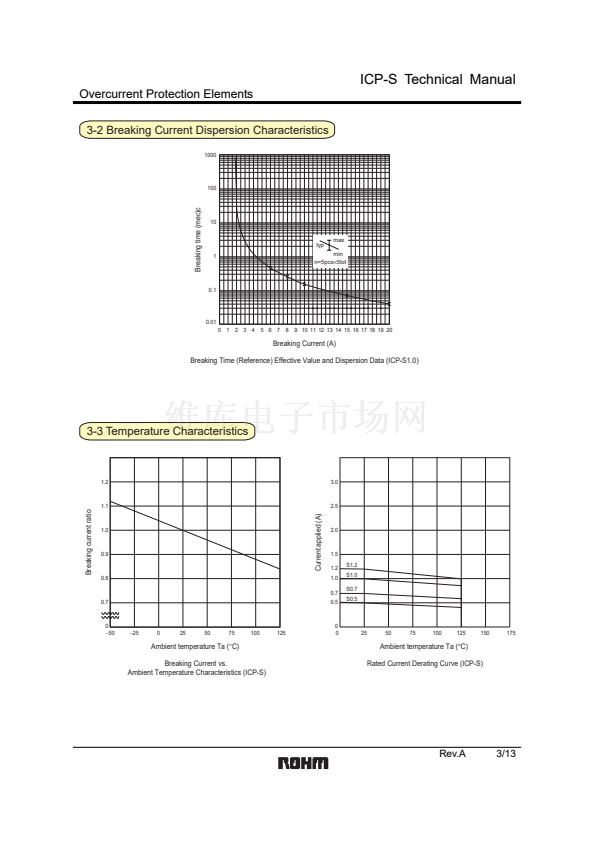

(See the graph in 3-2 Breaking Current Dispersion
Characteristics)
5) Excellent temperature characteristics
(See the graphs in 3-3 Temperature Characteristics)
鈥?The fluctuation of the breaking current caused by temperature changes is minimal.
鈥?Wide operating temperature range:
鈭?5擄C
to
+125擄C
6) Excellent vibration resistance.
7) UL-approved product with certification No. 107856.
8) No deterioration or circuit breaking caused by static electricity.
Rev.A
1/13
