The ICG series of Gain Blocks are general purpose gain
stages consisting of Broadband MMIC amplifiers in a
Darlington configuration. The amplifiers housed in a low-
cost surface mountable package provide a high output
intercept point, high gain and low noise figure and do not
require an external bias resistor.
The ICG2130 can be used for amplification in IF and RF
applications from 100 MHz to 3000 MHz. The amplifier
provides a gain of 17dB typically at 850 MHz and has
single ended input and output, internally matched to 50
Ohms. The device can be operated with a single +3V
supply.
The IC is available in industry standard 6L-SOT23
package.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
IF or RF Buffer Amplifier
Driver/Pre-Driver for CATV/SAT TV Amplifier
VCO Buffer Driving Up/Down Converter
General Rx/Tx Amplification
LNB IF Path
ISM Band Transceivers - WLAN - IEEE 802.11,
Bluetooth
ISO/EPC Compliant UHF RFID Readers

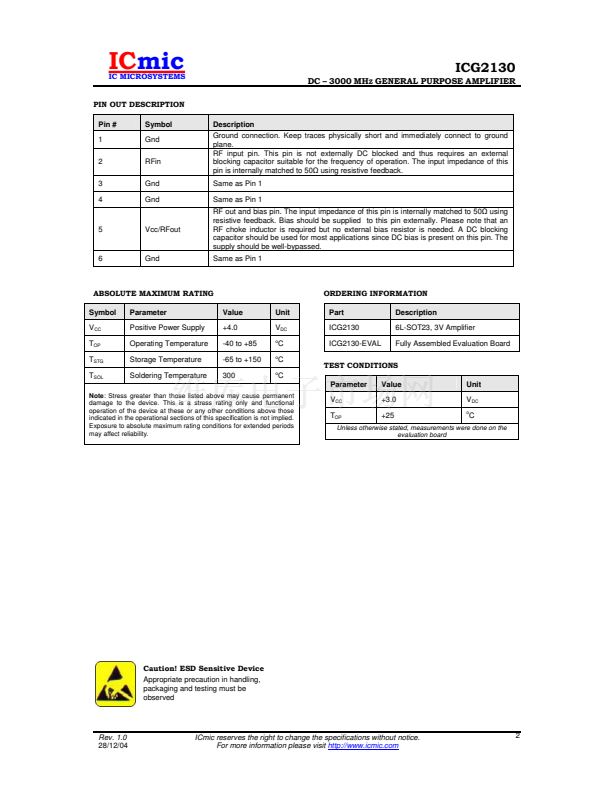

Gnd
1
Bias
6
Gnd
RFin
2
5
Vcc / RFout
Gnd
3
4
ICG2130
Gnd
! "
Gnd
1
6
Gnd
6L-SOT23
IC
CM 2130
I
G
IC
Rfin
2
ICG2130
5
Vcc / RFout
Gnd
3
4
Gnd
Performance tests for ICmic products were performed internally by ICmic and measured using specific systems and/or components. Any difference in circuit implementation, test software, or test equipment
may affect actual performance. The information provided herein is believed to be reliable at the time of this printing. ICmic assumes no responsibility for the use of this information and/or the described
product(s). Prices and specifications are subject to change without notice. Copyright 2004 IC MICROSYSTEMS SDN. BHD. All worldwide rights reserved
Rev. 1.0
28/12/04
ICmic reserves the right to change the specifications without notice.
