FSCT11A-UH5 Datasheet

  • FSCT11A-UH5

  • FAN SPEED CONTROLER

  • 11頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
FSCTxxA-UH5
A.S.D.
TM
Application Specific Discretes
FAN SPEED CONTROLER
APPLICATIONS
COMPUTER AND SERVER POWER SUPPLY
TELECOM
LOW COST VENTILATION (consumer)
s
s
s
FEATURES
Built in thermal sensor
Brushless DC fan speed control
Linear control and regulation of the fan speed
according to the temperature
Green OFF mode operation with automatic
turn- ON in case of overtemperature
Voltage limitation above fan stall voltage
No external NTC required
s
s
s
s
s
s
5
1
IPPAK
Fig. 1:
Block Diagram.
ON
BENEFITS
Low cost integrated fan speed control
High integration: only one or two external com-
ponents
Reduced acoustic noise because of the linear
control of the external transistor
Power supply noise rejection
Good thermal coupling with heater
Reduced ON/OFF oscillation because of large
hysteresis
High current capability (base current higher
than 10 mA)
Higher accuracy than discrete circuit with NTC
s
s
s
s
s
s
s
s
BIAS
FSCTxxA-UH5
F
V
CC
VOLTAGE
REF.
ON/OFF
LOW
HYSTERESIS
COMPARATOR
HYST.-EN
ON/OFF
HIGH
ON
REGULATION
OUT
TEMP.
SENSOR
V
T
DRIVER
C
OUT
=
100nF
GND
GENERAL DESCRIPTION
The FSCTxxA-UH5 is a high-integrated low cost fan speed controller suitable for PC desktops, notebooks
and server power supplies and also all kind of equipments where low cost ventilation system is needed. An
internal thermal sensor connected to the tab is used to regulate the fan speed. A continuous analog voltage
proportional to the tab temperature is produced at the OUT terminal and can control linearly an external
PNP transistor (Fan Transistor) connected in series with a Brushless DC Fan, in order to vary its speed.
The ON control terminal can be used to select two operation modes. If not connected (high impedance
state) ON mode is selected by default.
In Mode ON, the fan speed is regulated according to the tab temperature of the FSCT by adjusting the Vbe
voltage of the PNP fan Transistor. In low temperature conditions, the fan transistor voltage is limited to
about 5.5V (for a 12V fan) in order to guarantee a minimum voltage across the fan above its stalling voltage

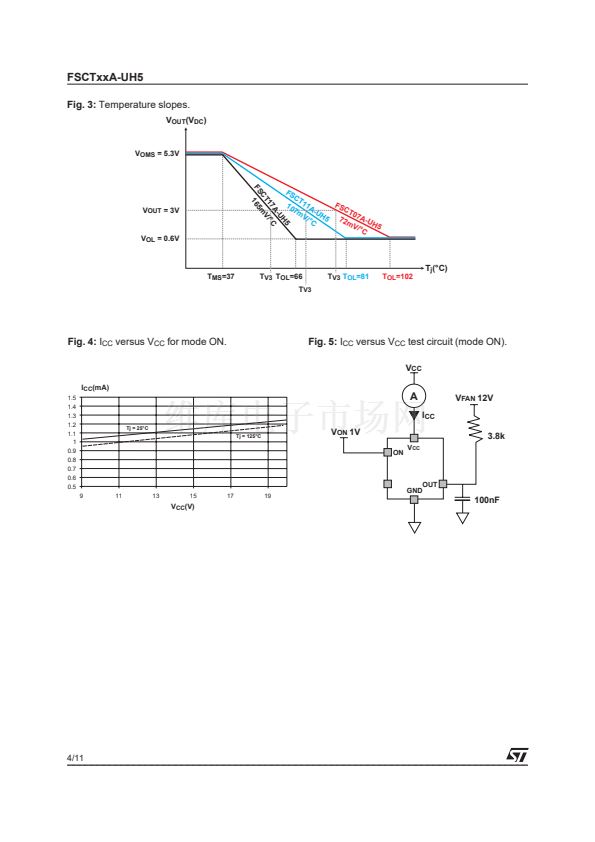

and to keep it running (see figure 3).
This regulation is implemented with a high Fan supply voltage rejection.
The mode OFF allows to operate in green Mode. The fan is stopped as long as the temperature remains
below the TON threshold. When the temperature rises above TON the fan is forced to ON and the speed is
regulated according to the temperature as in the same way as mode ON. When temperature falls below
TOFF, the fan is automatically turned OFF. The hysteresis has been dimensioned large enough to reduce
ON/OFF oscillations during the green mode operation.
September 2003 - Ed: 2A
1/11

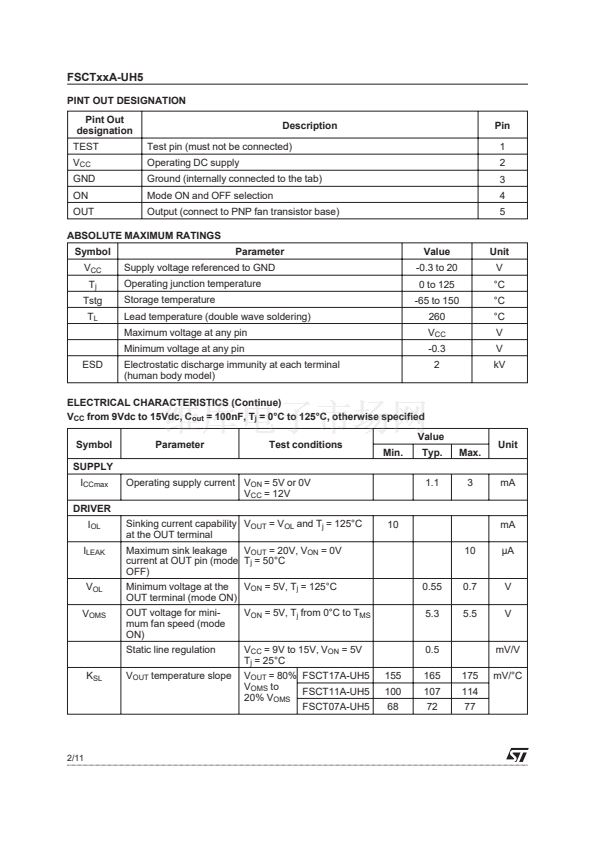

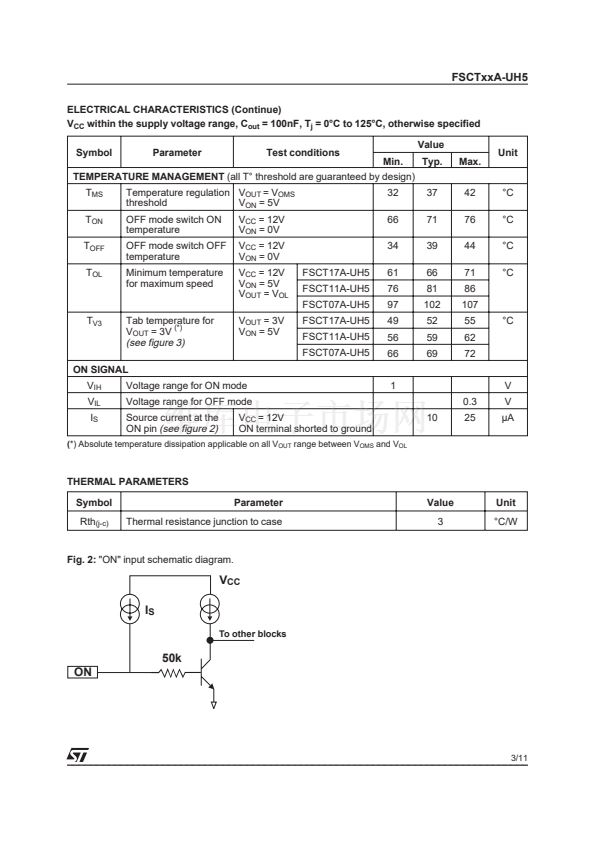

FSCT11A-UH5 產品屬性

  • 3,000

  • 集成電路 (IC)

  • PMIC - 電機和風扇控制器，驅動器

  • -

  • 風扇控制器

  • -

  • 1

  • -

  • -

  • 9 V ~ 15 V

  • 0°C ~ 125°C

  • 表面貼裝

  • IPPAK-5

  • 5-IPPAK

  • 管件
