Chip Schottky Barrier Diodes
FM140-MH-1
Silicon epitaxial planer type
Formosa MS
SOD-123H
0.146(3.7)
0.130(3.3)
0.012(0.3) Typ.
Features
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O Utilizing Flame
Retardant Epoxy M
olding Compound.
For surface mounted applications.
Exceeds environmental standards of MIL-S-19500 /
228
Low leakage current.
0.071(1.8)
0.055(1.4)
0.035(0.9)
0.028(0.7)
0.031(0.8) Typ.
0.031(0.8) Typ.
Mechanical data
Case : Molded plastic, JEDEC SOD-123H
Terminals : Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity : Indicated by c athode band
Mounting P
osition : Any
Weight : 0.0393 gram
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(AT T
A
=25
o
C unless otherwise noted)
PARAMETER
Forward rectified current
Forward surge current

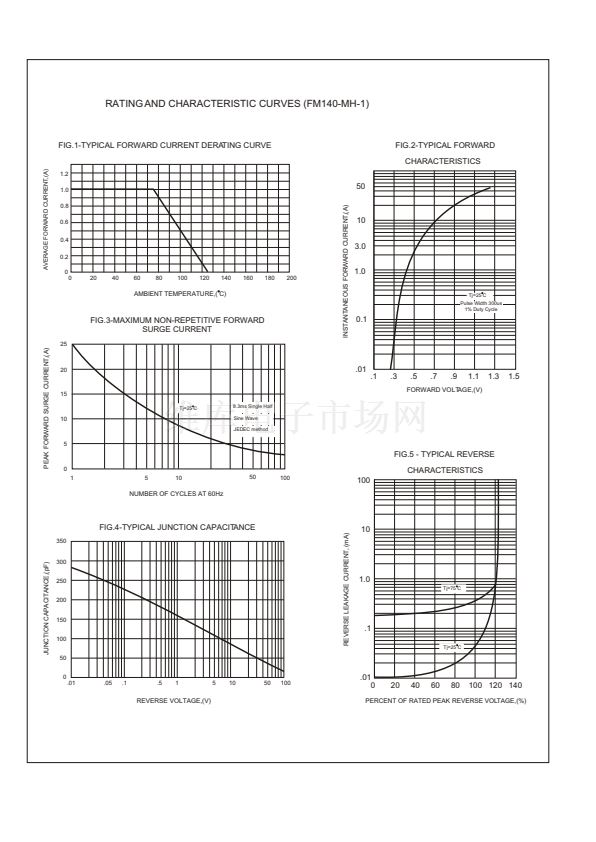

See Fig.1
8.3ms single half sine-wave superimposed on
rate load (JEDEC methode)
V
R
= V
RRM
T
A
=
25
o
C
o
CONDITIONS
Symbol
I
O
I
FSM
MIN.
TYP.
MAX.
1.0
25
0.5
10
UNIT
A
A
mA
mA
o
Reverse current
Thermal resistance
Diode junction capacitance
Storage temperature
I
R
Rq
JA
C
J
T
STG
-55
98
120
V
R
= V
RRM
T
A
= 125 C
Junction to ambient
f=1MHz and applied 4vDC reverse voltage
C / w
pF
+150
o
C
*1 Repetitive peak reverse voltage
SYMBOLS
MARKING
CODE
14
V
RRM
*1
V
RMS
*2
V
R
*3
V
F
*4
Operating
temperature
(
o
C)
-55 to +125
*2 RMS voltage
*3 Continuous reverse voltage
*4 Maximum forward voltage
(V)
FM140-MH-1
40
(V)
28
(V)
40
(V)
0.45
1
2
