FAN5068MPX Datasheet

  • FAN5068MPX

  • DDR-1/DDR-2 plus ACPI Regulator Combo

  • 160.29KB

  • 18頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

www.fairchildsemi.com
FAN5068
DDR-1/DDR-2 plus ACPI Regulator Combo
Features
鈥?PWM regulator for VDDQ (2.5V or 1.8V)
鈥?Linear LDO regulator generates VTT = VDDQ/2, 1.5A
Peak sink/source capability
鈥?1 independent programable ULDO controllers driving
external N-Channel MOSFET
鈥?ACPI drive and control for 5V DUAL generation
鈥?3.3V Internal LDO for 3V-ALW generation
鈥?300kHz 鏗亁ed frequency switching
鈥?R
DS(ON)
current sensing or optional current sense resistor
for precision over-current detect
鈥?Internal Synchronous Boot diode
鈥?Power Good signal for all voltages
鈥?Input Under-Voltage Lock-Out (UVLO)
鈥?Thermal Shutdown
鈥?Latched Multi-Fault Protection
鈥?24-pin 5x5mm MLP package
General Description
The FAN5068 DDR memory regulator combines a high-
ef鏗乧iency PWM controller to generate the supply voltage,
VDDQ, and a linear regulator to generate VTT, the termina-
tion voltage. Synchronous recti鏗乧ation provides high-
ef鏗乧iency over a wide range of load currents. Ef鏗乧iency is
further enhanced by using the low-side MOSFET鈥檚 R
DS(ON)
to sense current instead of a series sense resistor.
In S3 mode, only the VDDQ switcher and the 3.3V regula-
tors remain on while the VTT and ULDO regulators are shut
off. To avoid "glitching" the VDDQ output during the transi-
tion from S3 to S0, the three linear regulators use the SS
capacitor to limit their slew rates, thereby limiting the surge
current from the VDDQ output. PGOOD becomes true in S0
only when all 3 regulators have achieved stable outputs.
In S5 (EN = 0), the 3.3V internal LDO stays on, while the
other regulators are powered down.
The VDDQ PWM regulator is a sampled current mode con-
trol with external compensation to achieve fast load transient
response and provide system design optimization.
The VTT regulator derives its reference and takes its power
from the VDDQ PWM regulator output using a precision
internal voltage divider to set its output at 1/2 of VDDQ. The
VTT termination regulator is capable of sourcing or sinking
at least 1.5A peak current.
Applications
鈥?DDR-1/DDR-2 VDDQ and VTT voltage generation with
ACPI support
鈥?Desktop PC's
鈥?Servers
REV. 1.0.1 9/9/04

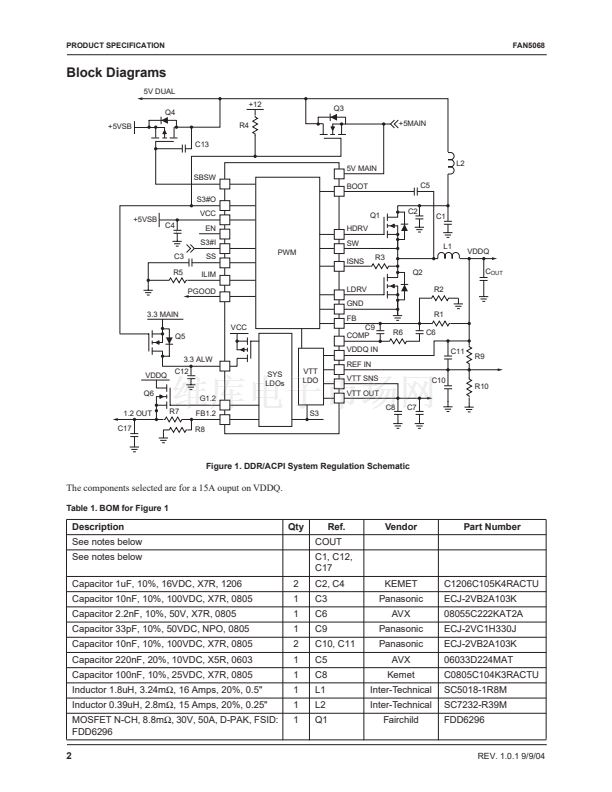

FAN5068MPX 產品屬性

  • 3,000

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 專用型

  • -

  • 控制器，DDR，DDR2

  • 4.5 V ~ 5.5 V

  • 4

  • -

  • -10°C ~ 85°C

  • 表面貼裝

  • 24-MLP

  • 24-MLP（5x5）

  • 帶卷 (TR)

  • FAN5068MPXTRFAN5068MPX_NLFAN5068MPX_NLTRFAN5068MPX_NLTR-ND
