DS3144DK Datasheet

  • DS3144DK

  • Quad DS3/E3 Framer Demo Kit Daughter Card

  • 20頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DS3144DK
Quad DS3/E3 Framer
Demo Kit Daughter Card
www.maxim-ic.com
GENERAL DESCRIPTION
The DS3144DK is an easy-to-use evaluation board
for the DS3144 quad DS3/E3 framer. It is intended to
be used as a daughter card with the DK101
motherboard or the DK2000 motherboard. The
DS3144DK comes complete with a DS3144 quad
framer, DS3154 quad LIU, transformers, termination
resistors, network connectors, and motherboard
connectors. The DK101/DK2000 motherboard and
Dallas鈥?ChipView software give point-and-click
access to configuration and status registers from a
廬
Windows -based PC. On-board LEDs indicate loss-
of-signal, out-of-frame, and interrupt status. An on-
board FPGA contains mux logic to connect framer
ports to one another or to the DK2000 in a variety of
configurations.
Each DS3144DK is shipped with a free DK101
motherboard. For complex applications, the DK2000
high-performance demo kit motherboard can be
purchased separately.
Windows is a registered trademark of Microsoft Corp.
FEATURES
摟
摟
Demonstrates Key Functions of DS3144 Quad
DS3/E3 Framer
Includes DS3154 Quad LIU, Transformers, BNC
Connectors, and Termination Passives for
Communication with Test Equipment over Coax
Compatible with DK101 and DK2000 Demo Kit
Motherboards
DK101/DK2000 and ChipView Software Provide
Point-and-Click Access to the DS3144 Register
Set
All Equipment-Side Framer Pins are Easily
Accessible for External Data Source/Sink
Memory-Mapped FPGA Provides Flexible
Clock/Data/Sync Connections Among Framer
Ports and DK2000 Motherboard
LEDs for Out-of-Frame, Loss-of-Signal, and
Interrupt
Easy-to-Read Silk Screen Labels Identify the
Signals Associated with all Connectors, Jumpers,
and LEDs
摟
摟
摟
摟
摟
摟
DEMO KIT CONTENTS
DS3144DK Demo Kit Daughter Card
DK101 Demo Kit Motherboard
Download from
www.maxim-ic.com/DS3144DK:
DS3144DK Data Sheet
DS3144DK Support Files
ChipView Software
ORDERING INFORMATION
PART
DS3144DK
DESCRIPTION
DS3144 Demo Kit Daughter Card (with
included DK101 motherboard)
1 of
20
REV: 082203

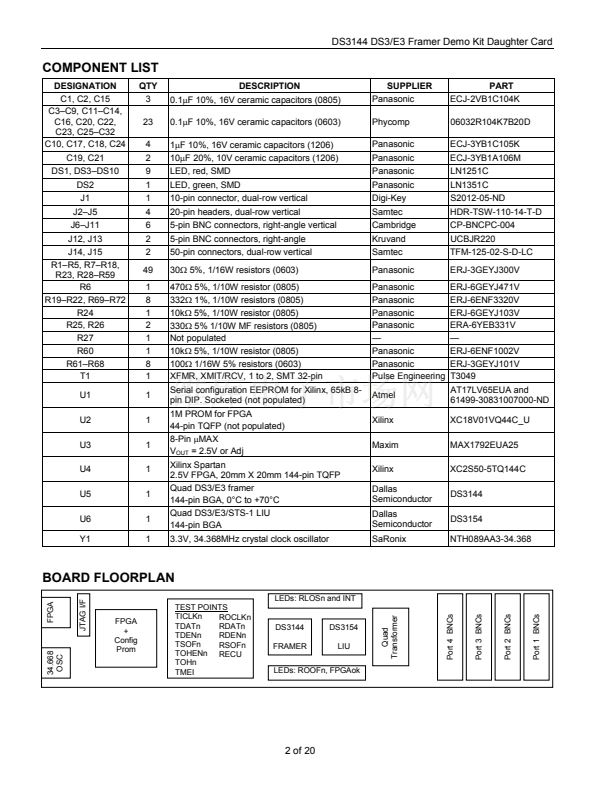

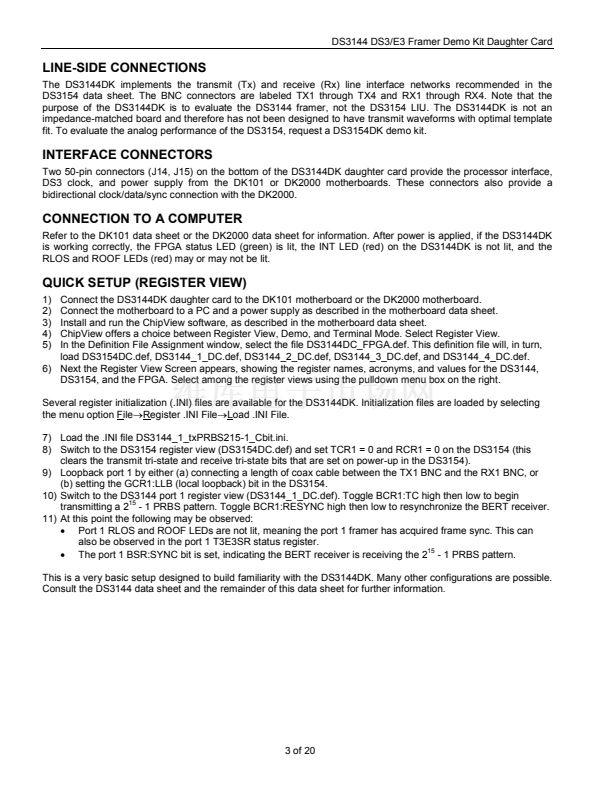

DS3144DK 產品屬性

  • Lead (SnPb) Finish for COTSObsolescence Mitigation Program

  • 1

  • 編程器，開發系統

  • 評估演示板和套件

  • -

  • 電信，調幀器

  • -

  • DS3144

  • -

  • -

  • 主板和子卡組套
