DS1866 Datasheet

  • DS1866

  • Log Trimmer Potentionmeter

  • Dallas   Dallas

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DS1866
Log Trimmer Potentiometer
www.dalsemi.com
FEATURES
摟
Single 8-position Log Trimmer Potentiometer
5-dB/step
摟
Operates from 2.7V to 5.5V supplies
摟
Parallel interface control: P0, P1, P2
摟
Standard Resistance Value: 10 k鈩?/div>
摟
8-pin DIPs; 8-pin (150) SOICs
摟
Operating Temperature Range:
- Industrial: -40擄C to +85擄C
PIN ASSIGNMENT
P0
P1
H
GND
1
2
3
4
8
7
6
5
V
CC
P2
L
W
8-Pin DIP (300-mil)
See Mech. Drawings Section
P0
P1
H
GND
1
2
3
4
8
7
6
5
V
CC
P2
L
W
8-Pin SOIC (150-mil)
See Mech. Drawings Section
PIN DESCRIPTION
H
L
W
V
CC
P0
P1
P2
GND
- High End of Resistor
- Low End of Resistor
- Wiper Terminal
- 3V or 5V Power Supply Input
- Position Select - Bit 0
- Position Select - Bit 1
- Position Select - Bit 2
- Ground
DESCRIPTION
The DS1866 Log Trimmer Potentiometer is a single volatile digital potentiometer having eight positions
with a 5-dB resolution per step. The device provides an ideal method for low-cost trimming or volume
control using a CPU or manual control input. The device鈥?wiper position is set to one of eight positions
s
by a 3-terminal parallel port. The value of the wiper position is determined by the P0, P1, and P2 port
pins.
The DS1866 is available as a 10k potentiometer and is available in an industrial temperature grade.
Additionally, the DS1866 will operate from 3V or 5V supplies and is ideal for portable applications
requiring low standby current. Two packaging options are available and include the 8-pin (300-mil) DIP,
8-pin (150-mil) SOIC.

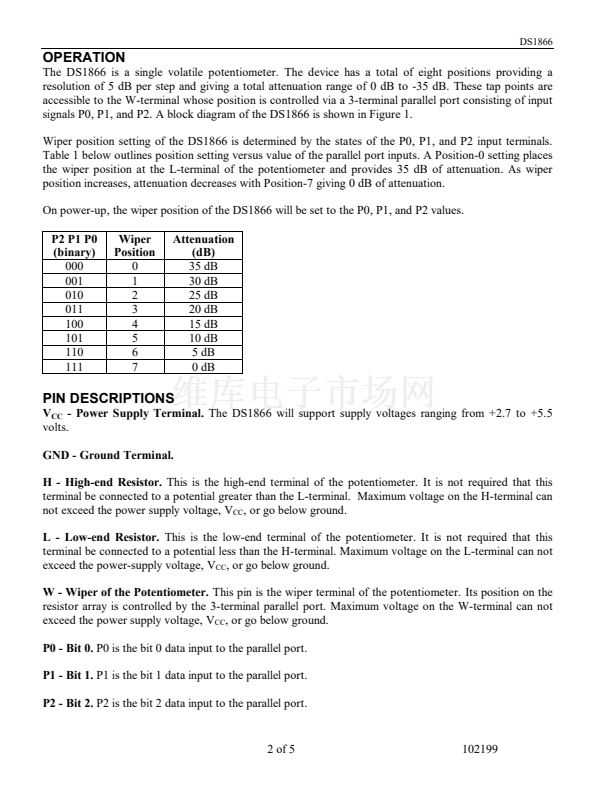

1 of 5
102199

DS1866 產品屬性

  • Lead (SnPb) Finish for COTSObsolescence Mitigation Program

  • 50

  • 集成電路 (IC)

  • 數據采集 - 數字電位器

  • -

  • 8

  • 10k

  • 1

  • 標準值 750 ppm/°C

  • 易失

  • 3 輸入并口

  • 2.7 V ~ 5.5 V

  • -40°C ~ 85°C

  • 通孔

  • 8-DIP（0.300"，7.62mm）

  • 8-PDIP

  • 管件
