DS1821S Datasheet

  • DS1821S

  • (461.21 k)

  • 17頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

ma
PRELIMINARY
DS1821
Programmable Digital Thermostat and
Thermometer
www.dalsemi.com
FEATURES
Requires no external components
Unique 1-Wire
廬
interface requires only one
port pin for communication
Operates over a -55擄C to +125擄C (67擄F to
+257擄F) temperature range
Functions as a standalone thermostat with
user-definable trip-points
Provides 8-bit (1擄C resolution) centigrade
temperature measurements
Accuracy is
鹵1擄C
over 0擄C to +85擄C range
Converts temperature to a digital word in 1
second (max)
Available in 3-pin PR35 and 8-pin SOIC
packages
Applications include thermostatic controls,
industrial systems, consumer products,
thermometers, or any thermally sensitive
system
PIN ASSIGNMENT
DQ
DALLAS
1
8
V
DD
NC
NC
NC
DS1821S
DS1821
1 2 3
GND
NC
NC
2
3
4
7
6
5
8-pin 208-mil SOIC
(DS1821S)
(BOTTOM VIEW)
PR35
(DS1821)
PIN DESCRIPTION
GND
DQ
V
DD
NC
- Ground
- Data In/Out and Thermostat Output
- Power Supply Voltage
- No Connect
DESCRIPTION
The DS1821 can function as a standalone thermostat with user-programmable trip-points or as 8-bit
temperature sensor with a 1-wire digital interface. The thermostat trip-points are stored in nonvolatile
memory, so DS1821 units can be programmed prior to system insertion for true standalone operation.
The DS1821 has an operating temperature range of 鈥?5擄C to +125擄C and is accurate to
鹵1擄C
over a range
of 0擄C to +85擄C. Communication with the DS1821 is accomplished through the open-drain DQ pin; this
pin also serves as the thermostat output.
1 of 17
GND
DQ
V
DD
1 2
3
040601

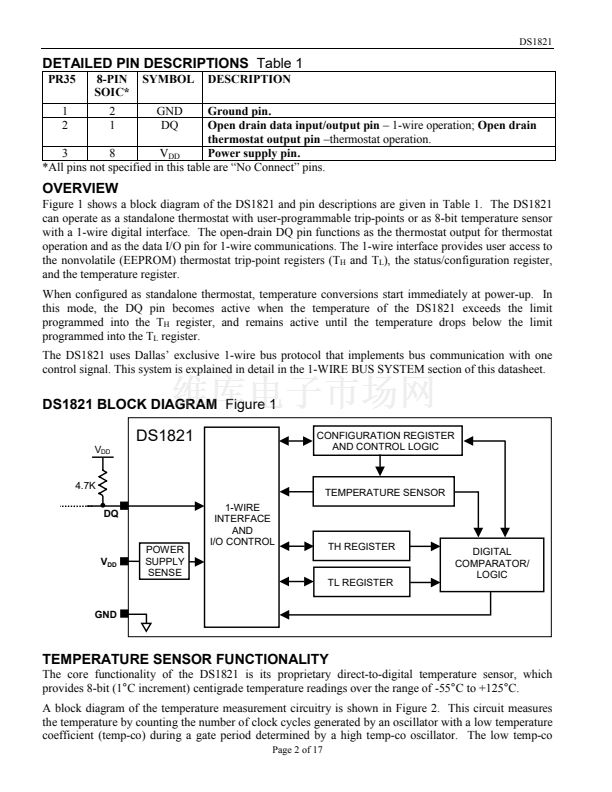

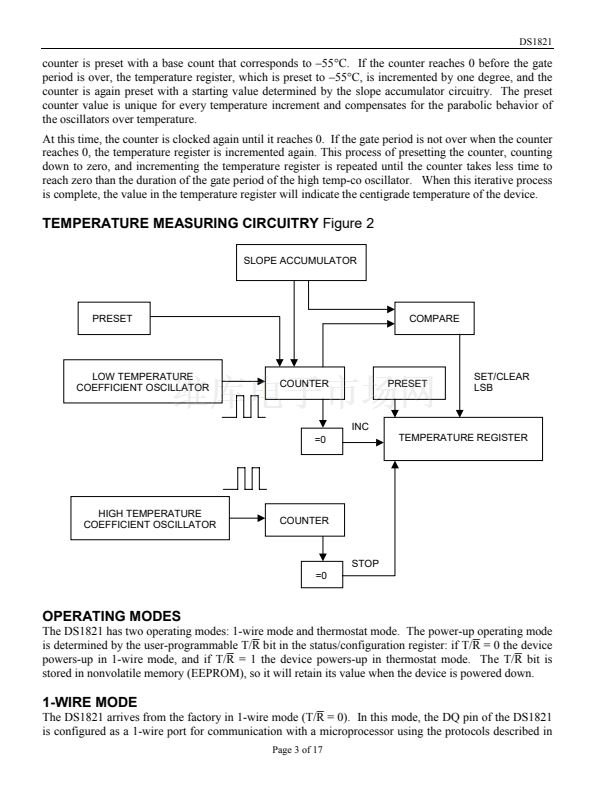

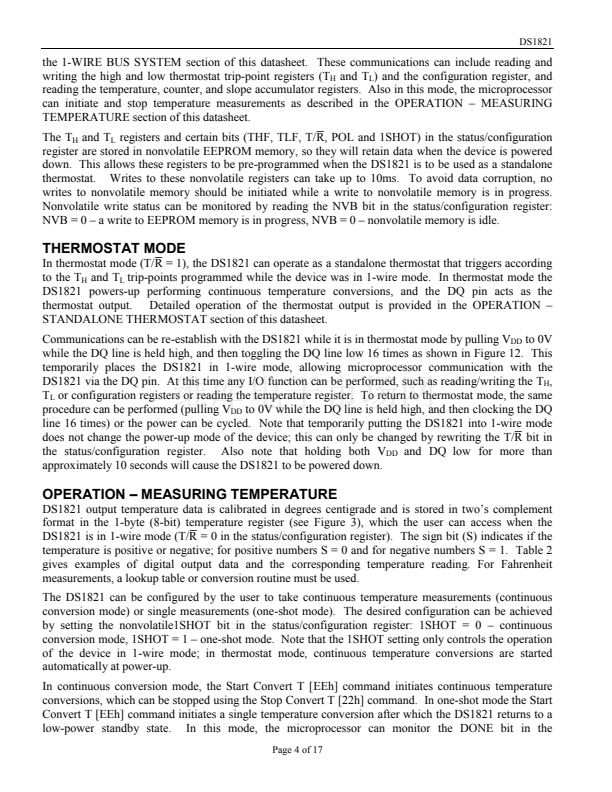

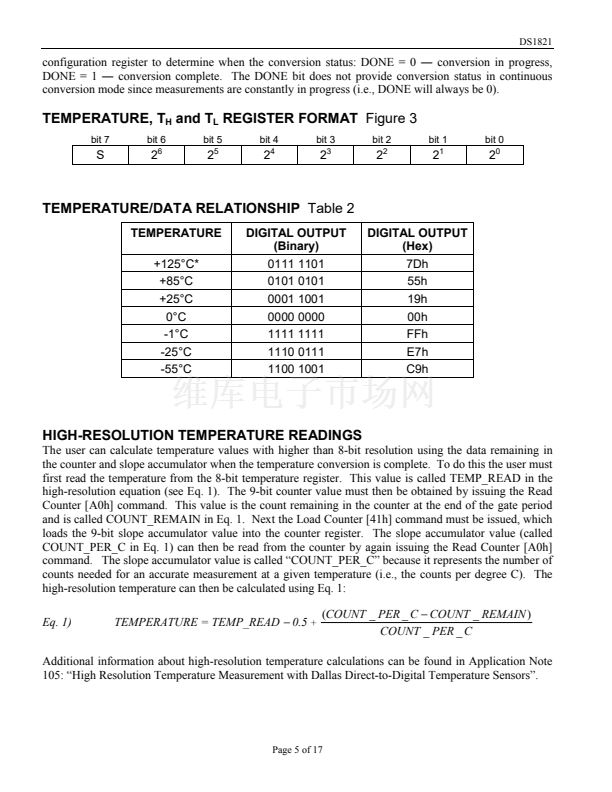

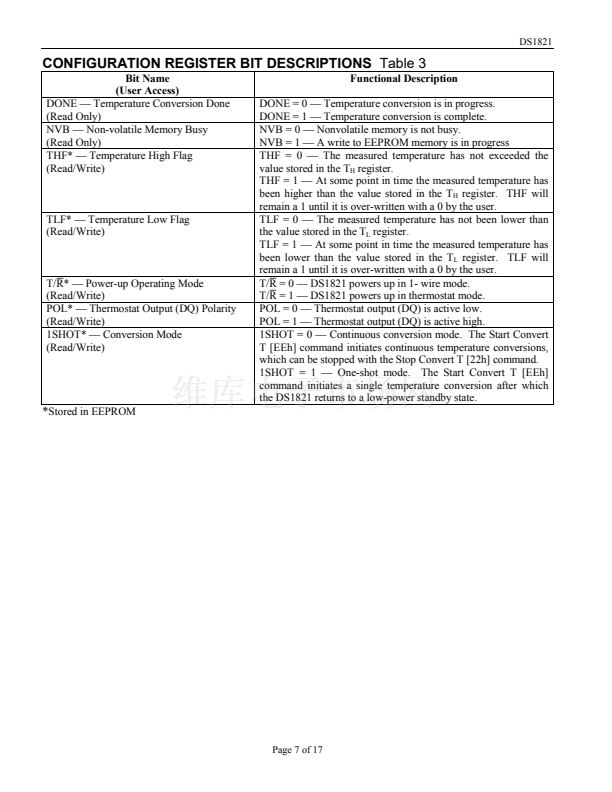

DS1821S 產品屬性

  • Lead (SnPb) Finish for COTSObsolescence Mitigation Program

  • 88

  • 集成電路 (IC)

  • PMIC - 熱管理

  • 1-Wire®

  • 溫度計，恒溫計

  • 內部

  • -55°C ~ 125°C

  • ±1°C（最小值）

  • 數字

  • 無

  • 無

  • 2.7 V ~ 5.5 V

  • -55°C ~ 125°C

  • 表面貼裝

  • 8-SOIC（0.209"，5.30mm 寬）

  • 8-SO

  • 管件
