DIM600DCM17-A Datasheet

  • DIM600DCM17-A

  • IGBT Modules - Chopper

  • 10頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DIM600DCM17-A000
DIM600DCM17-A000
IGBT Chopper Module
DS5491-4.0 April 2003
FEATURES
I
I
I
I
10碌s Short Circuit Withstand
High Thermal Cycling Capability
Non Punch Through Silicon
Isolated MMC Base with AlN Substrates
KEY PARAMETERS
V
CES
(typ)
V
CE(sat)
(max)
I
C
(max)
I
C(PK)
1700V
2.7V
600A
1200A
APPLICATIONS
I
I
I
Choppers
Motor Controllers
Traction Drives
5(E
1
)
1(E1)
2(C2)
6(G
1
)
The Powerline range of modules includes half bridge,
chopper, dual and single switch configurations covering voltages
from 600V to 3300V and currents up to 2400A.
The DIM600DCM17-A000 is a 1700V, n channel
enhancement mode insulated gate bipolar transistor (IGBT)
chopper module. The IGBT has a wide reverse bias safe
operating area (RBSOA) plus full 10碌s short circuit withstand.
This module is optimised for traction drives and other
applications requiring high thermal cycling capability.
The module incorporates an electrically isolated base plate
and low inductance construction enabling circuit designers to
optimise circuit layouts and utilise grounded heat sinks for safety.
7(C
1
)
3(C1)
4(E2)
Fig. 1 Chopper circuit diagram
ORDERING INFORMATION
Order As:
DIM600DCM17-A000
Note: When ordering, please use the whole part number.
Outline type code:
D

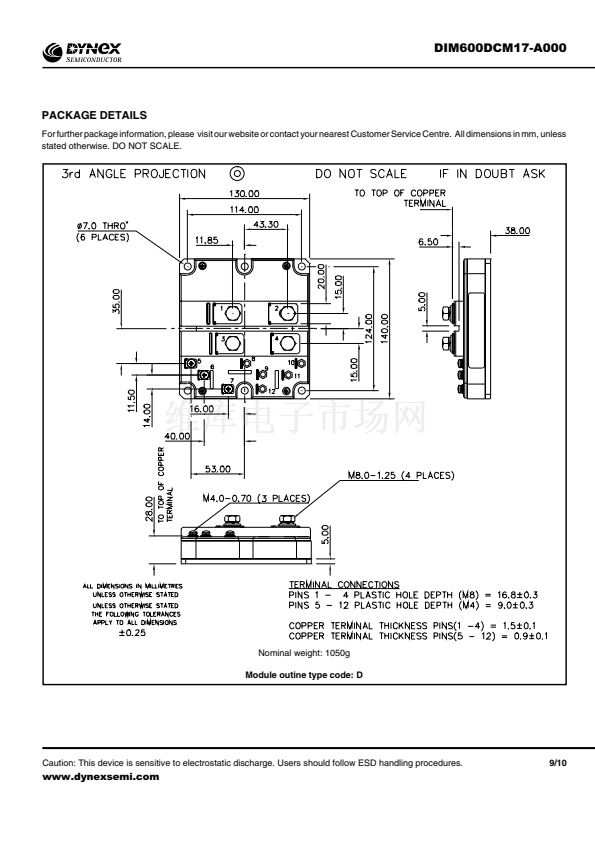

(See package details for further information)
Fig. 2 Electrical connections - (not to scale)
Caution: This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures.
1/10
www.dynexsemi.com
