DIM400PHM17-A Datasheet

  • DIM400PHM17-A

  • IGBT Modules - Half Bridge

  • 10頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DIM400PHM17-A000
DIM400PHM17-A000
Half Bridge IGBT Module

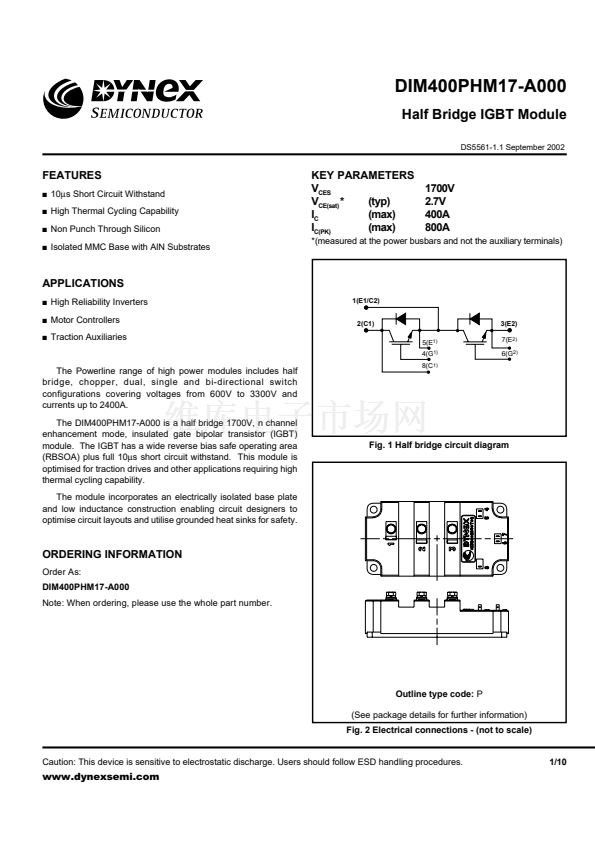

DS5561-1.1 September 2002
FEATURES
s
s
s
s
10碌s Short Circuit Withstand
High Thermal Cycling Capability
Non Punch Through Silicon
Isolated MMC Base with AlN Substrates
KEY PARAMETERS
V
CES
(typ)
V
CE(sat)
*
(max)
I
C
(max)
I
C(PK)
1700V
2.7V
400A
800A
*(measured at the power busbars and not the auxiliary terminals)
APPLICATIONS
s
s
s
High Reliability Inverters
Motor Controllers
Traction Auxiliaries
1(E1/C2)
2(C1)
5(E
1)
4(G
1)
3(E2)
7(E
2)
6(G
2)
The Powerline range of high power modules includes half
bridge, chopper, dual, single and bi-directional switch
configurations covering voltages from 600V to 3300V and
currents up to 2400A.
The DIM400PHM17-A000 is a half bridge 1700V, n channel
enhancement mode, insulated gate bipolar transistor (IGBT)
module. The IGBT has a wide reverse bias safe operating area
(RBSOA) plus full 10碌s short circuit withstand. This module is
optimised for traction drives and other applications requiring high
thermal cycling capability.
The module incorporates an electrically isolated base plate
and low inductance construction enabling circuit designers to
optimise circuit layouts and utilise grounded heat sinks for safety.
8(C
1)
Fig. 1 Half bridge circuit diagram
ORDERING INFORMATION
Order As:
DIM400PHM17-A000
Note: When ordering, please use the whole part number.
Outline type code:
P
(See package details for further information)
Fig. 2 Electrical connections - (not to scale)
Caution: This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures.
1/10
www.dynexsemi.com
