DIM2400ESM12-A Datasheet

  • DIM2400ESM12-A

  • IGBT Modules - Single Switch

  • 10頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DIM2400ESM12-A000
DIM2400ESM12-A000
Single Switch IGBT Module
Replaces July 2002, version DS5536-2.1
DS5529-3.0 March 2003
FEATURES
I
I
I
I
10碌s Short Circuit Withstand
High Thermal Cycling Capability
Non Punch Through Silicon
Isolated MMC Base with AlN Substrates
KEY PARAMETERS
V
CES
(typ)
V
CE(sat)
*
(max)
I
C
(max)
I
C(PK)
1200V
2.2V
2400A
4800A
*(measured at the power busbars and not the auxiliary terminals)
APPLICATIONS
I
I
I
External connection
C1
Aux C
C2
C3
High Reliability Inverters
Motor Controllers
Traction Drives
The Powerline range of high power modules includes half
bridge, chopper, dual, single and bi-directional switch
configurations covering voltages from 600V to 3300V and
currents up to 2400A.
The DIM2400ESM12-A000 is a single switch 1200V, n
channel enhancement mode, insulated gate bipolar transistor
(IGBT) module. The IGBT has a wide reverse bias safe
operating area (RBSOA) plus full 10碌s short circuit withstand.
This module is optimised for applications requiring high thermal
cycling capability.
The module incorporates an electrically isolated base plate
and low inductance construction enabling circuit designers to
optimise circuit layouts and utilise grounded heat sinks for safety.
G
Aux E
E1
E2
External connection
E3
Fig. 1 Single switch circuit diagram
ORDERING INFORMATION
Order As:
DIM2400ESM12-A000
Note: When ordering, please use the whole part number.
Outline type code:
E
(See package details for further information)
Fig. 2 Electrical connections - (not to scale)
Caution: This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures.

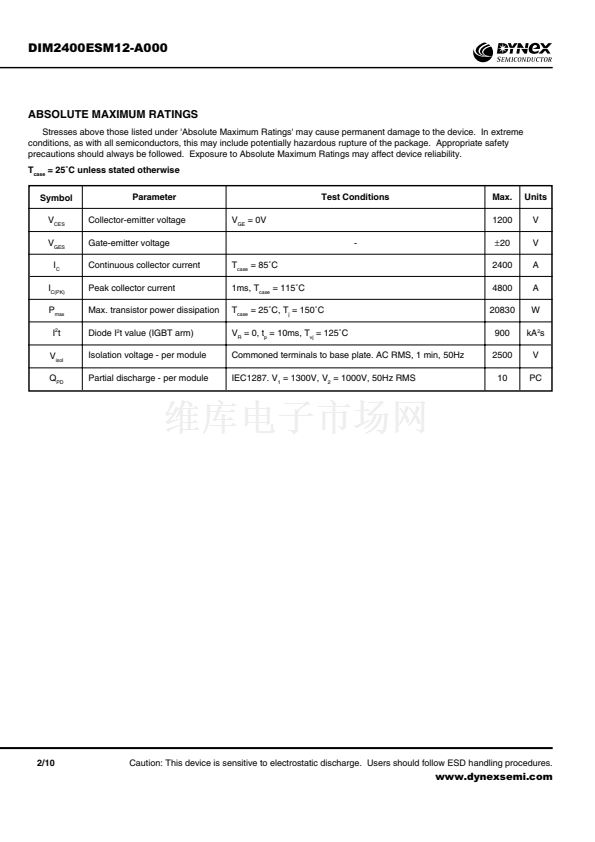

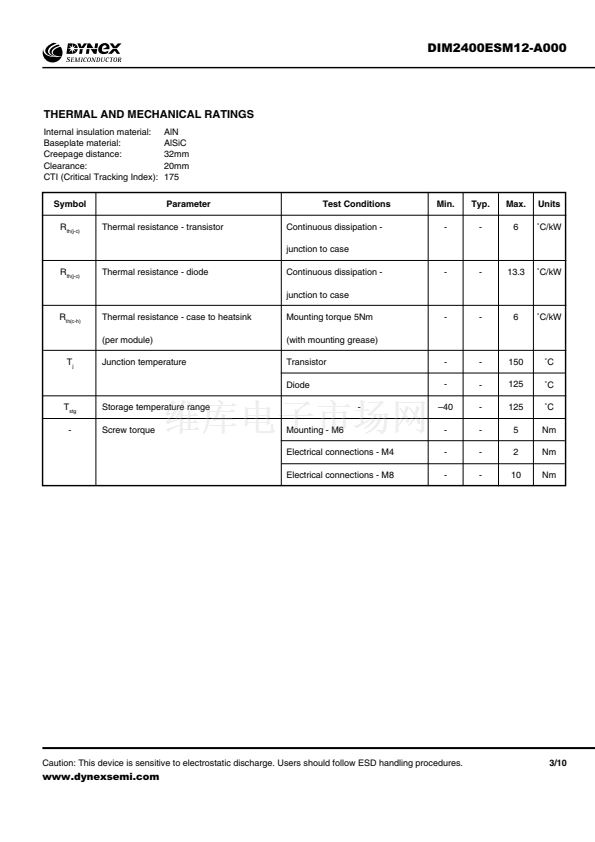

1/10
www.dynexsemi.com
