74FCT540 Datasheet

  • 74FCT540

  • FAST CMOS OCTAL BUFFER/LINE DRIVER

  • 6頁

  • IDT

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

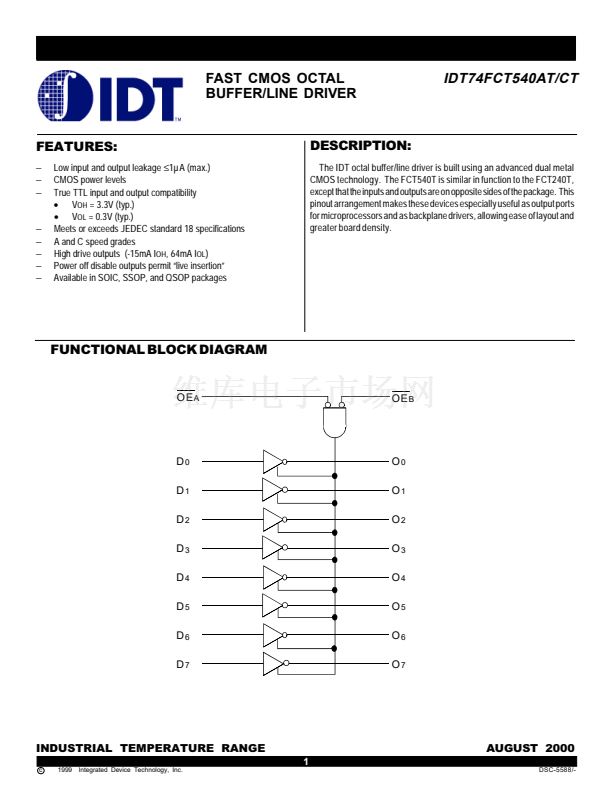

IDT74FCT540AT/CT
FAST CMOS OCTAL BUFFER/LINE DRIVER
INDUSTRIAL TEMPERATURE RANGE
FAST CMOS OCTAL
BUFFER/LINE DRIVER
IDT74FCT540AT/CT
FEATURES:
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
鈭?/div>
Low input and output leakage
鈮?碌
A (max.)
CMOS power levels
True TTL input and output compatibility
鈥?/div>
V
OH
= 3.3V (typ.)
鈥?/div>
V
OL
= 0.3V (typ.)
Meets or exceeds JEDEC standard 18 specifications
A and C speed grades
High drive outputs (-15mA I
OH
, 64mA I
OL
)
Power off disable outputs permit 鈥渓ive insertion鈥?/div>
Available in SOIC, SSOP, and QSOP packages
DESCRIPTION:
The IDT octal buffer/line driver is built using an advanced dual metal
CMOS technology. The FCT540T is similar in function to the FCT240T,
except that the inputs and outputs are on opposite sides of the package. This
pinout arrangement makes these devices especially useful as output ports
for microprocessors and as backplane drivers, allowing ease of layout and
greater board density.
FUNCTIONAL BLOCK DIAGRAM
OE
A
OE
B
D
0
D
1
D
2
D
3
D
4
D
5
D
6
D
7
O
0
O
1
O
2
O
3
O
4
O
5
O
6
O
7
INDUSTRIAL TEMPERATURE RANGE
1
c
1999 Integrated Device Technology, Inc.
AUGUST 2000
DSC-5588/-
