2N5462 Datasheet

  • 2N5462

  • P-Channel General Purpose Amplifier

  • 522.41KB

  • 12頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

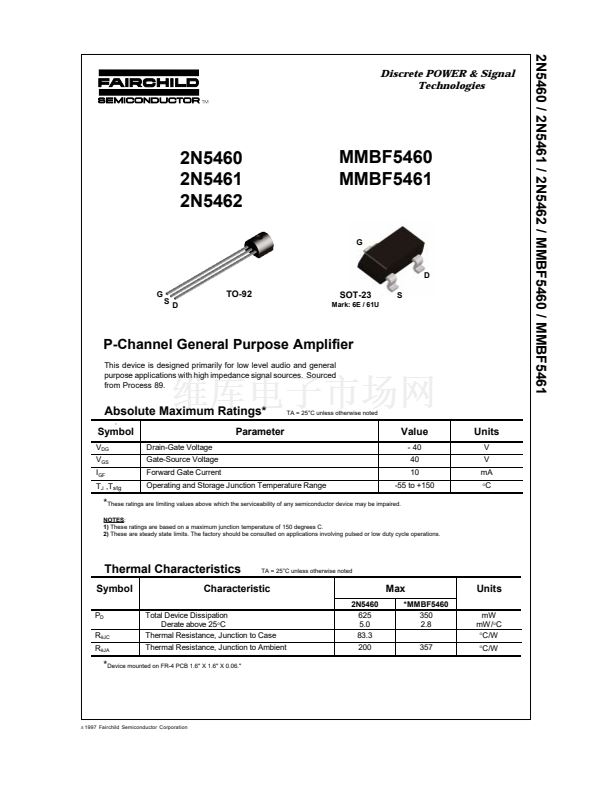

2N5460 / 2N5461 / 2N5462 / MMBF5460 / MMBF5461
Discrete POWER & Signal
Technologies
2N5460
2N5461
2N5462
MMBF5460
MMBF5461
G
D
G
S

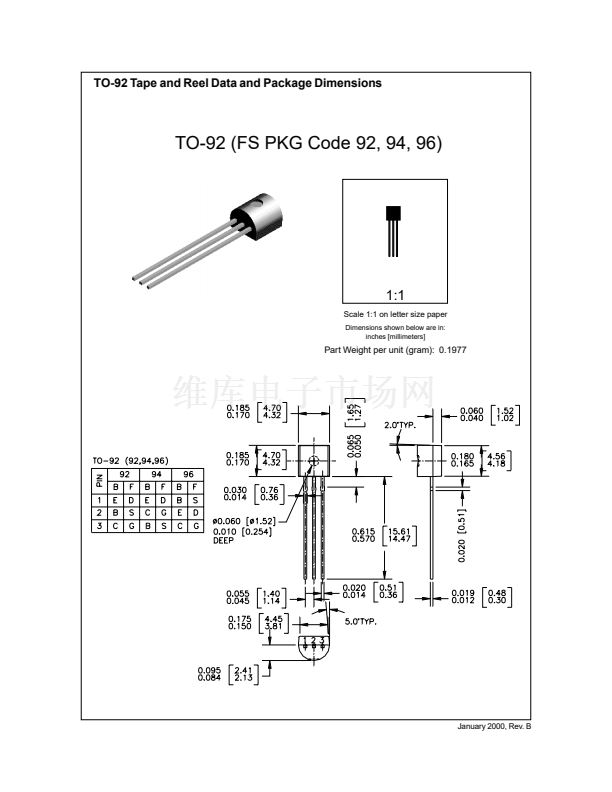

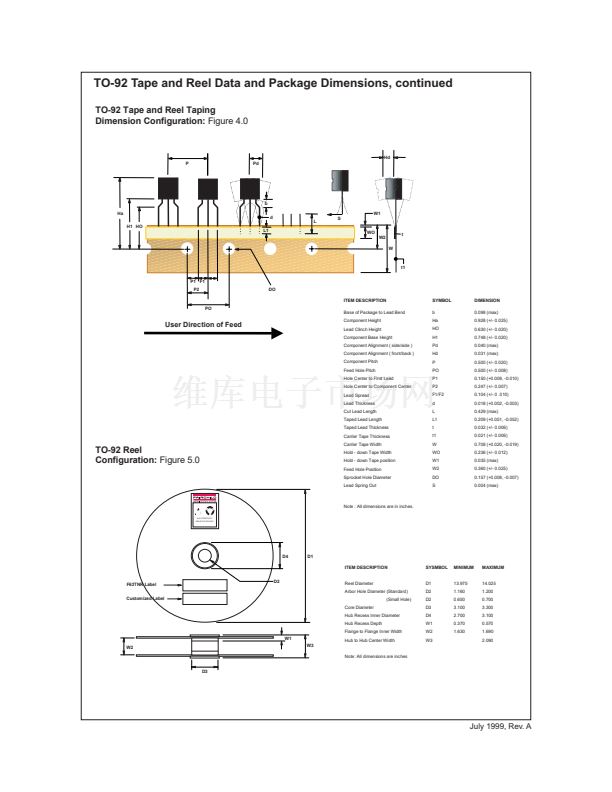

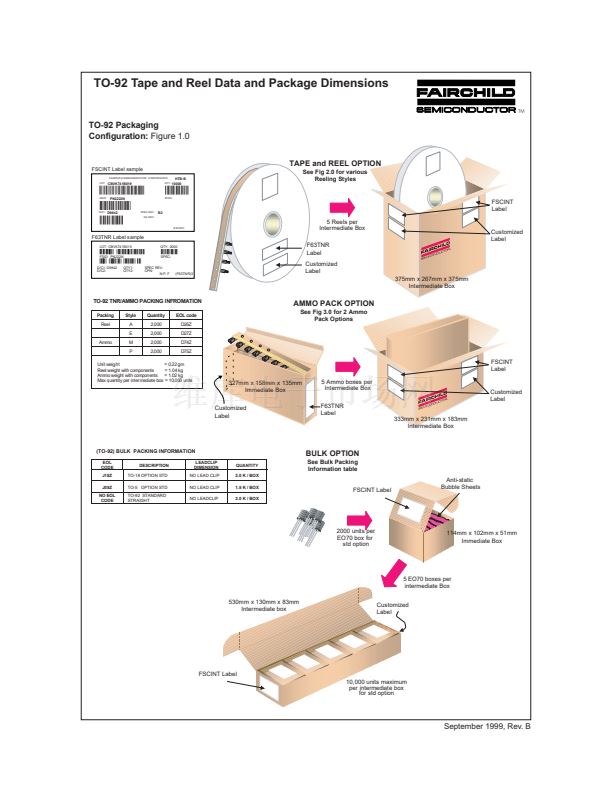

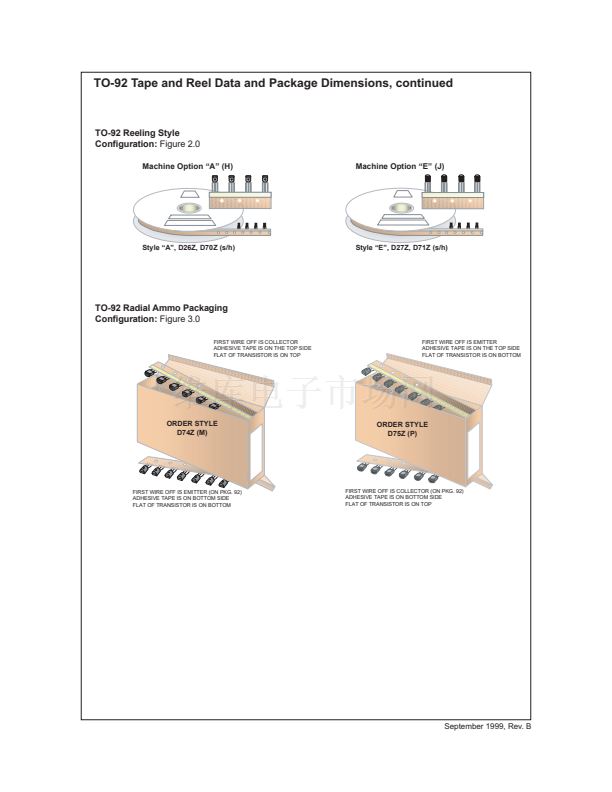

TO-92
D

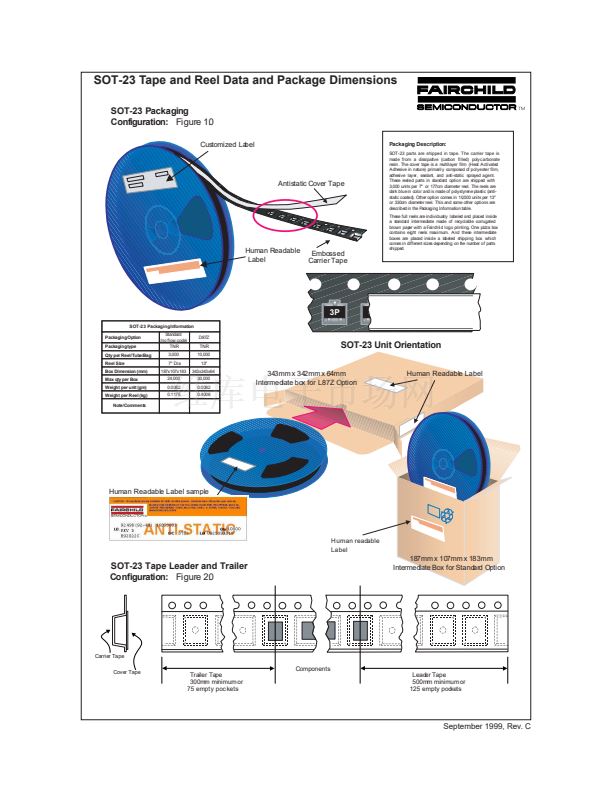

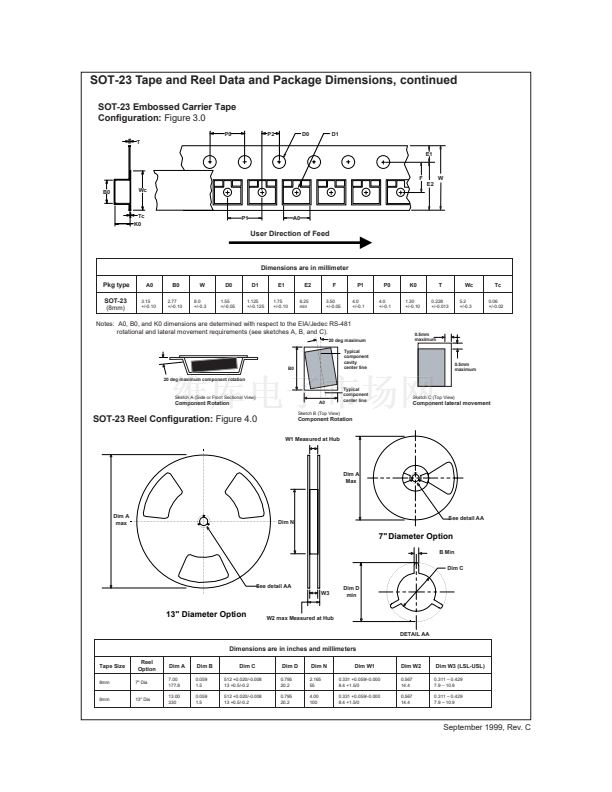

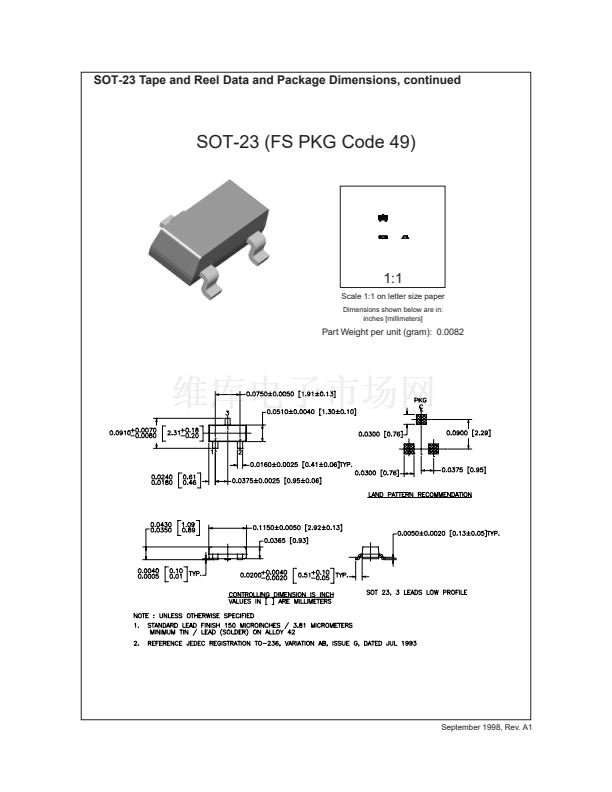

SOT-23
Mark: 6E / 61U
S
P-Channel General Purpose Amplifier
This device is designed primarily for low level audio and general
purpose applications with high impedance signal sources. Sourced
from Process 89.
Absolute Maximum Ratings*
-
TA = 25擄C unless otherwise noted
Symbol
V
DG
V
GS
I
GF
T
J
,T
stg
Drain-Gate Voltage
Gate-Source Voltage
Forward Gate Current
Parameter
Value
- 40
40
10
-55 to +150
Units
V
V
mA
擄C
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
Symbol
P
D
R
胃JC
R
胃JA
TA = 25擄C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25擄C
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
2N5460
625
5.0
83.3
200
Max
*MMBF5460
350
2.8
357
Units
mW
mW/擄C
擄C/W
擄C/W
*
Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."
茫
1997 Fairchild Semiconductor Corporation

2N5462 產品屬性

  • 1,000

  • 分離式半導體產品

  • JFET（結點場效應

  • -

  • 4mA @ 15V

  • -

  • -

  • P 溝道

  • 40V

  • 1.8V @ 1µA

  • 7pF @ 15V

  • -

  • 通孔

  • 散裝

  • TO-226-3、TO-92-3 標準主體

  • TO-92-3

  • 350mW

  • 2N5462OS

2N5462相關型號PDF文件下載
