2N5484 Datasheet

IC型號：
2N5484
PDF描述：
N-Channel JFETs
文件大?。?/label>
85.70KB
芯片廠家：
Vishay

糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

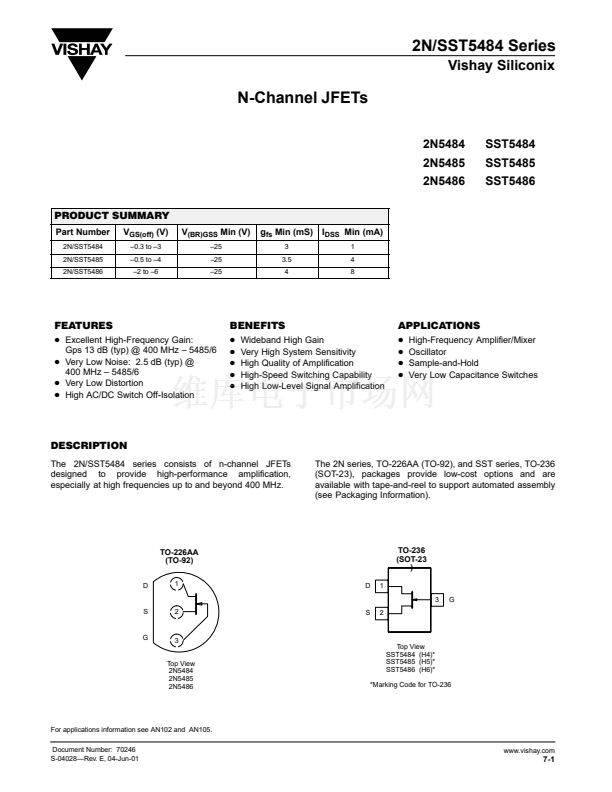

2N/SST5484 Series

Vishay Siliconix

N-Channel JFETs

2N5484

2N5485

2N5486

PRODUCT SUMMARY

Part Number

2N/SST5484

2N/SST5485

2N/SST5486

SST5484

SST5485

SST5486

GS(off)

(V)

鈥?.3 to 鈥?

鈥?.5 to 鈥?

鈥? to 鈥?

(BR)GSS

Min (V)

鈥?5

Min (mS)

3.5

DSS

Min (mA)

FEATURES

Excellent High-Frequency Gain:

Gps 13 dB (typ) @ 400 MHz 鈥?5485/6

Very Low Noise: 2.5 dB (typ) @

400 MHz 鈥?5485/6

Very Low Distortion

High AC/DC Switch Off-Isolation

BENEFITS

Wideband High Gain

Very High System Sensitivity

High Quality of Amplification

High-Speed Switching Capability

High Low-Level Signal Amplification

APPLICATIONS

High-Frequency Amplifier/Mixer

Oscillator

Sample-and-Hold

Very Low Capacitance Switches

DESCRIPTION

The 2N/SST5484 series consists of n-channel JFETs

designed to provide high-performance amplification,

especially at high frequencies up to and beyond 400 MHz.

The 2N series, TO-226AA (TO-92), and SST series, TO-236

(SOT-23), packages provide low-cost options and are

available with tape-and-reel to support automated assembly

(see Packaging Information).

TO-226AA

(TO-92)

TO-236

(SOT-23

)

Top View

2N5484

2N5485

2N5486

Top View

SST5484 (H4)*

SST5485 (H5)*

SST5486 (H6)*

*Marking Code for TO-236

For applications information see AN102 and AN105.

Document Number: 70246

S-04028鈥擱ev. E, 04-Jun-01

www.vishay.com

7-1

2N5484 PDF文件相關型號

2N5485,2N5486,SST5484,SST5485,SST5486

2N5484 產品屬性

標準包裝
2,000
類別
分離式半導體產品
家庭
RF FET
系列
-
晶體管類型
N 通道 JFET
頻率
400MHz
增益
-
電壓 - 測試
15V
額定電流
5mA
噪音數據
4dB
電流 - 測試
-
功率 - 輸出
-
電壓 - 額定
25V
封裝/外殼
TO-226-3、TO-92-3 標準主體
供應商設備封裝
TO-92-3
包裝
散裝
