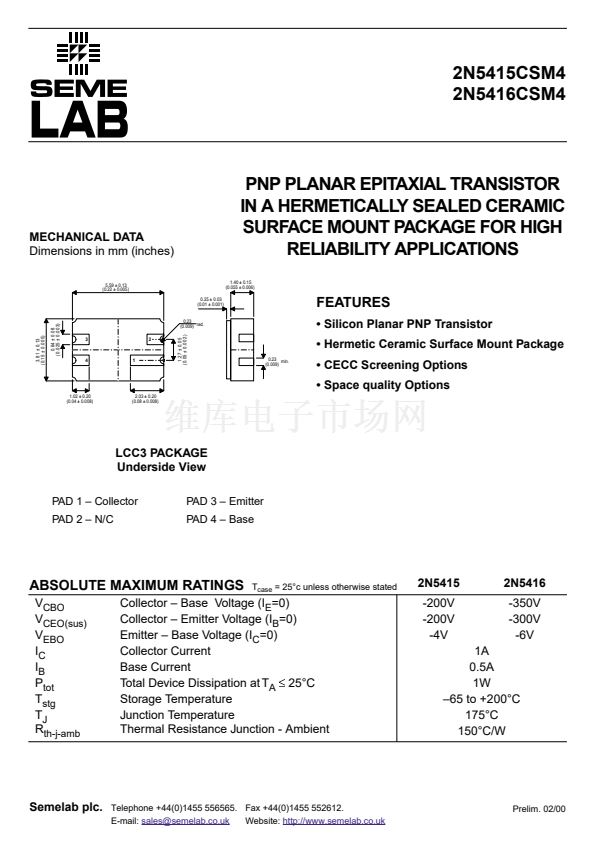

2N5415CSM4
2N5416CSM4
MECHANICAL DATA
Dimensions in mm (inches)
5.59 鹵 0.13
(0.22 鹵 0.005)
0.25 鹵 0.03
(0.01 鹵 0.001)
PNP PLANAR EPITAXIAL TRANSISTOR
IN A HERMETICALLY SEALED CERAMIC
SURFACE MOUNT PACKAGE FOR HIGH
RELIABILITY APPLICATIONS
1.40 鹵 0.15
(0.055 鹵 0.006)
FEATURES
鈥?Silicon Planar PNP Transistor
鈥?Hermetic Ceramic Surface Mount Package
0.23 min.
(0.009)
0.64 鹵 0.08
(0.025 鹵 0.003)
0.23 rad.
(0.009)
3
2
1.27 鹵 0.05
(0.05 鹵 0.002)
3.81 鹵 0.13
(0.15 鹵 0.005)
4
1
鈥?CECC Screening Options
鈥?Space quality Options
1.02 鹵 0.20
(0.04 鹵 0.008)
2.03 鹵 0.20
(0.08 鹵 0.008)
LCC3 PACKAGE
Underside View
PAD 1 鈥?Collector
PAD 2 鈥?N/C
PAD 3 鈥?Emitter
PAD 4 鈥?Base
ABSOLUTE MAXIMUM RATINGS
V
CBO
V
CEO(sus)
V
EBO
I
C
I
B
P
tot
T
stg
T
J
R
th-j-amb
T
case
= 25擄c unless otherwise stated
2N5415
-200V
-200V
-4V
2N5416
-350V
-300V
-6V
Collector 鈥?Base Voltage (I
E
=0)
Collector 鈥?Emitter Voltage (I
B
=0)
Emitter 鈥?Base Voltage (I
C
=0)
Collector Current
Base Current
Total Device Dissipation at T
A
攏
25擄C
Storage Temperature
Junction Temperature
Thermal Resistance Junction - Ambient
1A
0.5A
1W
鈥?5 to +200擄C
175擄C
150擄C/W
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim. 02/00
