ZXSC410
ZXSC420
VOLTAGE MODE BOOST CONVERTER
DESCRIPTION
The ZXSC410 is voltage mode boost converter in SOT23-6 package. Its excellent
load and line regulation means that for the full supply range from lithium Ion cells,
the output voltage will typically change by less than 1%. Using high efficiency
Zetex switching transistors allow output voltages of tens of volts depending on the
selected transistor. The ZXSC420 includes a battery low indicator. This operates
by indicating when the converter is no longer able to maintain the regulated
output voltage rather than setting a preset threshold, thereby making it suitable for
various battery options and load currents.
FEATURES
鈥?/div>
1.65V to 8V supply range
鈥?/div>
Typical output regulation of 鹵1%
鈥?/div>
Over 85% typical efficiency
鈥?/div>
Output currents up to 300mA
鈥?/div>
4.5 A typical shutdown current ZXSC410
鈥?/div>
End of regulation output ZXSC420
SOT23-6
ORDERING INFORMATION
DEVICE
ZXSC410E6TA
ZXSC420E6TA
REEL
SIZE
7鈥?/div>
7鈥?/div>
TAPE
WIDTH
8mm
8mm
QUANTITY
PER REEL
3000 units
3000 units
APPLICATIONS
鈥?/div>
System power for battery portable products
鈥?/div>
LCD bias
鈥?/div>
Local voltage conversion
TYPICAL APPLICATIONS DIAGRAM
L1
V
IN
ZHCS1000
D1
V
OUT
C1
Q1
U1
V
CC
DRIVE
STDN SENSE
GND
V
FB
FMMT617
R2
C2
ZXSC410
R1
R3
DEVICE MARKING
鈥?/div>
C410 ZXSC410
鈥?/div>
C420 ZXSC420
ISSUE 2 - May 2003

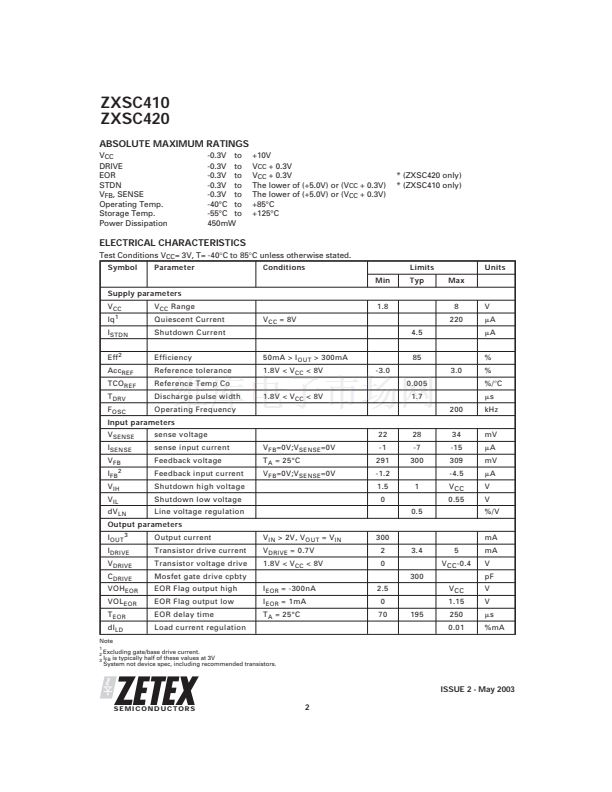

1
SEMICONDUCTORS

ZXSC410E6TA 產品屬性

  • 3,000

  • 集成電路 (IC)

  • PMIC - 穩壓器 - DC DC 切換控制器

  • -

  • 電壓模式

  • 1

  • 200kHz

  • 85%

  • 1.8 V ~ 8 V

  • 無

  • 是

  • 無

  • 無

  • 無

  • 無

  • 無

  • 無

  • -40°C ~ 85°C

  • SOT-23-6

  • 帶卷 (TR)

  • ZXSC410E6TATR
