ZXBM1004 Datasheet

  • ZXBM1004

  • VARIABLE SPEED SINGLE-PHASE BLDC MOTOR CONTROLLER

  • 12頁

  • ZETEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

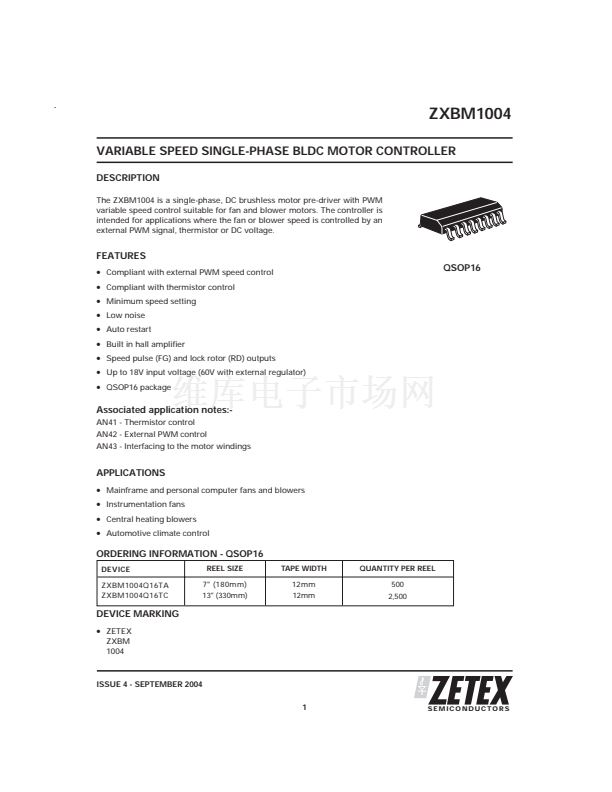

ZXBM1004
VARIABLE SPEED SINGLE-PHASE BLDC MOTOR CONTROLLER
DESCRIPTION
The ZXBM1004 is a single-phase, DC brushless motor pre-driver with PWM
variable speed control suitable for fan and blower motors. The controller is
intended for applications where the fan or blower speed is controlled by an
external PWM signal, thermistor or DC voltage.
FEATURES
鈥?/div>
Compliant with external PWM speed control
鈥?/div>
Compliant with thermistor control
鈥?/div>
Minimum speed setting
鈥?/div>
Low noise
鈥?/div>
Auto restart
鈥?/div>
Built in hall amplifier
鈥?/div>
Speed pulse (FG) and lock rotor (RD) outputs
鈥?/div>
Up to 18V input voltage (60V with external regulator)
鈥?/div>
QSOP16 package
QSOP16
Associated application notes:-
AN41 - Thermistor control
AN42 - External PWM control
AN43 - Interfacing to the motor windings
APPLICATIONS
鈥?/div>
Mainframe and personal computer fans and blowers
鈥?/div>
Instrumentation fans
鈥?/div>
Central heating blowers
鈥?/div>
Automotive climate control
ORDERING INFORMATION - QSOP16
DEVICE
ZXBM1004Q16TA
ZXBM1004Q16TC
REEL SIZE
7" (180mm)
13" (330mm)
TAPE WIDTH
12mm
12mm
QUANTITY PER REEL
500
2,500
DEVICE MARKING
鈥?/div>
ZETEX
ZXBM
1004
ISSUE 4 - SEPTEMBER 2004
1
SEMICONDUCTORS
