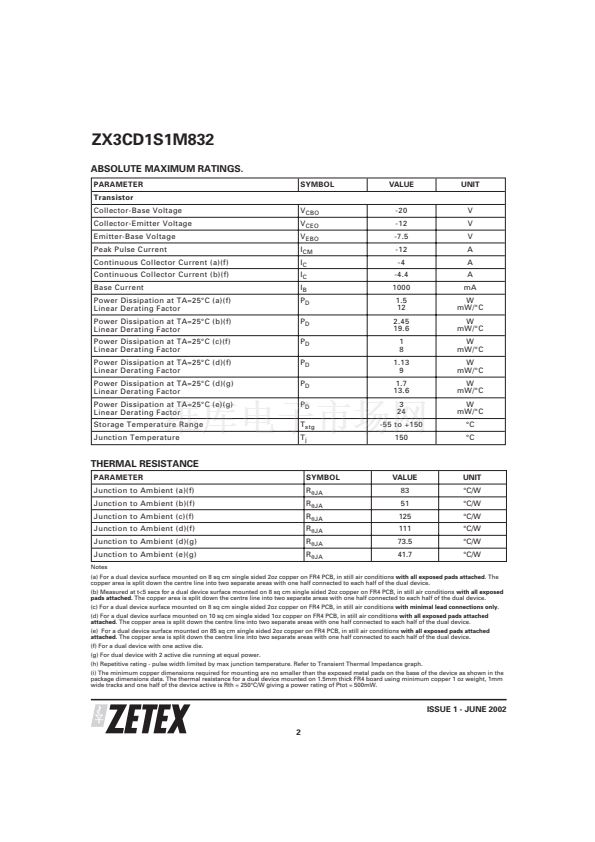

ZX3CD1S1M832
MPPS鈩?Miniature Package Power Solutions
12V PNP LOW SATURATION TRANSISTOR AND 40V, 1A SCHOTTKY
DIODE COMBINATION DUAL
SUMMARY
PNP Transistor
Schottky Diode
DESCRIPTION
Packaged in the new innovative 3mm x 2mm MLP this combination dual
comprises an ultra low saturation PNP transistor and a 1A Schottky barrier
diode. This excellent combination provides users with highly efficient
performance in applications including DC-DC and charging circuits.
Users will also gain several other
key benefits:
Performance capability equivalent to much larger packages
Improved circuit efficiency & power levels
PCB area and device placement savings
Lower package height (0.9mm nom)
Reduced component count
3mm x 2mm Dual Die MLP
V
CEO
=-12V; R
SAT
= 65m ;
C
= -4A
V
R
= 40V; V
F
= 500mV (@1A); I
C
=1A
C
Cathode
FEATURES
鈥?/div>
Extremely Low Saturation Voltage
(-140mV @1A)
鈥?/div>
H
FE
characterised up to -10A
鈥?/div>
I
C
= -4A Continuous Collector Current
鈥?/div>
Extremely Low V
F
, fast switching Schottky
鈥?/div>
3mm x 2mm MLP
B
E
Anode
APPLICATIONS
鈥?/div>
DC - DC Converters
鈥?/div>
Mobile Phones
鈥?/div>
Charging Circuits
鈥?/div>
Motor control
PINOUT
ORDERING INFORMATION
DEVICE
ZX3CD1S1M832TA
ZX3CD1S1M832TC
REEL
7
13
TAPE
WIDTH
8mm
8mm
QUANTITY
PER REEL
3000
10000
3mm x 2mm Dual MLP
underside view
DEVICE MARKING
1S1
ISSUE 1 - JUNE 2002
1
