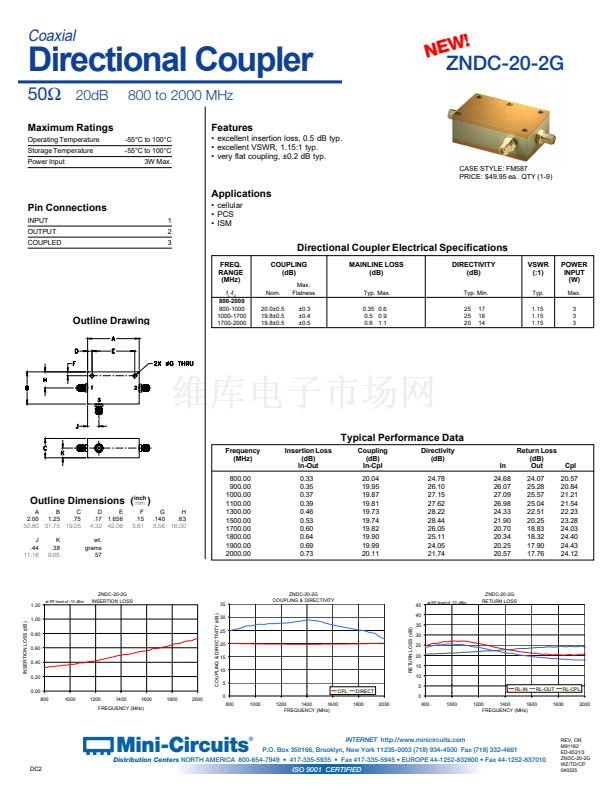

50鈩?/div>
20dB
800 to 2000 MHz
Features
-55擄C to 100擄C
-55擄C to 100擄C
3W Max.
!
NEW
ZNDC-20-2G
Maximum Ratings
Operating Temperature
Storage Temperature
Power Input
鈥?excellent insertion loss, 0.5 dB typ.
鈥?excellent VSWR, 1.15:1 typ.
鈥?very flat coupling, 鹵0.2 dB typ.
CASE STYLE: FM587
PRICE: $49.95 ea. QTY (1-9)
Applications
Pin Connections
INPUT
OUTPUT
COUPLED
1
2
3
FREQ.
RANGE
(MHz)
f
L
-f
U
800-2000
800-1000
1000-1700
1700-2000
鈥?cellular
鈥?PCS
鈥?ISM
Directional Coupler Electrical Specifications
COUPLING
(dB)
Nom.
20.0鹵0.5
19.8鹵0.5
19.8鹵0.5
Max.
Flatness
鹵0.3
鹵0.4
鹵0.5
MAINLINE LOSS
(dB)
Typ. Max.
0.35 0.6
0.5 0.9
0.6 1.1
DIRECTIVITY
(dB)
Typ. Min.
25
25
20
17
18
14
VSWR
(:1)
Typ.
1.15
1.15
1.15
POWER
INPUT
(W)
Max.
3
3
3
Outline Drawing
Typical Performance Data
Frequency
(MHz)
800.00
900.00
1000.00
1100.00
1300.00
1500.00
1700.00
1800.00
1900.00
2000.00
Insertion Loss
(dB)
In-Out
0.33
0.35
0.37
0.39
0.46
0.53
0.60
0.64
0.69
0.73
Coupling
(dB)
In-Cpl
20.04
19.95
19.87
19.81
19.73
19.74
19.82
19.90
19.99
20.11
Directivity
(dB)
In
24.78
26.10
27.15
27.62
28.22
28.44
26.05
25.11
24.05
21.74
24.68
26.07
27.09
26.98
24.33
21.90
20.70
20.34
20.25
20.57
Return Loss
(dB)
Out
24.07
25.28
25.57
25.04
22.51
20.25
18.83
18.32
17.90
17.76
Cpl
20.57
20.84
21.21
21.54
22.23
23.28
24.03
24.40
24.43
24.12
Outline Dimensions (
inch
)
mm
A
B
C
2.00
1.25
.75
50.80 31.75 19.05
J
.44
11.18
K
.38
9.65
D
E
.17 1.656
4.32 42.06
wt.
grams
57
F
.15
3.81
G
H
.140
.63
3.56 16.00
1.20
1.00
0.80
0.60
0.40
0.20
0.00
at RF level of -10 dBm
ZNDC-20-2G
INSERTION LOSS
35
COUPLING & DIRECTIVITY (dB)
30
25
20
15
10
5
0
800
1000
ZNDC-20-2G
COUPLING & DIRECTIVITY
45
40
RETURN LOSS (dB)
35
30
25
20
15
10
5
0
2000
at RF level of -10 dBm
ZNDC-20-2G
RETURN LOSS
INSERTION LOSS (dB)
CPL
1200
1400
1600
FREQUENCY (MHz)
DIRECT
1800
RL-IN
800
1000
RL-OUT
RL-CPL
2000
800
1000
1200
1400
1600
1800
2000
FREQUENCY (MHz)
1200
1400
1600
FREQUENCY (MHz)
1800
