ZN409 Datasheet

  • ZN409

  • PRECISION SERVO INTEGRATED CIRCUIT

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DS3894 - 2.0
ZN409CE
PRECISION SERVO INTEGRATED CIRCUIT
The ZN409CE is a precision monolithic integrated circuit
designed particularly for pulse-width position servo mecha-
nisms used in all types of control applications. The low
number of components required with the ZN409CE, together
with its low power consumption, make this integrated circuit
ideal for use in model aircraft, boats and cars where space,
weight and battery life are at a premium. The amplifier will
operate over a wide range of repitition rates and pulse widths
and is therefore suitable for the majority of systems. The
ZN409CE can also be used in motor speed control circuits.
FEATURES
s
s
s
s
s
s
s
s
s
s
Low External Component Count
Low Quiescent Current (7mA Typical at 4.8V)
Excellent Voltage and Temperature Stability
High Output Drive Capability
Consistent and Repeatable Performance
PrecisionInternal Voltage Stabilisation
Time Shared Error Pulse Expansion
Balanced Deadband Control
Schmitt Trigger Input Shaping
Reversing Relay Output (DC Motor Speed Control)

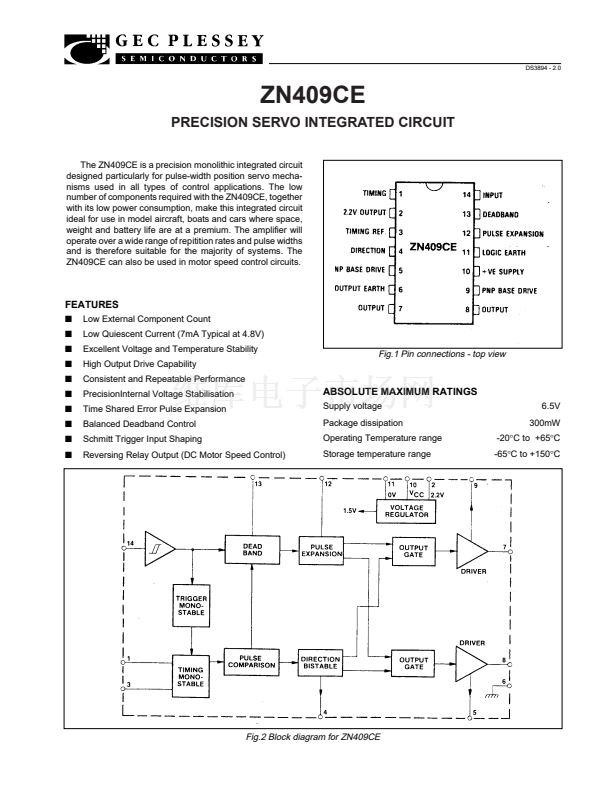

Fig.1 Pin connections - top view
ABSOLUTE MAXIMUM RATINGS
Supply voltage
Package dissipation
Operating Temperature range
Storage temperature range
6.5V
300mW
-20擄C to +65擄C
-65擄C to +150擄C
Fig.2 Block diagram for ZN409CE
