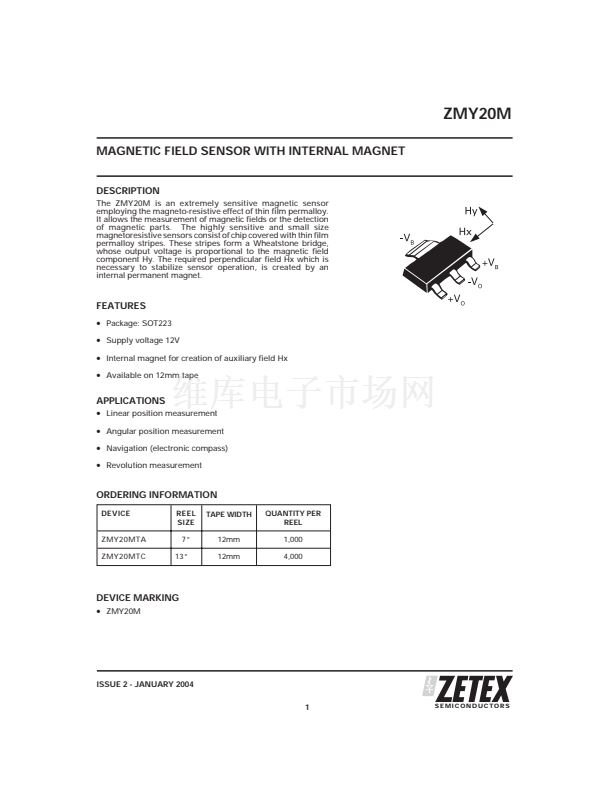

ZMY20M
MAGNETIC FIELD SENSOR WITH INTERNAL MAGNET
DESCRIPTION
The ZMY20M is an extremely sensitive magnetic sensor
employing the magneto-resistive effect of thin film permalloy.
It allows the measurement of magnetic fields or the detection
of magnetic parts. The highly sensitive and small size
magnetoresistive sensors consist of chip covered with thin film

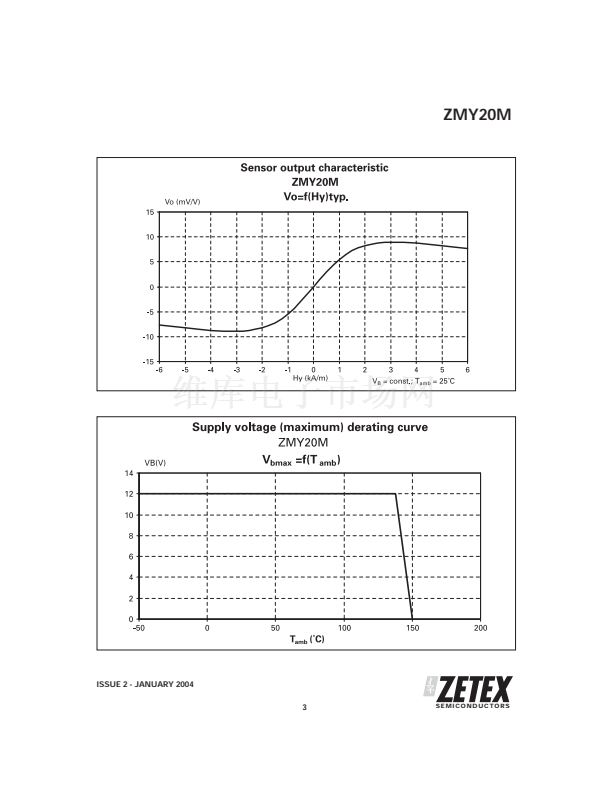

permalloy stripes. These stripes form a Wheatstone bridge,
whose output voltage is proportional to the magnetic field
component Hy. The required perpendicular field Hx which is
necessary to stabilize sensor operation, is created by an
internal permanent magnet.
FEATURES
鈥?/div>

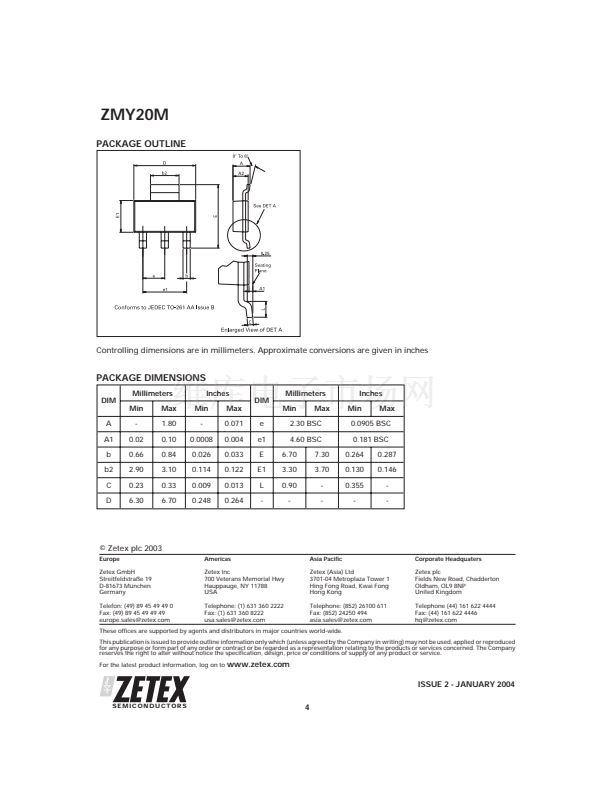

Package: SOT223
鈥?/div>

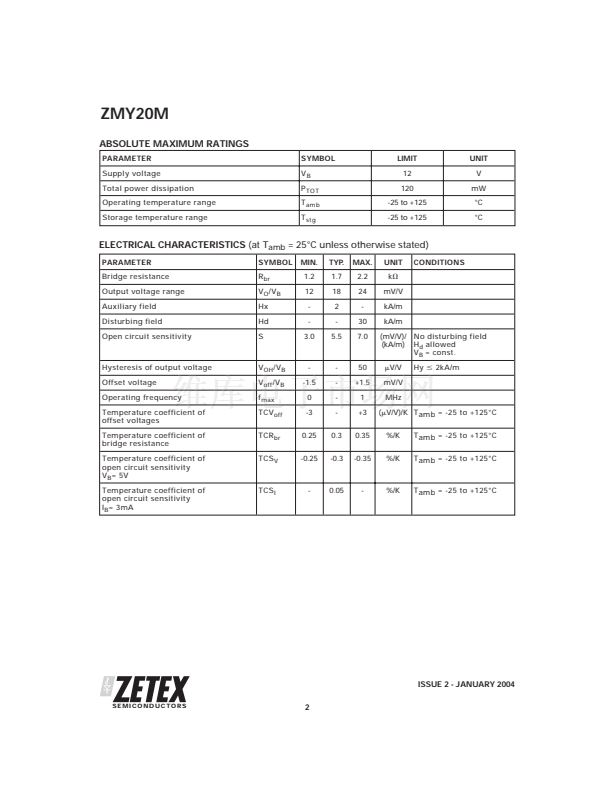

Supply voltage 12V
鈥?/div>
Internal magnet for creation of auxiliary field Hx
鈥?/div>
Available on 12mm tape
APPLICATIONS
鈥?/div>
Linear position measurement
鈥?/div>
Angular position measurement
鈥?/div>
Navigation (electronic compass)
鈥?/div>
Revolution measurement
ORDERING INFORMATION
DEVICE
REEL
SIZE
7鈥?/div>
13鈥?/div>
TAPE WIDTH
12mm
12mm
QUANTITY PER
REEL
1,000
4,000
ZMY20MTA
ZMY20MTC
DEVICE MARKING
鈥?/div>
ZMY20M
ISSUE 2 - JANUARY 2004
1
