ZMR500FTA Datasheet

  • ZMR500FTA

  • IC-SM VOLTAGE REGULATOR+5V

  • 5頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

FIXED 2.5 AND 5 VOLT
MINATURE VOLTAGE REGULATORS
ISSUE 2- OCTOBER 1995
DEVICE DESCRIPTION
The ZMR250 and 500 three terminal fixed
positive voltage regulators feature internel
current limit and will shut down under thermal
overload conditions
making the devices
almost impossible to destroy.
The circuit design offers an exceptionally small
quiescent current, only 30@4 for the 2.5 volt
device, ideal for low power applications. The
initial devices in the series regulate to 2.5 or 5
volts with a drive capability up to 50mA,
however, the flexible design will allow other
voltage selections to be made.
The device was designed with space saving in
mind and so is available in the small outline
SOT23 package. This tiny package is ideal for
applications where space is restricted. The
device is also available in the through hole
T092 package.
I_a!!al
FEATURES
.
Small outline SOT23 package
q
q
q
q
q
T092 package
2.5V and 5V
Output current up to 50mA
Very low Quiesent current (30pA)
Uncond~ionally stable
Other output voltages possible
Internal short circuit current Iimit
.
.
VOLTAGE RANGE
ZMR250
ZMR500
2.5V
5V
Contact Zetex Marketing
other voltages
for availabiiii
of
SCHEMATIC DIAGRAM
CONNECTION TABLE
Pin
1
B
1
G
nd
In
In
2
3
out
F
Pack
c
m
SOT223
T092
G
nd
out
see Diagrams Page 2-5

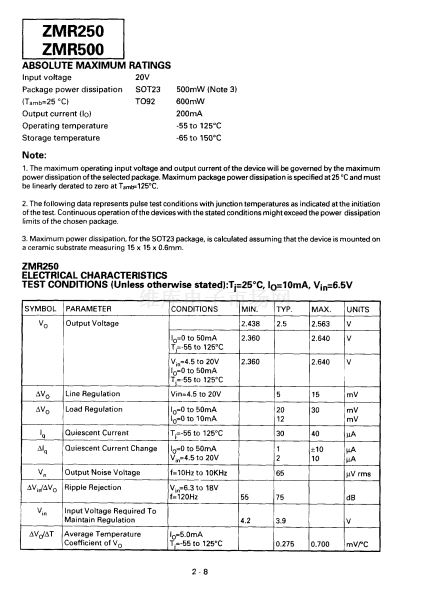

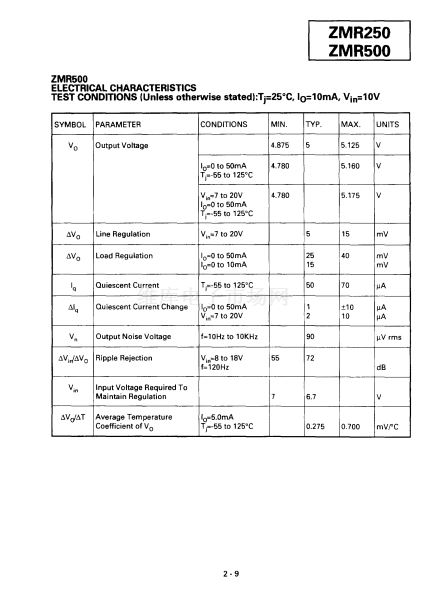

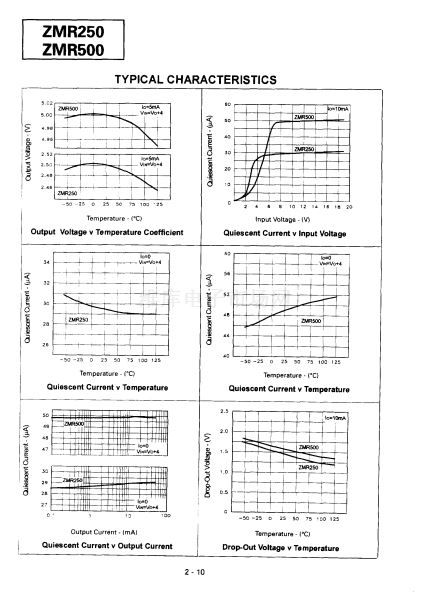

2-7

ZMR500FTA 產品屬性

  • 1

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 線性

  • -

  • 正，固定式

  • 5V

  • 7 V ~ 25 V

  • -

  • 1

  • 50mA

  • -55°C ~ 125°C

  • 表面貼裝

  • TO-236-3，SC-59，SOT-23-3

  • SOT-23-3

  • Digi-Reel®

  • ZMR500FDKR
