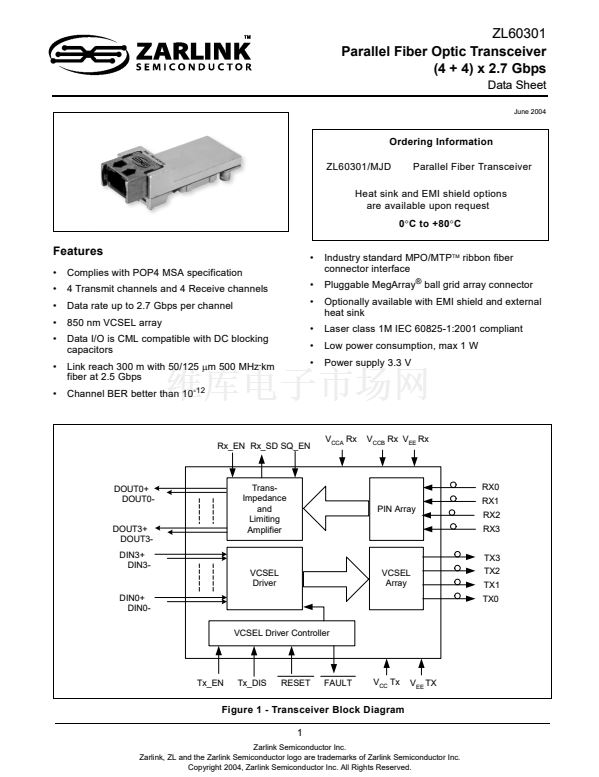

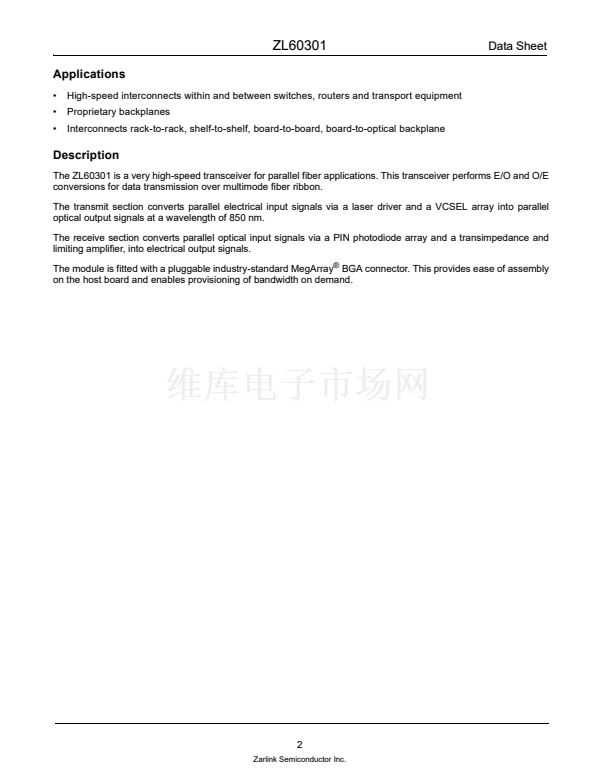

ZL60301

Parallel Fiber Optic Transceiver

(4 + 4) x 2.7 Gbps

Data Sheet

June 2004

Ordering Information

ZL60301/MJD

Parallel Fiber Transceiver

Heat sink and EMI shield options

are available upon request

0擄C to +80擄C

Features

鈥?/div>

Complies with POP4 MSA specification

4 Transmit channels and 4 Receive channels

Data rate up to 2.7 Gbps per channel

850 nm VCSEL array

Data I/O is CML compatible with DC blocking

capacitors

Link reach 300 m with 50/125

碌m

500 MHz

fiber at 2.5 Gbps

Channel BER better than 10

-12

鈥?/div>

Industry standard MPO/MTP錚?ribbon fiber

connector interface

Pluggable MegArray

廬

ball grid array connector

Optionally available with EMI shield and external

heat sink

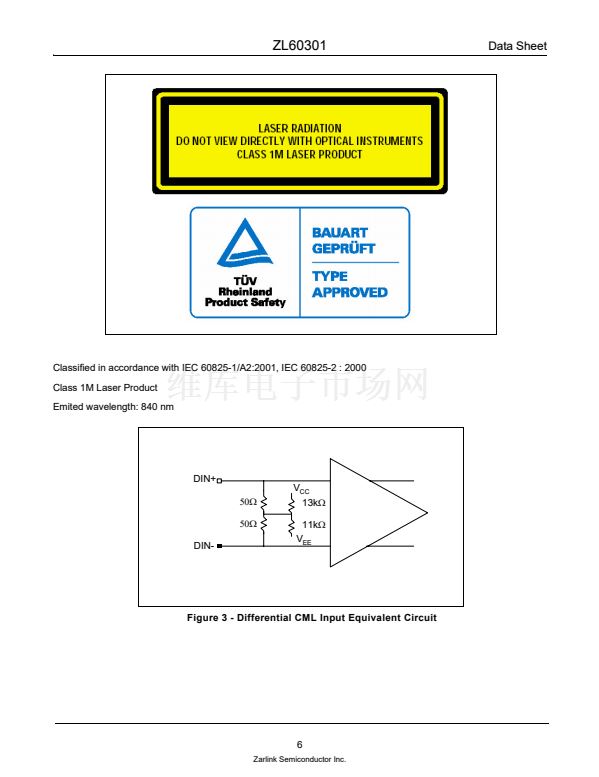

Laser class 1M IEC 60825-1:2001 compliant

Low power consumption, max 1 W

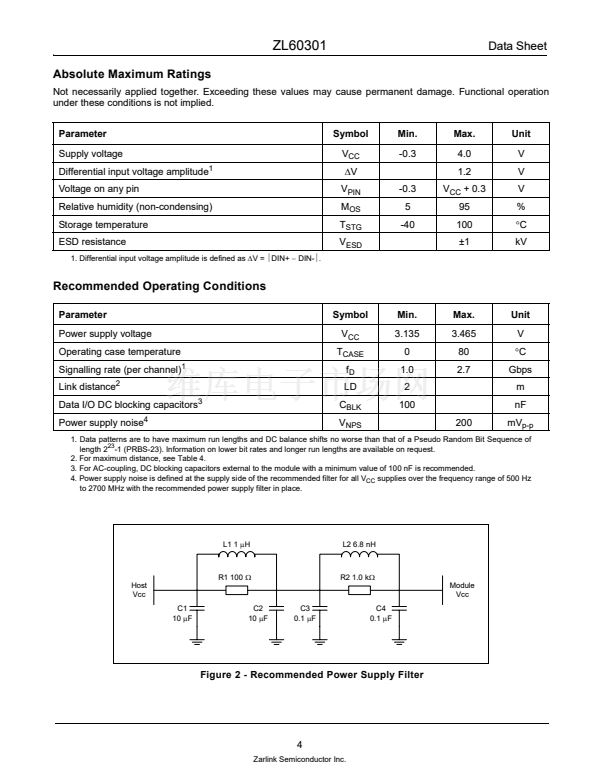

Power supply 3.3 V

Rx_EN Rx_SD SQ_EN

CCA

CCB

Rx V

DOUT0+

DOUT0-

DOUT3+

DOUT3-

DIN3+

DIN3-

Trans-

Impedance

and

Limiting

Amplifier

RX0

PIN Array

RX1

RX2

RX3

TX3

TX2

TX1

TX0

VCSEL

Driver

VCSEL

Array

DIN0+

DIN0-

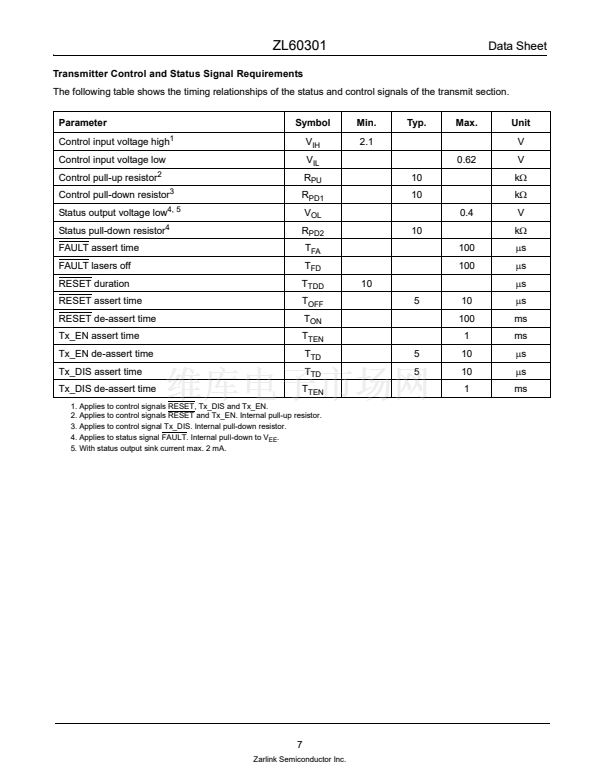

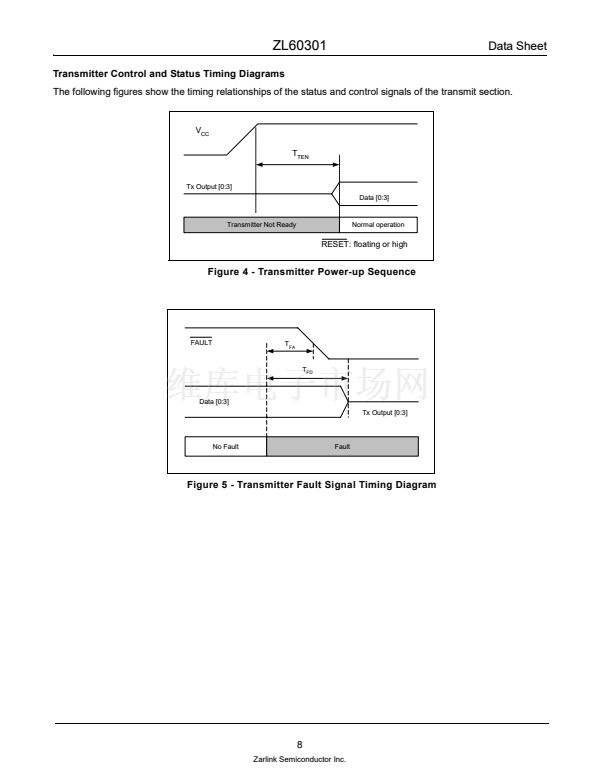

VCSEL Driver Controller

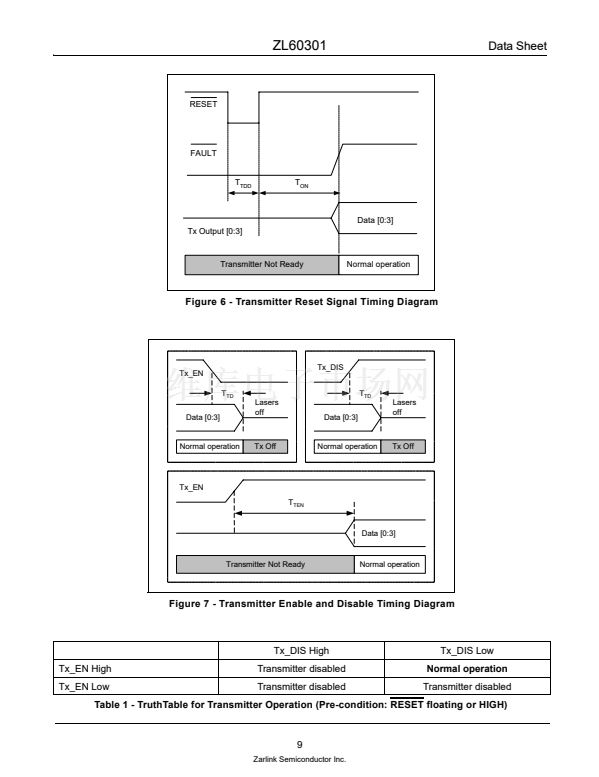

Tx_EN

Tx_DIS

RESET

FAULT

Figure 1 - Transceiver Block Diagram

Zarlink Semiconductor Inc.

Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
