ZL40815 Datasheet

  • ZL40815

  • 10GHz Fixed Modulus divide 4 Prescaler

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

ZL40815
10GHz Fixed Modulus
梅
4
Data Sheet
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Very High Operating Speed
Operation down to DC with Square Wave Input
Low Phase Noise (Typically better than -
150dBc/Hz at 1 kHz)
5V Single Supply Operation
Low Power Dissipation: 420mW (Typ)
Surface Mount Plastic Package With Exposed
Pad (See Application Notes)
Issue 1
November 2002
Ordering Information
ZL40815/DCE (tubes)
8 lead e-pad SOIC
ZL40815/DCF (tape and reel) 8 lead e-pad SOIC
-40擄C to +85擄C
Description
The ZL40815 is one of a range of 5V supply, very high
speed, low power prescalers for professional
applications with a fixed modulus of divide by 4. The
dividing elements are static D type flip flops, and
therefore, allow operation down to DC if the drive signal
is a pulse waveform with fast risetimes. The output
stage has internal 50 ohm pull up giving a 1V p-p
output. See application notes for more details
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
DC to 10 GHz PLL applications
HyperLan
LMDS
Instrumentation
Satellite Communications
Fibre Optic Communications; OC48, OC192
Ultra Low Jitter Clock Systems
VCC IN
1
VCC OUT
8
50R
7
6
OUTPUT
OUTPUT B
/4
400R
INPUT
INPUT B
2
3
4,5
GND
20mA
Figure 1 - Block Diagram

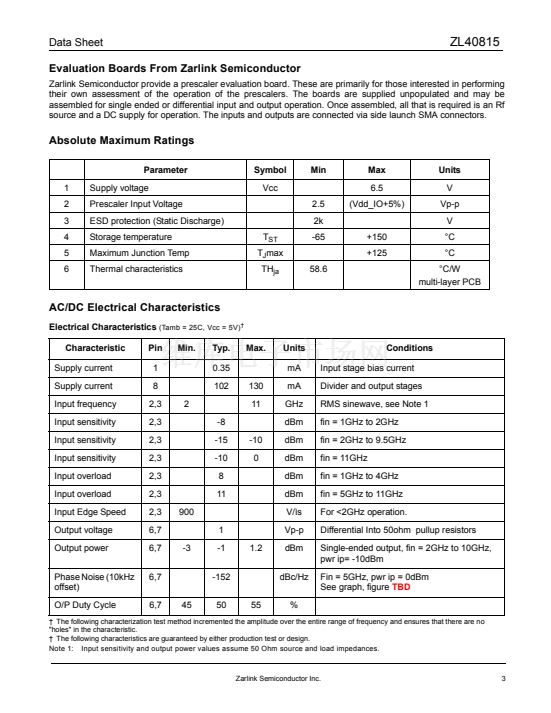

1
