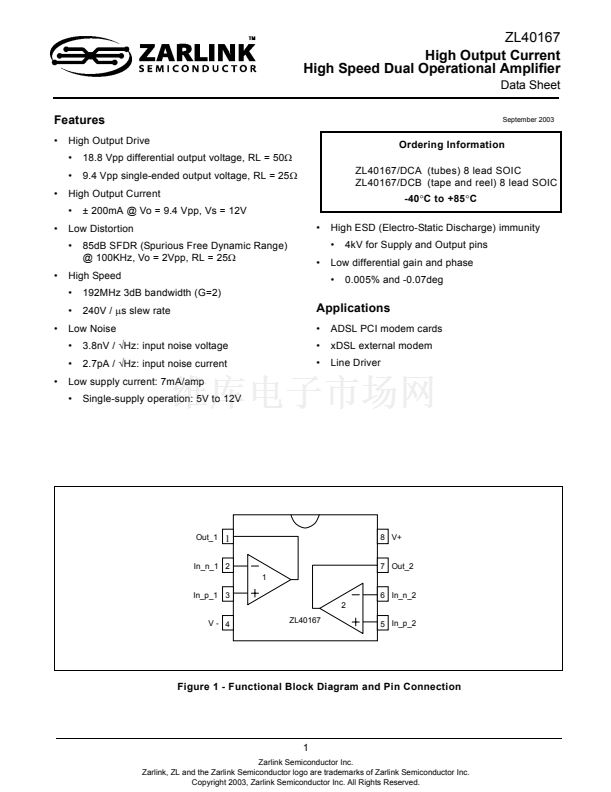

ZL40167

High Output Current

High Speed Dual Operational Amplifier

Data Sheet

Features

鈥?/div>

High Output Drive

鈥?/div>

18.8 Vpp differential output voltage, RL = 50鈩?/div>

9.4 Vpp single-ended output voltage, RL = 25鈩?/div>

鹵 200mA @ Vo = 9.4 Vpp, Vs = 12V

鈥?/div>

High ESD (Electro-Static Discharge) immunity

鈥?/div>

4kV for Supply and Output pins

0.005% and -0.07deg

Low differential gain and phase

85dB SFDR (Spurious Free Dynamic Range)

@ 100KHz, Vo = 2Vpp, RL = 25鈩?/div>

192MHz 3dB bandwidth (G=2)

240V /

碌s

slew rate

3.8nV /

鈭欻z:

input noise voltage

2.7pA /

鈭欻z:

input noise current

Single-supply operation: 5V to 12V

ZL40167/DCA (tubes) 8 lead SOIC

ZL40167/DCB (tape and reel) 8 lead SOIC

-40擄C to +85擄C

September 2003

Ordering Information

High Output Current

Low Distortion

High Speed

鈥?/div>

Applications

鈥?/div>

ADSL PCI modem cards

xDSL external modem

Line Driver

鈥?/div>

Low Noise

鈥?/div>

Low supply current: 7mA/amp

鈥?/div>

Out_1

8 V+

7 Out_2

6 In_n_2

ZL40167

5 In_p_2

In_n_1 2

In_p_1 3

V- 4

Figure 1 - Functional Block Diagram and Pin Connection
