SM-8 BIPOLAR TRANSISTOR H-BRIDGE

ZHB6792

PRELIMINARY DATA SHEET ISSUE A MAY 1998

FEATURES

* Compact package

* Low on state losses

* Low drive requirements

* Operates up to 70V supply

* 1 Amp continuous rating

PARTMARKING DETAIL 鈥?ZHB6792

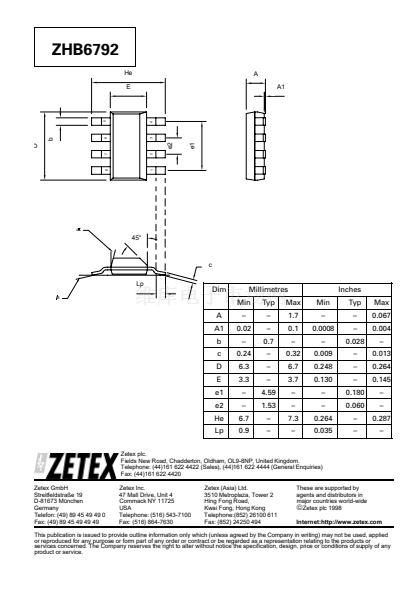

SM-8

(8 LEAD SOT223)

ABSOLUTE MAXIMUM RATINGS.

PARAMETER

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Peak Pulse Current

Continuous Collector Current

SYMBOL

V

CBO

V

CEO

V

EBO

I

CM

I

C

NPNs

70

70

5

2

1

PNPs

-70

-70

-5

-2

-1

UNIT

V

V

V

A

A

擄C

Operating and Storage Temperature Range T

j

:T

stg

-55 to +150

SCHEMATIC DIAGRAM

E1, E4

CONNECTION DIAGRAM

C

1,

C

2

B1

Q1

Q4

B4

B

1

B

2

E

2

,E

3

B

3

5

E

1

,E

4

C

3

,C

4

6

7

C1, C2

C3, C4

B2

Q2

Q3

B3

B

4

E2, E3

8

1

2

3

4
