Architectures
s
GENERAL DESCRIPTION
The Z8S180 Emulator (Z8S180000ZEM) provides the
hardware, software, and documentation necessary to
evaluate, design, and begin development using the Z8S180
Microprocessor Unit (MPU).
The purpose of the Z8S180 Emulator is to provide a
learning environment for students of the Z80 and Z180
architectures and also to provide a cost-effective emulator
for Z8S180-design related activities.
The kit includes a monitor program (in EPROM) that can be
used with a dumb terminal and a software program (TZ.EXE)
that provides terminal emulation facilities for a PC. The
monitor program provides useful capabilities including
downloading and running programs with or without
breakpoints, displaying and filling memory locations,
comparing contents of memory and reading/writing from
the I/O ports. A board schematic is also included.
The Z8S180 emulator is engineered to provide the best
balance between reasonable cost and useful features to
shorten development time for products using the Z8S180.
The Z8S180 emulator, based on the Z8S180 MPU, provides
an excellent environment for hardware and software
development.
SPECIFICATIONS
Operating Conditions
Operating Temperature: 20擄C,
鹵10擄C
Operating Humidity: 10-90% RH (Non-Condensing)
Oscillator Frequency: 18.432 MHz
Supply Voltage: +5 VDC
鹵
5%
Supply Current: Less than 1A
Serial Interface
RS-232C (EIA 232)
(Data Rates: 1,200 to 57,600 Bits/sec.)
Minimum Hardware Requirements
Power Requirements
Dumb Terminal and Power Supply (or)
386-Based Machine at 20 MHz and Power Supply
VGA Video Adapter
4 MB RAM
Hard Disk Drive (1 MB Free Space)
High-Density (HD) Floppy Disk Drive (3.5-Inch)
Dimensions
Width:
Length:
4.2 in.
4.2 in.
Minimum Software Requirements
MS-DOS V5.0

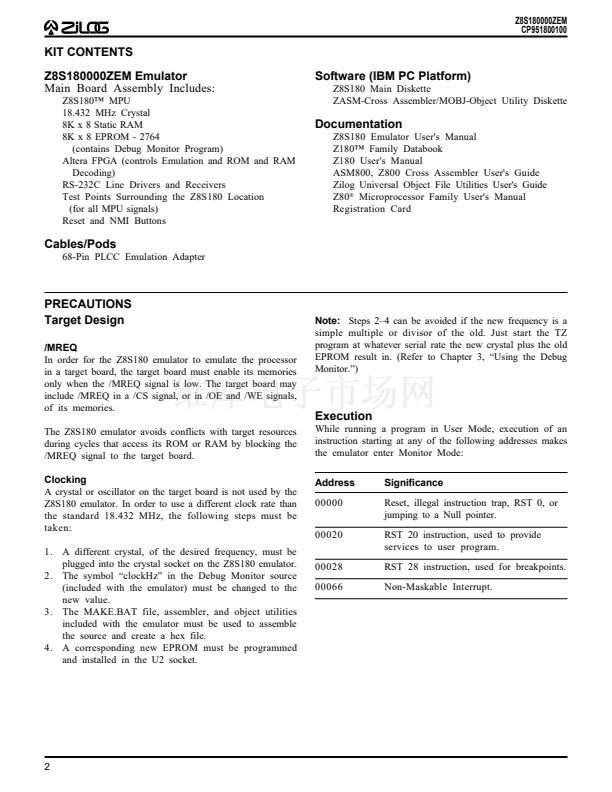

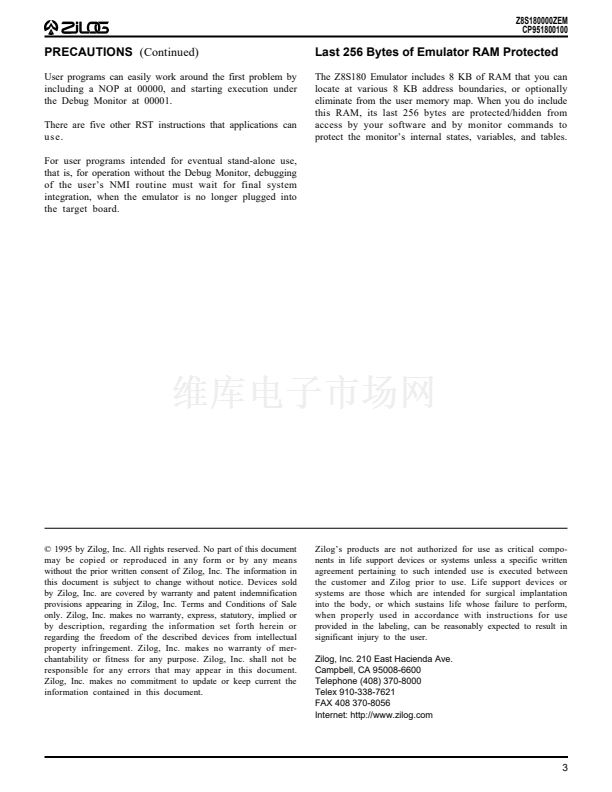

CP951800101 (10/95)
