Z86K16 Datasheet

  • Z86K16

  • CMOS Z8 8-Bit MCU Keyboard Controllers

  • 24頁

  • ZILOG   ZILOG

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

P
RELIMINARY
C
USTOMER
P
ROCUREMENT
S
PECIFICATION
1
Z86K13/K14/K15
K16/K17/K18
CMOS Z8
廬
8-B
IT
MCU
K
EYBOARD
C
ONTROLLERS
FEATURES
Device
Z86K13
Z86K14
Z86K15
Z86K16
Z86K17
Z86K18
ROM
(KB)
2
3
4
2
3
4
I/O
Lines
32
32
32
32
32
32
Speed
(MHz)
4-5
4-5
4-5
4-5
4-5
4-5
Pin Count/
Package
40-DIP, 44-PLCC,
44-QFP, COB
40-DIP, 44-PLCC,
44-QFP, COB
40-DIP, 44-PLCC,
44-QFP, COB
40-DIP, 44-PLCC,
44-QFP, COB
40-DIP, 44-PLCC,
44-QFP, COB
40-DIP, 44-PLCC,
44-QFP, COB
s
s
1
Low-Power Consumption: 60 mW @ 5 MHz
Five Vectored, Priority Interrupts from FIve Different
Sources

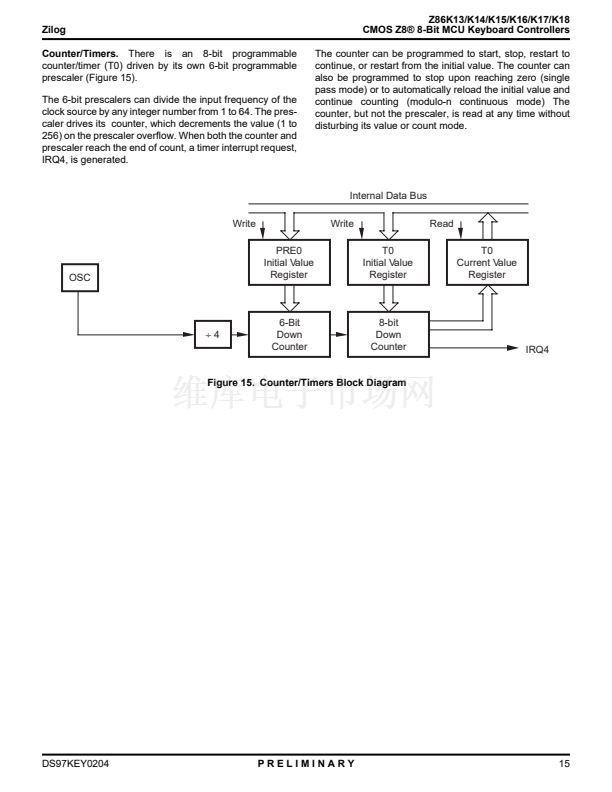

A Programmable 8-Bit Counter/Timer, with 6-Bit
Programmable Prescaler
Power-On-Reset (POR) Timer, Hardware Watch-Dog
Timer (WDT)
Digital Inputs CMOS Levels with Internal Pull-Up
Resistors
Four Direct Connect LED Drive Ports
On-Chip RC Oscillator (Z86K13/14/15)
On-Chip Oscillator that Accepts a Crystal, Ceramic
Resonator, LC, or External Clock Drive (Z86K16/17/18)
Low System EMI Emission
s
s
s
s
s
s
s
s
s
4.5V to 5.5 V Operating Range
0
擄
C to +70
擄
C Operating Temperature Range
188 Bytes of Ram
s

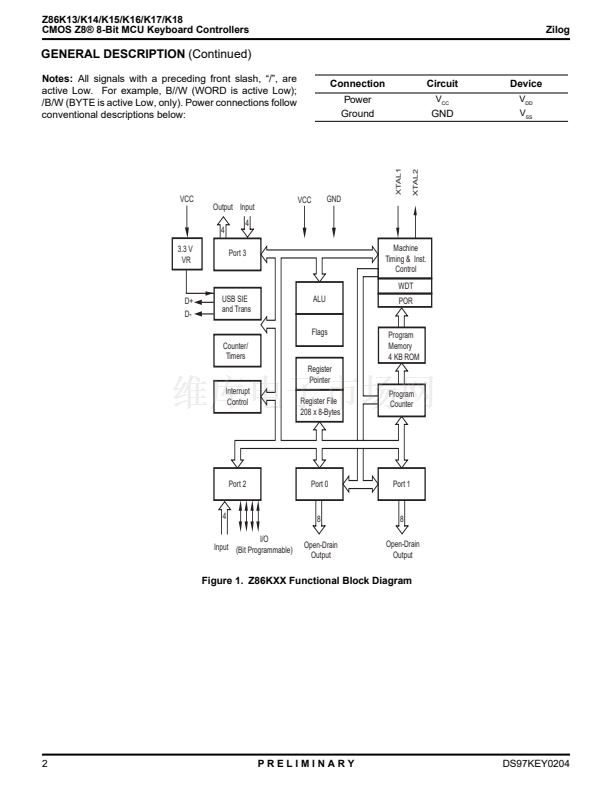

GENERAL DESCRIPTION
The Z86KXX Keyboard Controllers are full-featured mem-
bers of the Z8
廬
MCU family offering a unique register-to-
register architecture that avoids accumulator bottlenecks
and is more code efficient than RISC processors.
For keyboard applications demanding powerful I/O capa-
bilities, the Z86KXX provides 32 pins dedicated to input
and output for row, column, clock, data, and LEDs.
The on-chip counter/timer is available to relieve the system
of administering real-time tasks.

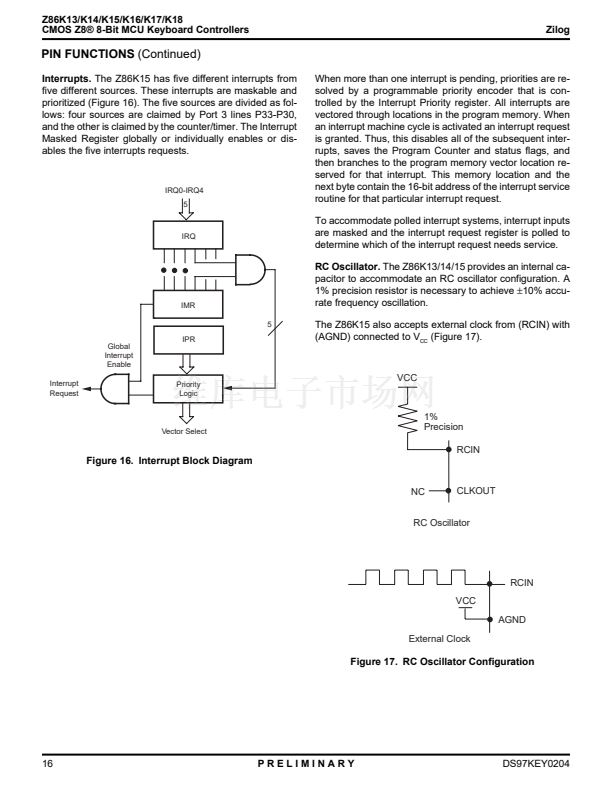

Five different internal or external interrupt sources are
maskable and prioritized in which a vectored address is
provided for efficient interrupt subroutine handling and
multitasking functions.
The Z86K15 achieves low EMI by means of several modi-
fications in the output drivers and clock circuitry of the de-
vice.
DS97KEY0204
PRELIMINARY
1
