Z86250 Datasheet

  • Z86250

  • STARSIGHT DATABASEENGINE

  • 204.32KB

  • 9頁

  • ZILOG   ZILOG

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

Z86250
CP96TEL0302
C
USTOMER
P
ROCUREMENT
S
PECIFICATION
Z86250
STARSIGHTDATABASEENGINE
FEATURES
s
Part
Z86250
Package
84-Pin PLCC
Speed (MHz)
24
s
s
Infrared Receiver Logic
CRC-32 Encoding and Decoding Logic
Watch-Dog Timer (WDT) for Error Recovery
Serial I.M. and I
2
C Compatible Bus for External
Communication
Test Multiplexer for Chip Debug
s
s
s
s
4.3- to 5.5-Volt Operating Range
s
0擄C to +70擄C Temperature Range
s
Low-Power Consumption
Segmented Base Registers
s

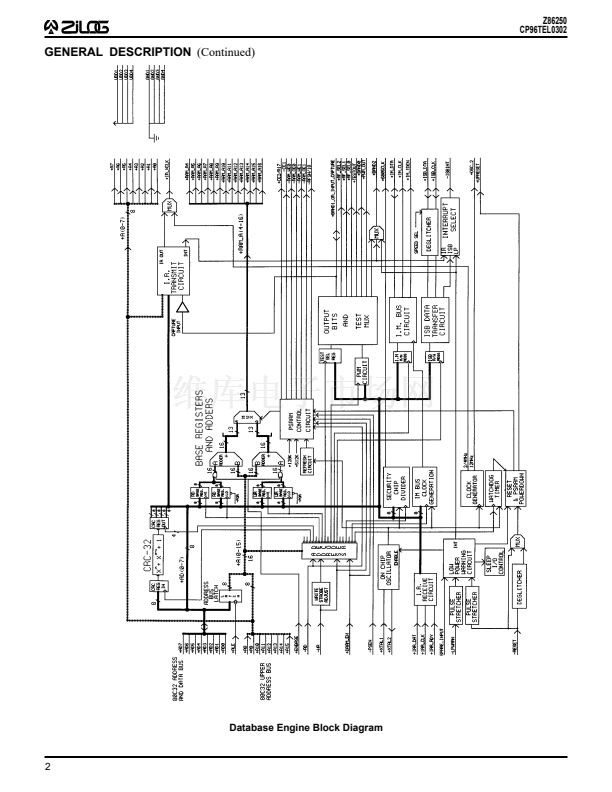

GENERAL DESCRIPTION
Zilog's Z86250 StarSight Data Base Engine (DBE) is
designed to process extracted data for the StarSight
on-screen programming guide. The device is logically
equivalent to the DBE1200 for StarSight applications.
The Z86250 provides a number of important peripheral
functions, such as the IR Blaster to send command signals
to the VCR, and low-power management to avoid loss of
data.
For fast memory data manipulation, the Z86250 offers
segmented base registers. The device also features
PSRAM memory control and refresh logic.
The DBE is optimized to work with Zilog's Z89300 series of
TV controller devices to provide a cost-effective solution
for StarSight programming-guide data extraction and
display.
Notes:
All Signals with a preceding front slash, "/", are active Low, e.g.:
B//W (WORD is active Low); /B/W (BYTE is active Low, only).
Power connections follow conventional descriptions below:
Connection
Power
Ground
Circuit
V
CC
GND
Device
V
DD
V
SS
CP96TEL0302 (2/96)
1
