Z86160 Datasheet

  • Z86160

  • SET-TOP CONTROLLER

  • 53.58KB

  • 8頁

  • ZILOG   ZILOG

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

P R E L I M I N A R Y
Z86160
CP96TEL1700
P
RELIMINARY
C
USTOMER
P
RODUCT
S
PECIFICATION
Z86160
S
ET
-T
OP
C
ONTROLLER
FEATURES
ROM
RAM*
Kbytes Bytes
32
768
Package
Speed Information
16
100-Pin QFP
n
n
n
n
n
n
0擄C to +70擄C Temperature Range
512 Bytes Battery Backed-Up (BBU) Secure RAM
Keypad Buffer
LED Controller
Two Comparators
Two On-Chip Counter/Timers
Part
Z86160
*General-Purpose
n
n
n
3.0- to 5.5-Volt Operating Range
Low-Power Consumption
Custom Input/Output Lines
GENERAL DESCRIPTION
The Z86160 is a member of the Z8
廬
single-chip
microcontroller family offering a unique architecture that is
characterized by Zilog's 8-bit microcontroller core.
This CMOS microcontroller features fast execution,
efficient use of memory, sophisticated interrupts, input/
output bit manipulation capabilities, and easy hardware/
software system expansion along with low-cost and
low-power consumption.
For applications demanding powerful I/O capabilities, the
Z86160 fulfills this with custom I/O, specifically tailored to
meet the needs of set-top requirements.
Four basic address spaces, the Program Memory, Data
Memory, 236 General-Purpose Registers, and 512 bytes
of protected RAM, support a wide range of memory
configurations. The protected RAM is mapped into data
memory.
To unburden the program from coping with real-time
problems such as counting/timing, and serial data com-
munications, the Z86160 offers two on-chip counter/timers
with a large number of user selectable modes, and an

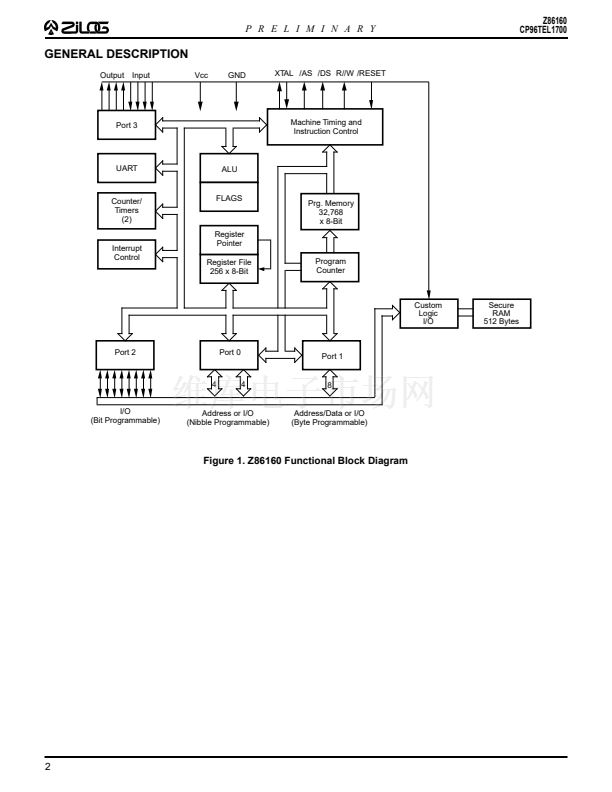

asynchronous receiver/transmitter (UART) (see Block
Diagram).
Notes:
All Signals with a preceding front slash, "/", are active Low, e.g.,
B//W (WORD is active Low); /B/W (BYTE is active Low, only).
Power connections follow conventional descriptions below:
Connection
Power
Ground
Circuit
V
CC
GND
Device
V
DD
V
SS
CP96TEL1700
(3/96)
1
