Z16C3010VSC Datasheet

  • Z16C3010VSC

  • COMMUNICATIONS CONTROLLER

  • 86頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

P
RODUCT
S
PECIFICATION
<%
('#674'5
%/15 75% 7
0+8'45#.
5
'4+#.
%
10641..'4
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Two Independent 0-to-10-mbps Full-Duplex Channels,
each with Two Baud Rate Generators and One Digital
Phase-Locked Loop for Clock Recovery
32-Byte Data FIFO鈥檚 for each Receiver and Transmitter
110-ns Bus Cycle Time, 16-Bit Data Bus Bandwidth
Multi-Protocol Operation under Program Control with
Independent Mode Selection for Receiver and Transmit-
ter
Async Mode with 1 to 8 Bits/Character, 1/16 to 2 Stop
Bits/Character in 1/16-Bit Increments; Programmable
Clock Factor; Break Detect and Generation; Odd, Even,
Mark, Space or no Parity and Framing Error Detection;
Supports One Address/Data Bit and MIL STD 1553B
Protocols
Byte Oriented Synchronous Mode with One to Eight
Bits/Character; Programmable Idle Line Condition; Op-
tional Receive Sync Stripping; Optional Preamble
Transmission; 16- or 32-Bit CRC and Transmit-to-Re-
ceive Slaving (for X.21)
Bisync Mode with 2- to 16-Bit Programmable Sync
Character; Programmable Idle Line Condition; Optional
Receive Sync Stripping; Optional Preamble Transmis-
sion; 16- or 32-Bit CRC
鈥?/div>
Transparent Bisync Mode with EBCDIC or ASCII Char-
acter Code; Automatic CRC Handling; Programmable
Idle Line Condition; Optional Preamble Transmission;
Automatic Recognition of DLE, SYN, SOH, ITX, ETX,
ETB, EOT, ENQ and ITB
External Character Sync Mode for Receive
HDLC/SDLC Mode with Eight-Bit Address Compare;
Extended Address Field Option; 16- or 32-Bit CRC; Pro-
grammable Idle Line Condition; Optional Preamble
Transmission and Loop Mode
DMA Interface with Separate Request and Acknowl-
edge for Each Receiver and Transmitter
Channel Load Command for DMA Controlled Initializa-
tion
Flexible Bus Interface for Direct Connection to Most
Microprocessors; User Programmable for 8 or 16 Bits
Wide. Directly Supports 680X0 Family or 8X86 Family
Bus Interfaces
Low Power CMOS
68-Pin PLCC/100-Pin VQFP Packages
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
)'0'4#. &'5%4+26+10

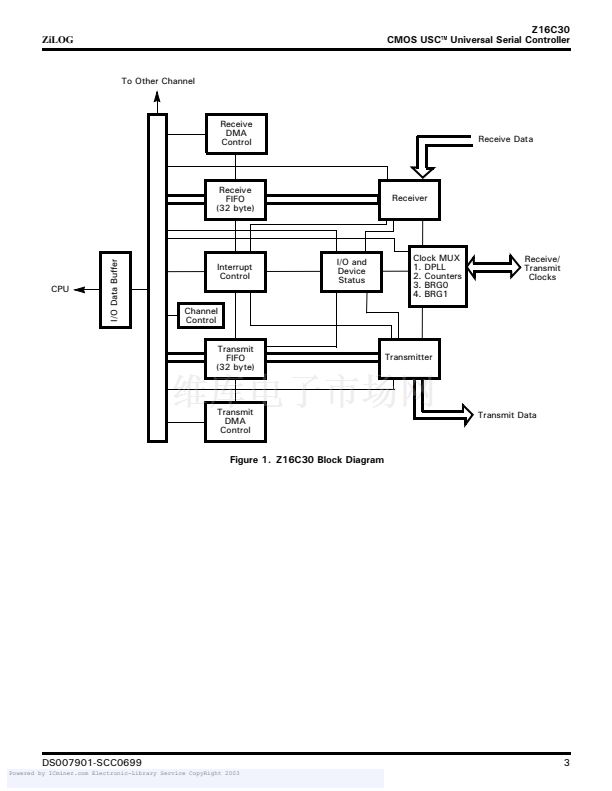

The Z16C30 USC鈩?Universal Serial Controller is a dual-
channel multi-protocol data communications peripheral de-
signed for use with any conventional multiplexed or non-
multiplexed bus. The USC functions as a serial-to-parallel,
parallel-to-serial converter/controller and may be software
configured to satisfy a wide variety of serial communica-
tions applications. The device contains a variety of new, so-
phisticated internal functions including two baud rate gen-
erators per channel, one digital phase-locked loop per
&55%%
Powered by ICminer.com Electronic-Library Service CopyRight 2003
channel, character counters for both receive and transmit in
each channel and 32-byte data FIFO鈥檚 for each receiver and
transmitter (Figure 1).

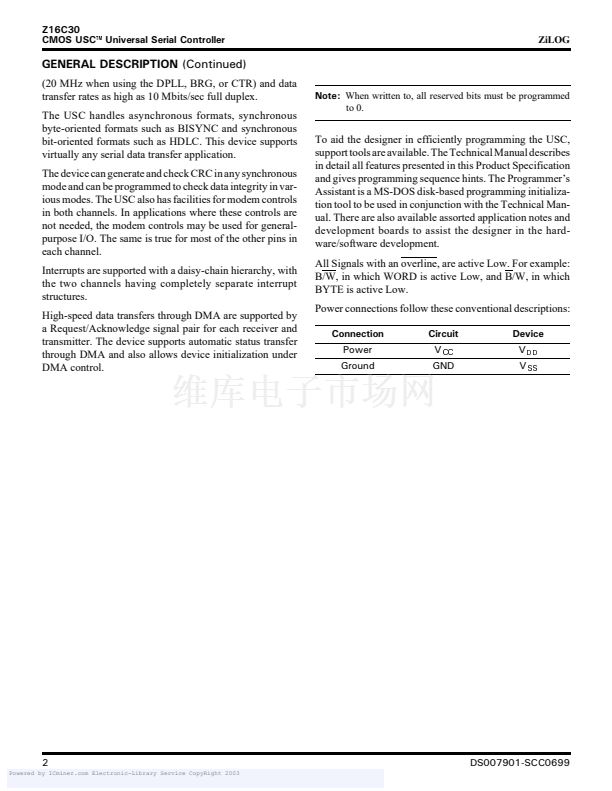

ZiLOG now offers a high speed version of the USC with
improved bus bandwidth. CPU bus accesses have been
shortened from 160 ns per access to 110 ns per access. The
USC has a transmit and receive clock range of up to 10 MHz


Z16C3010VSC 產品屬性

  • 20

  • 集成電路 (IC)

  • 接口 - 控制器

  • USC®

  • USC 控制器

  • DMA

  • 4.5 V ~ 5.5 V

  • 7mA

  • 0°C ~ 70°C

  • 表面貼裝

  • 68-LCC（J 形引線）

  • 68-PLCC

  • 管件
