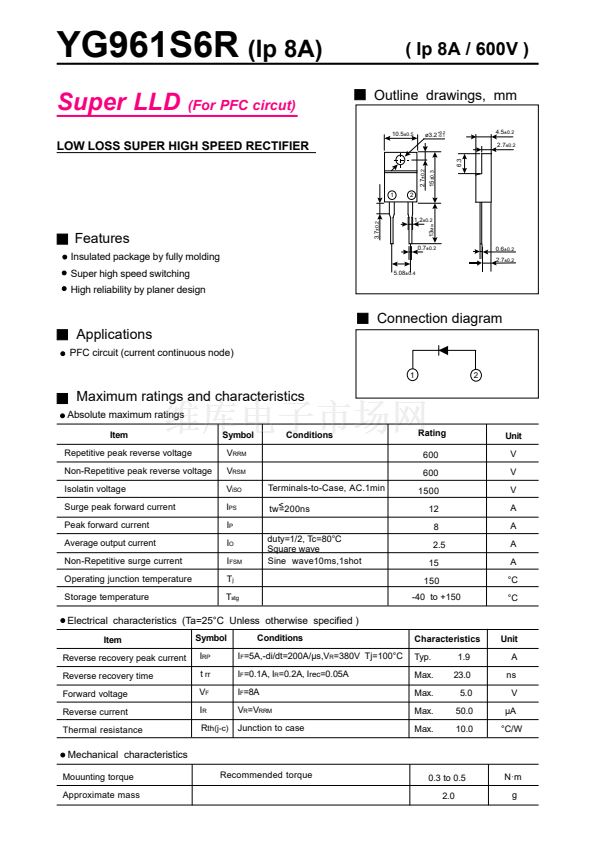

YG961S6R
(Ip 8A)
Super LLD
(For PFC circut)
LOW LOSS SUPER HIGH SPEED RECTIFIER
( Ip 8A / 600V )
Outline drawings, mm
10.5
鹵0.5
酶3.2
-0.1
+0.2
4.5
鹵0.2
2.7
鹵0.2
6.3
2.7
鹵0.2
1
2
3.7
鹵0.2
1.2
鹵0.2
13
Min
Features
Insulated package by fully molding
Super high speed switching
High reliability by planer design
0.7
鹵0.2
15
鹵0.3
0.6
鹵0.2
2.7
鹵0.2
5.08
鹵0.4
Connection diagram
Applications
PFC circuit (current continuous node)
1
2
Maximum ratings and characteristics
Absolute maximum ratings
Item
Repetitive peak reverse voltage
Non-Repetitive peak reverse voltage
Isolatin voltage
Surge peak forward current
Peak forward current
Average output current
Non-Repetitive surge current
Operating junction temperature
Storage temperature
Symbol
V
RRM
V
RSM
V
iSO
I
PS
I
P
I
O
I
FSM
T
j
T
stg
duty=1/2, Tc=80擄C
Square wave
Sine wave10ms,1shot
Terminals-to-Case, AC.1min
<
tw=200ns
Conditions
Rating
600
600
1500
12
8
2.5
15
150
-40 to +150
Unit
V
V
V
A
A
A
A
擄C
擄C
Electrical characteristics (Ta=25擄C Unless otherwise specified )
Item
Reverse recovery peak current
Reverse recovery time
Forward voltage
Reverse current
Thermal resistance
Symbol
I
RP
t
rr
V
F
I
R
R
th(j-c)
Conditions
I
F
=5A,-di/dt=200A/碌s,V
R
=380V Tj=100擄C
I
F
=0.1A, I
R
=0.2A, I
rec
=0.05A
I
F
=8A
V
R
=V
RRM
Junction to case
Characteristics
Typ.
Max.
Max.
Max.
Max.
1.9
23.0
5.0
50.0
10.0
Unit
A
ns
V
碌A(chǔ)
擄C/W
Mechanical characteristics
Mouunting torque
Approximate mass
Recommended torque
0.3 to 0.5
2.0
N路m
g
1
2
3
