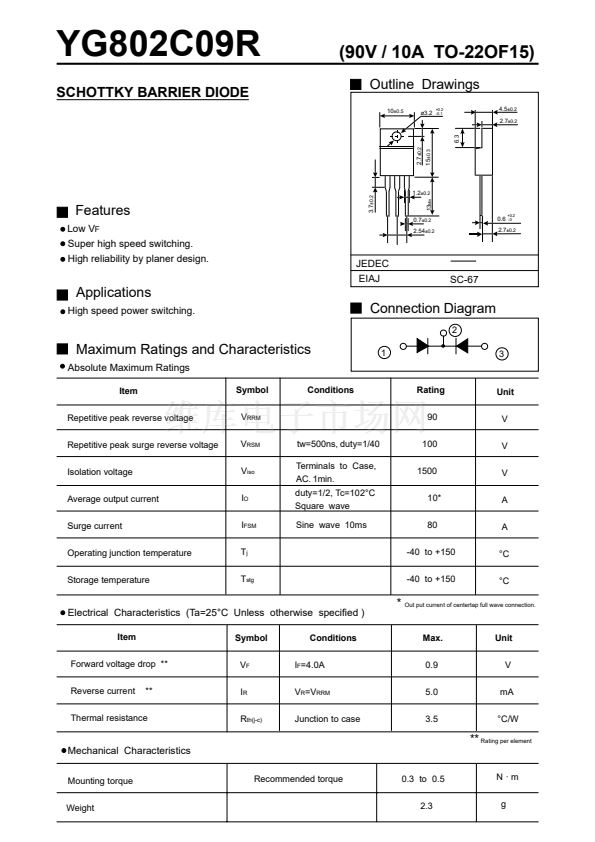

YG802C09R
SCHOTTKY BARRIER DIODE
(90V / 10A TO-22OF15)
Outline Drawings
10
鹵0.5
酶3.2
+0.2
-0.1
4.5
鹵0.2
2.7
鹵0.2
6.3
2.7
鹵0.2
3.7
鹵0.2
1.2
鹵0.2
13
Min
Features
Low V
F
Super high speed switching.
High reliability by planer design.
15
鹵0.3
0.7
鹵0.2
2.54
鹵0.2
0.6
+0.2
-0
2.7
鹵0.2
JEDEC
EIAJ
SC-67
Applications
High speed power switching.
Connection Diagram
2
1
3
Maximum Ratings and Characteristics
Absolute Maximum Ratings
Item
Repetitive peak reverse voltage
Repetitive peak surge reverse voltage
Isolation
voltage
Average output current
Surge
current
Operating junction temperature
Storage temperature
Symbol
V
RRM
V
RSM
V
iso
I
O
I
FSM
T
j
T
stg
tw=500ns, duty=1/40
Terminals to Case,
AC. 1min.
duty=1/2, Tc=102擄C
Square wave
Sine wave 10ms
Conditions
Rating
90
100
1500
10*
80
-40 to +150
-40 to +150
Unit
V
V
V
A
A
擄C
擄C
Electrical Characteristics (Ta=25擄C Unless otherwise specified )
Item
Forward voltage drop **
Reverse current
**
Symbol
V
F
I
R
R
th(j-c)
Conditions
I
F
=4.0A
V
R
=V
RRM
Junction to case
*
Out put current of centertap full wave connection.
Max.
0.9
5.0
3.5
Unit
V
mA
擄C/W
Thermal resistance
**
Rating per element
Mechanical Characteristics
Mounting torque
Weight
Recommended torque
0.3 to 0.5
2.3
N路m
g
1
2
3
